NV-Designer Configuration Section 3-3
3-3 NV-Designer Configuration
The display while creating base screens and the data save location can be
changed in the NV-Designer Configuration.

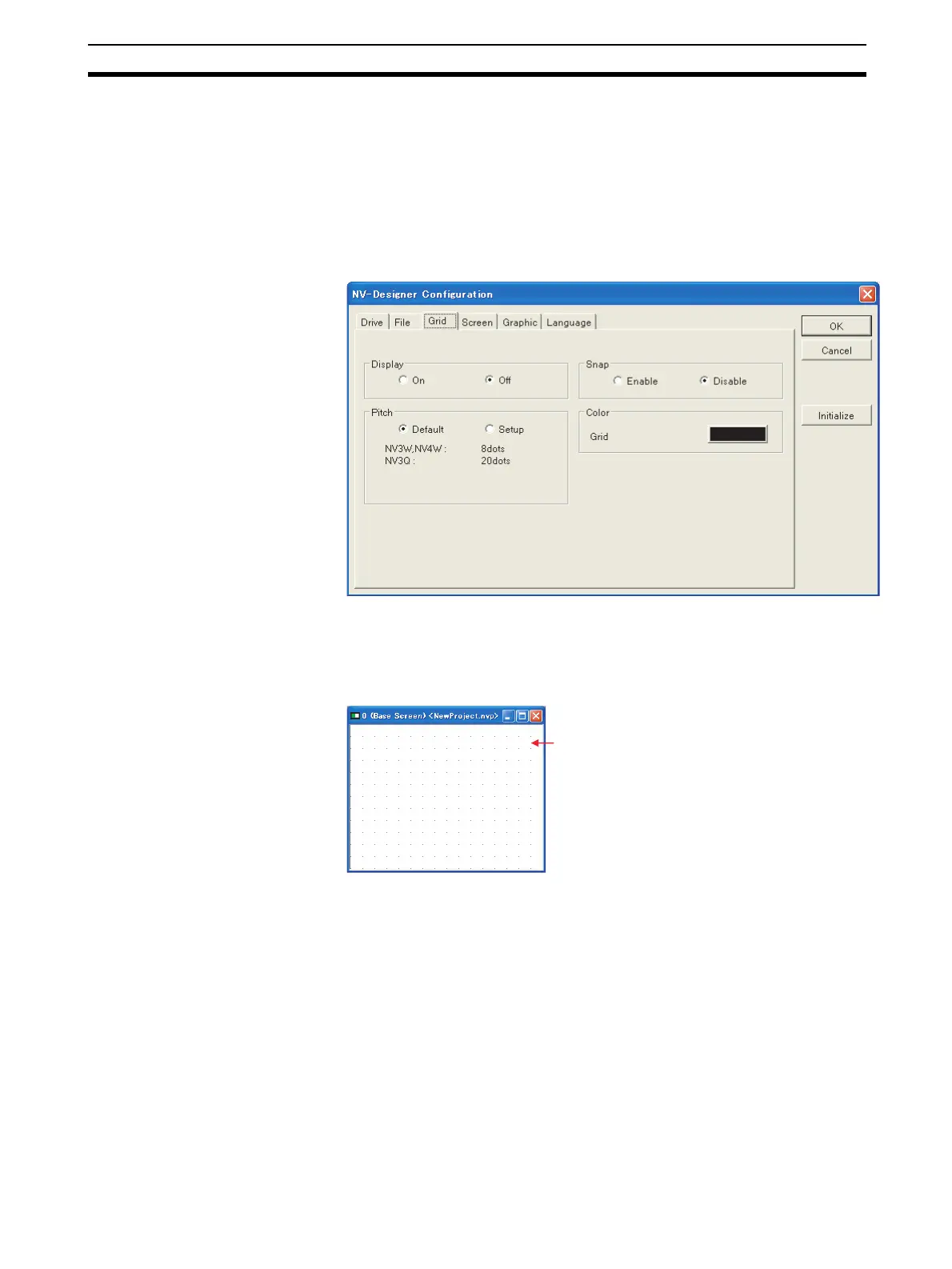

3-3-1 Customizing the Screen Creation Display
Grid Display and Setup
1,2,3... 1. Click the Grid Tab from the View Menu.
2. Select the On Option under Display.
3. Select the pitch, snap, and color as required and click the OK Button.
The grid will be displayed on the base screen as shown in the following fig-
ure.
Gri
