Level Meters Section 7-8
7-8 Level Meters
7-8-1 Default Settings of Level Meters
7-8-2 Displaying the Contents of a Word from the PLC Unit a Level
Meter

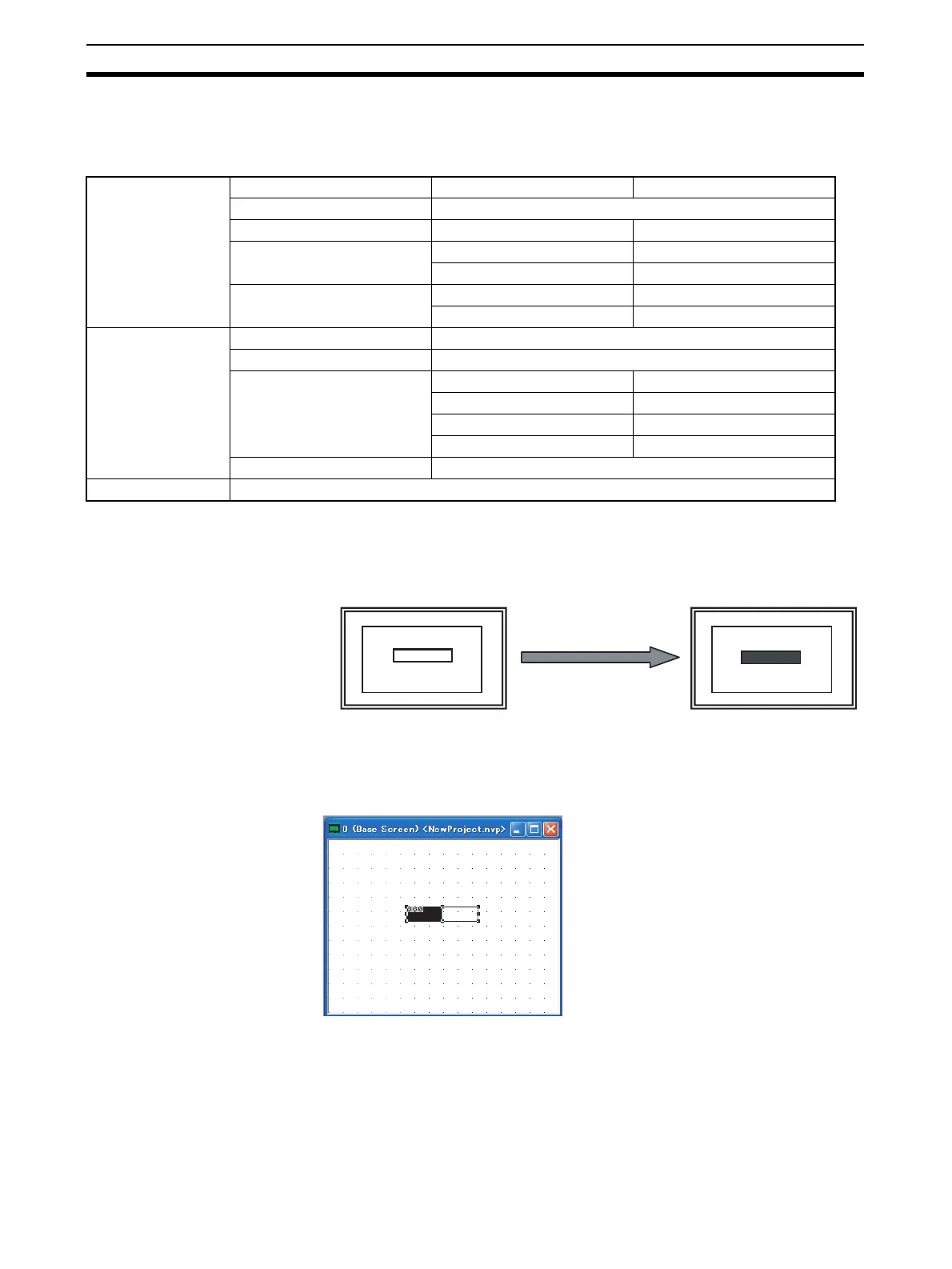

Creating a Sample Screen
1,2,3... 1. Open base screen 0 and position a level meters.
Basic Setup
Address Address D100
Data Format DEC 1W unsigned
Graph Type Direction Right
Max./Min. Max. Fixed (1 to 65,535)
Min. Fixed (1 to 65,535)
Reverse/Blink Normal Off
When Condition is True Off
Color and Form
Image Black/White
Display Frame On
Graph Design
Color Black
Background color White
Pattern White
Pattern Color White
Display Numeric Off
Operation Security Off
The contents of the specified
address is changed by the
PLC program.
0%
100%
The change in contents is
converted and displayed as a
percentage
Click "0" in the Screen Man-
ager, and then drag a level
meters from the standard
parts library and drop it on the
base screen.
To Next Page
