Project and Execution Files Section 5-7
5-7 Project and Execution Files
5-7-1 Projects
Projects include screen data and settings. With the NV-Designer, PT screen
data and the model settings are managed together as a project.
When the created project is saved, the project file (.nvp: the file that is related
to the NV-Designer and started to access the project) that is named at that
time and a project folder will be newly created under the specified folder when
the project is saved. Files with project settings will be created in the Project
Folder.
• Screen data is saved in base screen data files (.BSD). A separate file is
used for each screen.
• Setting files are created when the settings are saved.
5-7-2 Execution Files of the PT Model after Transfer
When projects are transferred to the PT or SD memory card from the NV-
Designer, they are converted to the following PT execution files.

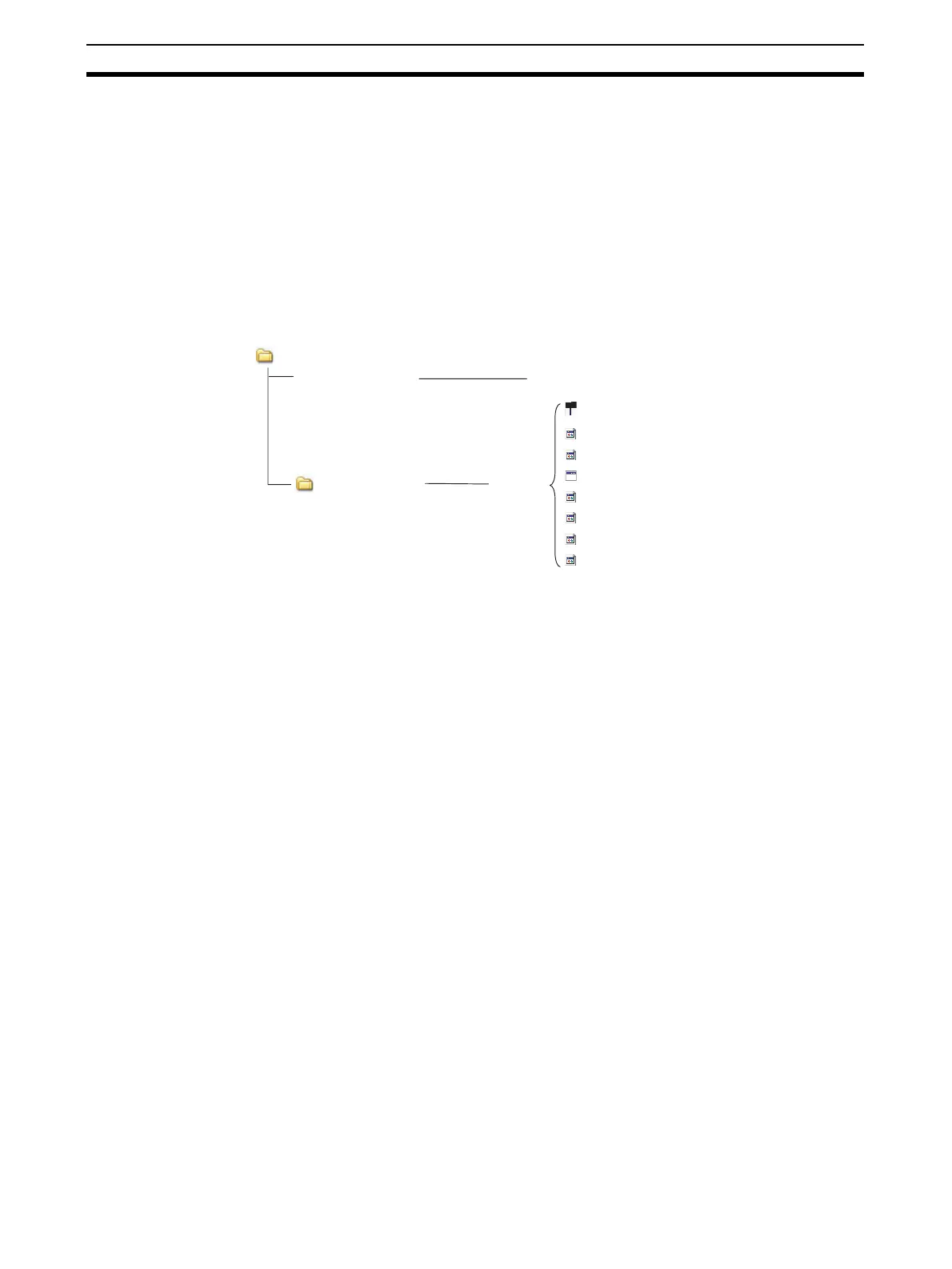

• Save folder and execution file name after transfer.
When "sample" is specified as the file name.
Folder specified for saving
Project structure data
Folder specified for
saving with the same
name as the file
Example: sample
sample.nbk :
sample.INI :
sample.WDF:
sample.HSY:
sample.R00:
sample.ALK:
sample.SPW:
sample.nvp:
Setting data
Project profile (.nbk)
Project backup file (.nvk) (for system)
Initialization file (.INI)
PLC driver file (.WDF)
Base screen data (one file for each screen)
NV-Configuration file (.HSY)
Recipe file (.R00)
Flow text file (.ALK)
Passwords (.SPW)
GNRL0000-.BSD:
Save folder:
Base screens: base***.gsd ***: 000 to fff is the screen number.
Keyboard screens keyb***.gsd ***: 000 to fff is the keyboard number.
Login screens: login***.gsd ***: 000 to fff is the login screen number.
PLC driver: plc_drv.gsd
NV Configuration: nvconfig***.gsd
Recipes: recip***.gsd ***: 000 to fff is the recipe number.
Write Address: devw.gsd
Flow text: flow.gsd
Passwords: pswd.gsd
Firmware: firmware.gsd
