Creating a Simple Screen Section 4-2
4-2-6 Transferring the Final Project to the PT

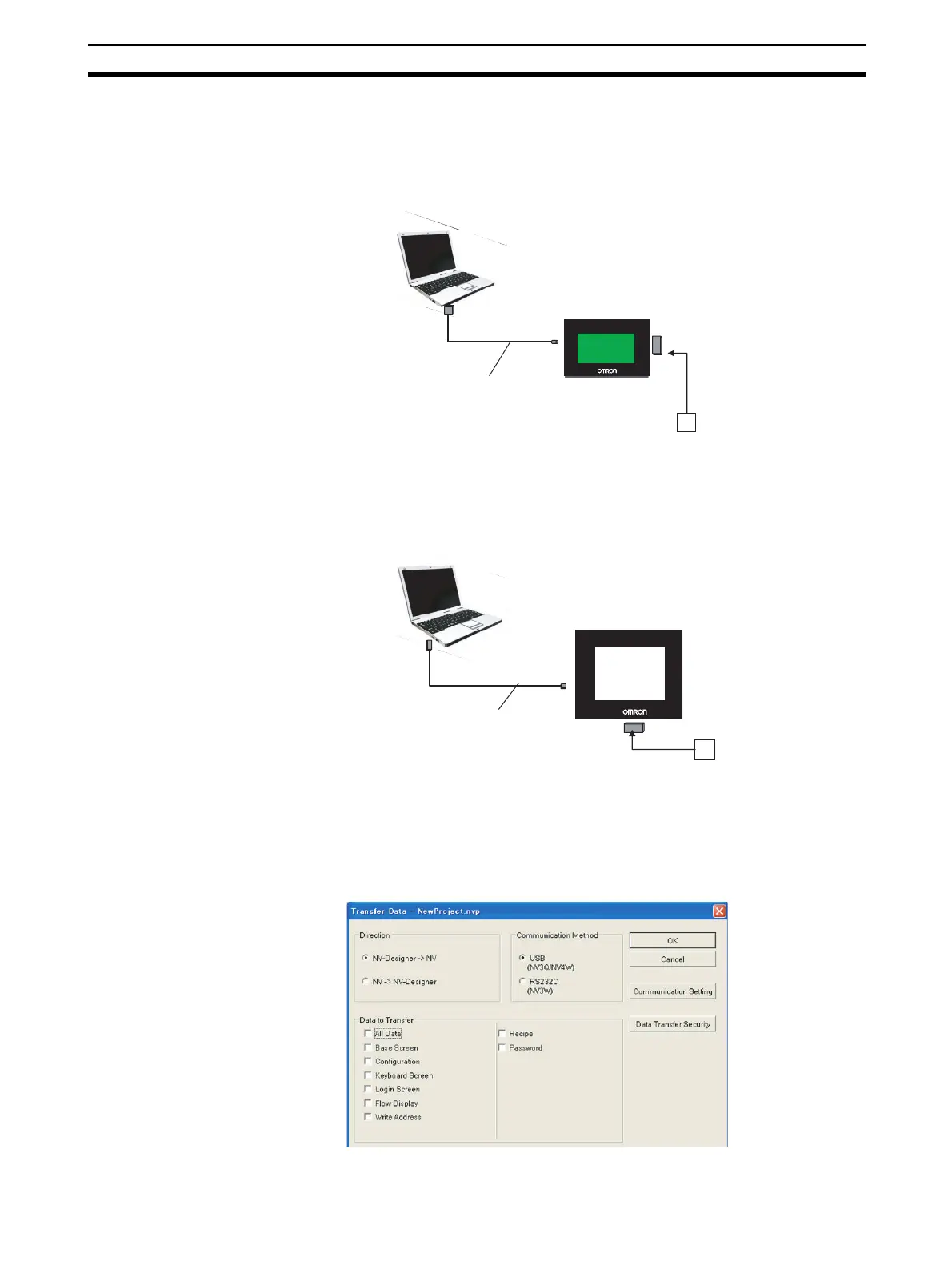

1,2,3... 1. Connect the PT and NV-Designer as shown in the following diagrams.
• Example for the NV3W
Connect the tool port on the back of the NV3W to the computer.
• Example for the NV4W/NV3Q
Connect the USB port on the back of the NV4W/NV3Q to the comput-
er.
2. Select Transfer - Transfer from the PT Menu. The Data Transfer Dialog Box
will be displayed.
3. Set the method of communications with the PT.
NV3W: RS232C
NV4W/NV3Q: USB
NV3W
Programming Device
Connecting Cable
NV-Designer
Screen Design Software
24-V
power supply
(RS-232C cable with a round
DIN pin connector for the NV3W)
NV-TOL-3M
NV4W/NV3Q
Commercially available
USB cable
NV-Designer
Screen Design Software
24-V
power supply
NV4W: Mini B type
NV3Q: B type
