3-3-7 Graphic Tab Page

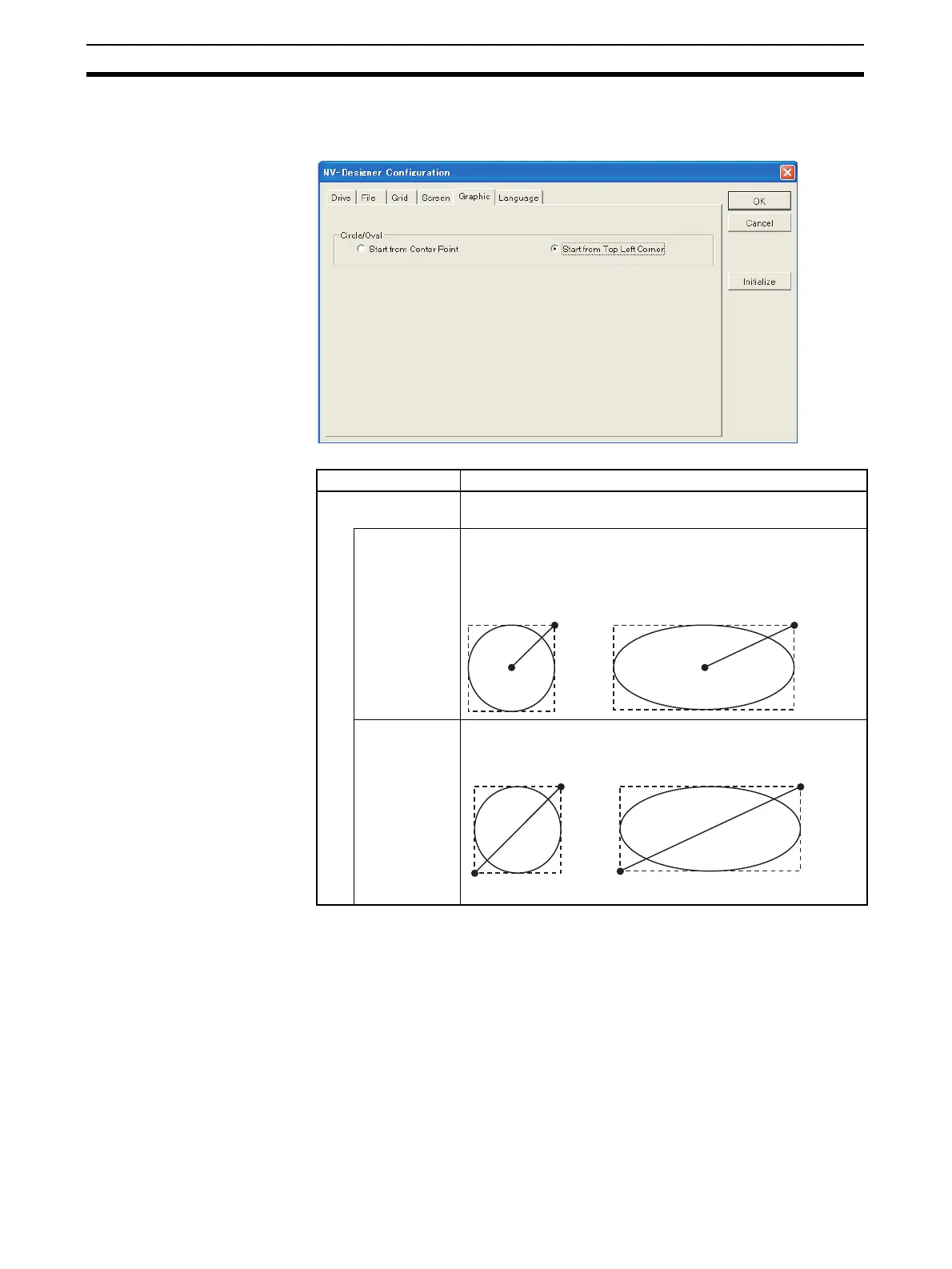

Sets the drawing method for circles and ovals.
Setting Description
Circle/Oval Changes the method for drawing circles and oval, either start-
ing from the center or from the top left.
Start from
Center Point
A circle or oval is drawn inscribed in a rectangle that has the
specified start point as the center of the circle or oval and for
which the specified start point to the end point is half of the dis-
tance between diagonally opposed corners of the rectangle.
Start from Top
Left Corner
A circle or oval is drawn inscribed in a rectangle that has the
start and end points as a diagonal line.
Oval
Circle
End point
End point
Start point
Start point
Oval
Circle
End point
End point
Start point
Start point
