Creating a Simple Screen Section 4-2

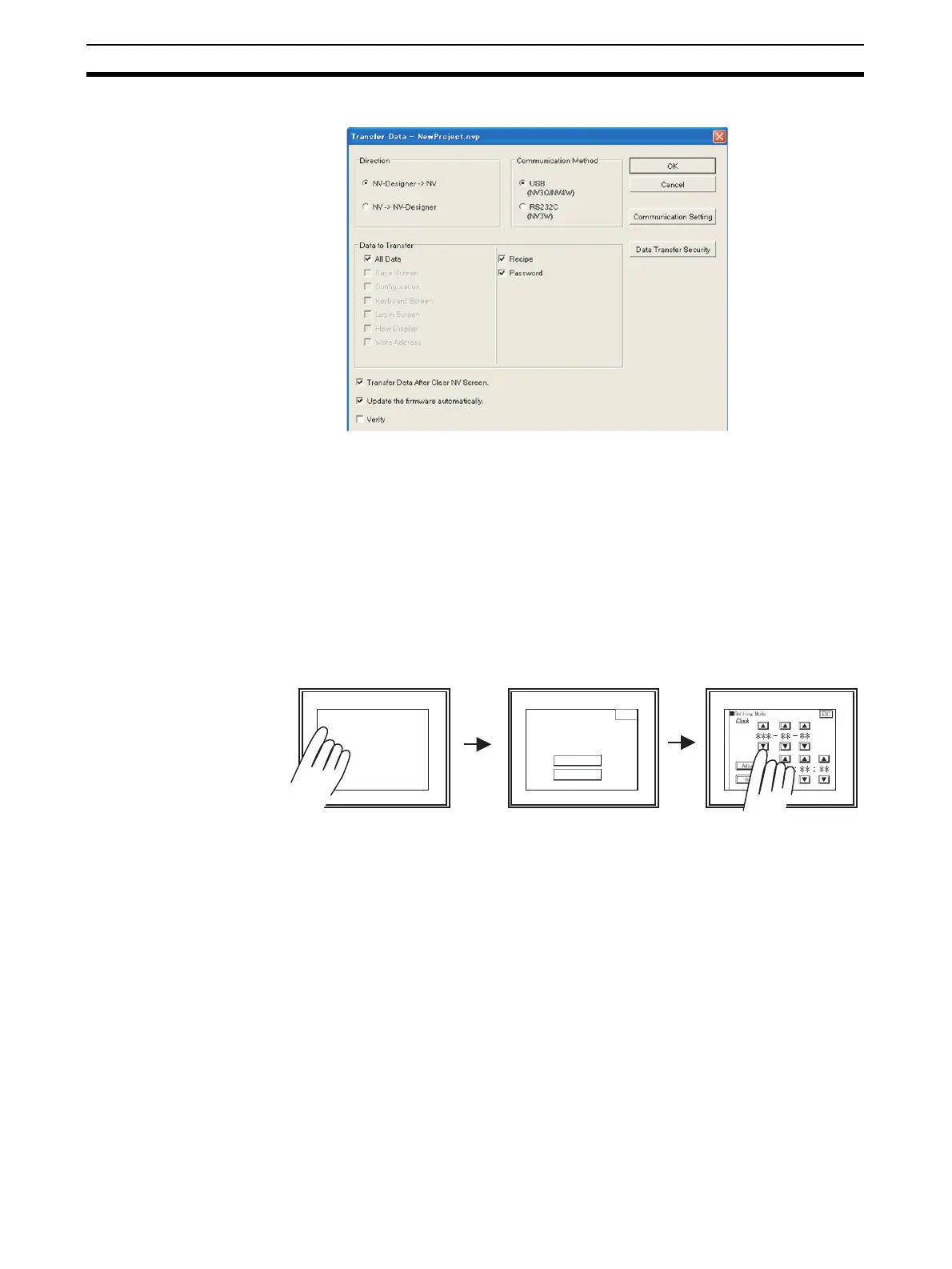

4. Specify the data to transfer to the PT. Select All Data.
5. Click the OK Button. The project will be transferred to the PT.
4-2-7 Setting the PT System Menu
Example: Set the clock in the NV3Q.
1,2,3... 1. Press the upper left corner for 2 seconds, upper right corner, and then the
lower right corner in order.
2. Touch the Setting Menu Button.
3. Touch the Clock Button.
4. Set the time.
Refer to the NV-Series PT Setup Manual (Cat. No. V103) for details on the
System Menu.
PT
Press the upper left corner
for 2 seconds, upper right corner,
and then the lower right corner
in order.
Touch the Setting Button.
System Menu
System Menu
A B
C
■ System Menu
System Version 1.0
PLC Driver OMRON SYSMAC-CS/CJ/CP
Version 1.0
ESC
Setting Menu
Test Menu
Touch the Clock Button
and set the time.
