3-2 NV-Designer Window Names and Menus
3-2-1 Names of Window Components
Menu Bar All NV-Designer functions are displayed in the menus.
Toolbar Frequently used commands are displayed as icons on the menu bar.
Graphic Bar Frequently used drawing commands are displayed as icons on the menu bar.
Screen Manager The screens are managed by base screen numbers.
Base Screen Creates a screen. The screen is displayed at the PT’s screen size. The size
cannot be changed, but the display can be zoomed in or out.
Parts Library Parts used for creating screens are displayed in parts libraries.

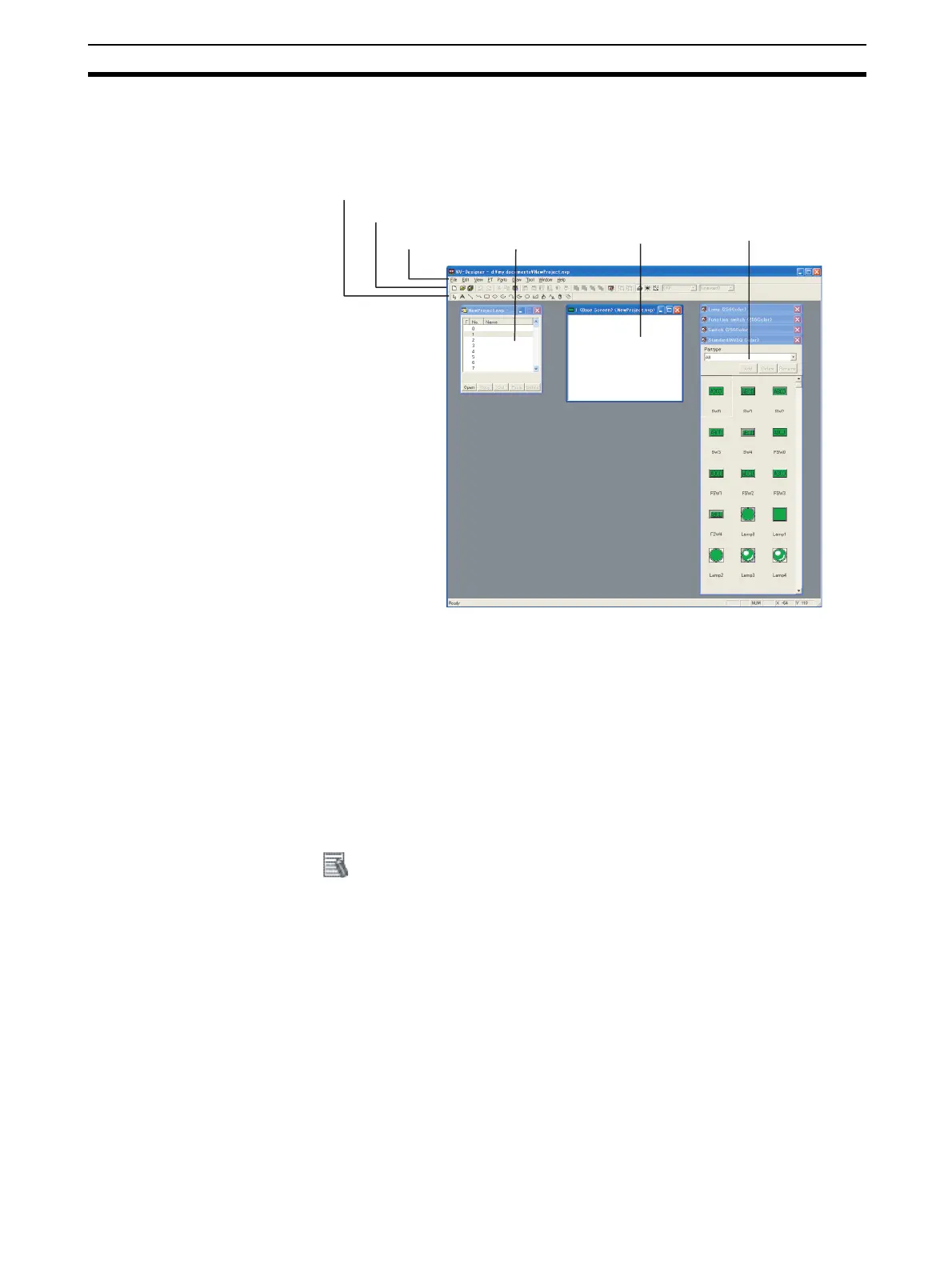

Graphic bar
Toolbar
Menu bar
Screen Manager
Base Screen
Parts Library
Additional Information
When the NV-Designer is started, the Standard Parts Libraries for all parts for
the model that is set will be displayed in front.
