34
NV-Designer Configuration Section 3-3

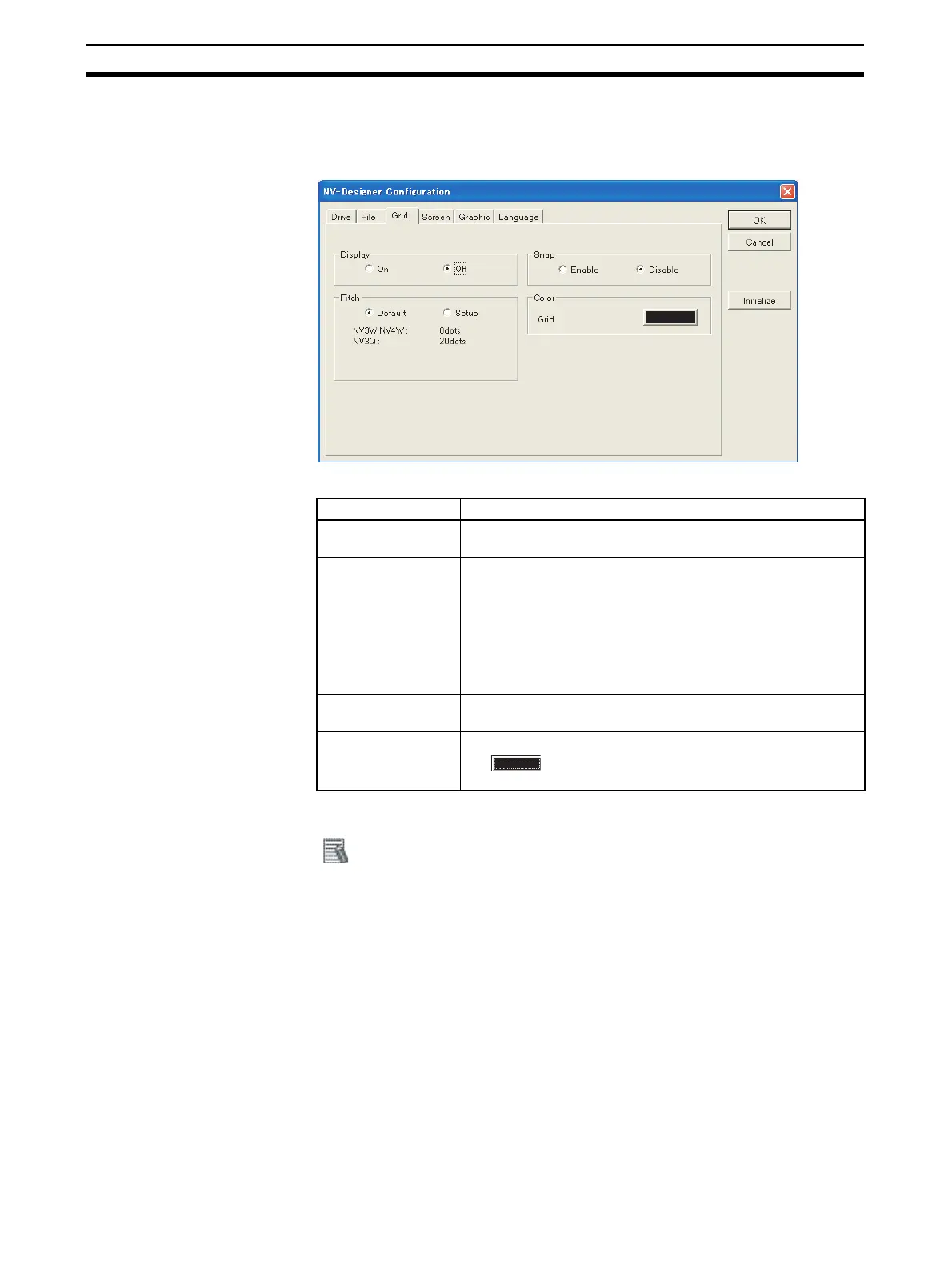

3-3-5 Grid Tab Page
This tab page is used to display/hide the grid, enable/disable snapping to the
grid, and set the grid pitch, color, etc.
Setting Description
View Displays or hides the grid on base screens edited with the NV-
Designer.
Pitch Sets the grid pitch if grids are displayed. (2 to 80)
Default: The grid display is fixed in the X-direction and Y-
direction with the following pitch.
NV3W/NV4W: 8 dots
NV3Q: 20 dots
Setup: The pitch of the grid display can be adjusted in units
of dots.
Snap Enables/disables the snap function which aligns the position of
parts or the starting/ending points of graphics with the grid.
Color (grid color) Sets the color of the grid displayed on the base screen. Click
the Button and select the color from the dialog box
that appears.
Additional Information
The grid settings can also be displayed from the Menu Bar.
Select View – Grid from the Menu Bar.
It can also be selected using the Alt + G shortcut keys.
Enable/Disable Snap with Toolbar Button
Click the Snap ON/OFF Button on the toolbar.
