Creating a Simple Screen Section 4-2
4-2-2 Using the New Project Wizard

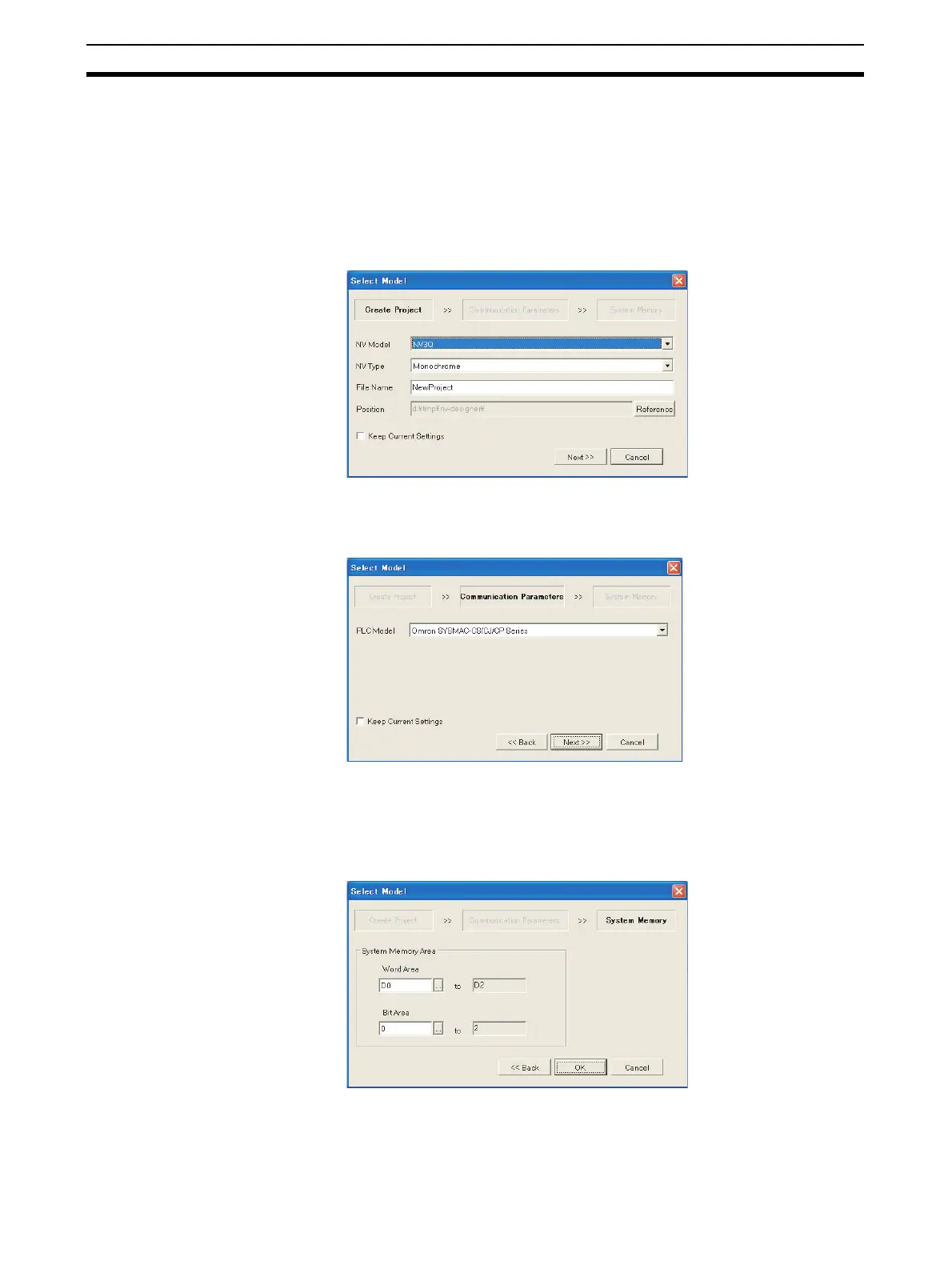

When Create New Project is selected from the Start Menu, the New Project
Wizard will be displayed. Use the following procedure to set up the project.
1,2,3... 1. Set the PT model as shown below in the status for creating the project and
then click the Next Button.
NV Model: NV3Q
NV Model: Monochrome
2. Set the PLC model as shown below for the communications parameters
and then click the Next Button.
PLC model: OMRON SYSMAC-CS/CJ/CP Series
3. Set the system memory and then click the OK Button. Set the system
memory by specifying the area for controlling the PT system in the PLC in-
ternal memory. The system memory is used to switch between base
screens, so make sure that you set it. In this example, it is left set to the
default values.
Note The default words for the Bit Area are CIO 0 to CIO 2. If CIO 0 to CIO 2 are
allocated to real I/O, be sure to change the settings (e.g., to words in the Work
Area).
