NV-Designer Window Names and Menus Section 3-2
Pop-up Menus When a Functional Part or Character String Is Selected

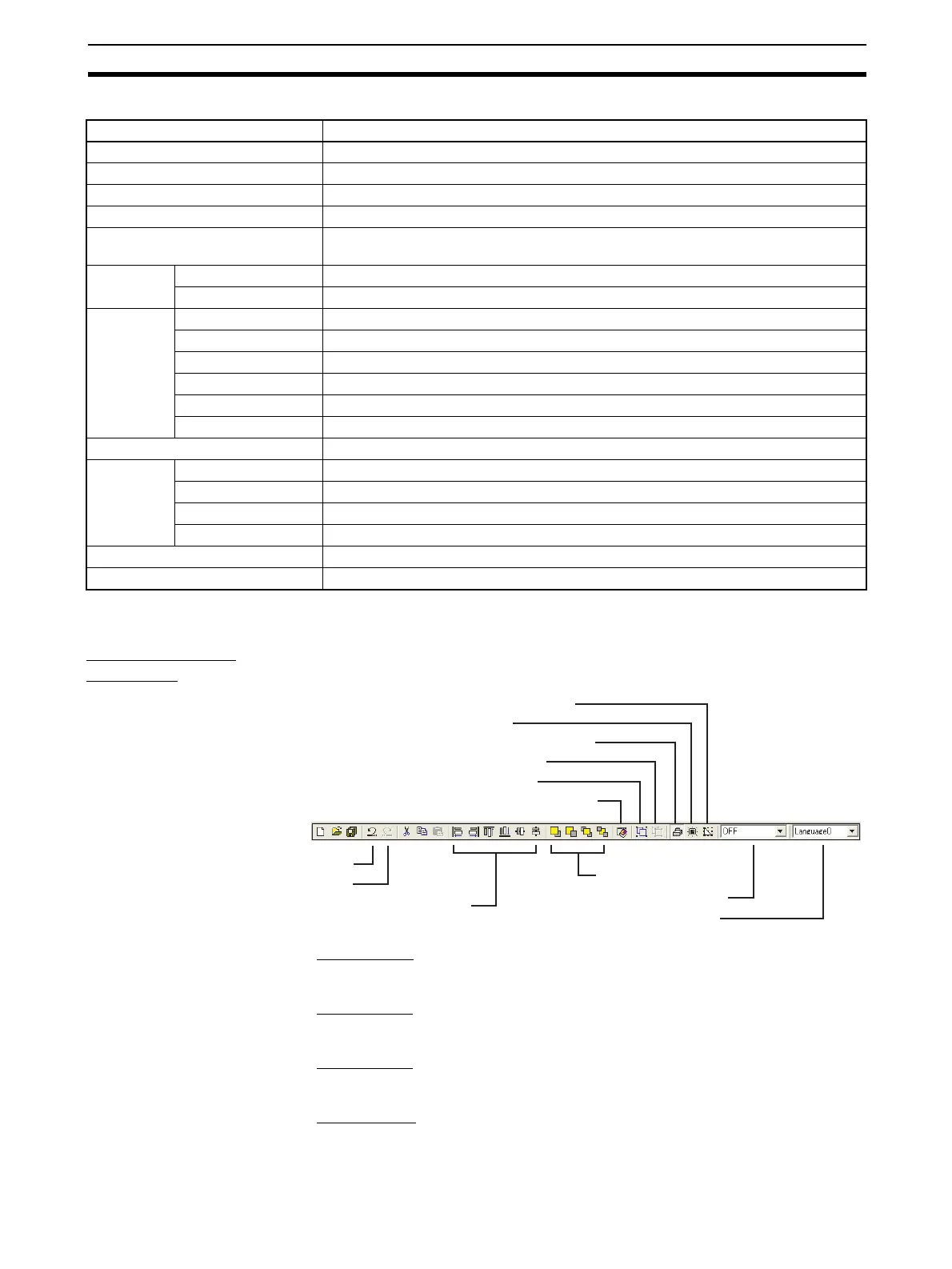

3-2-3 Toolbar Functions
Part Names and
Functions
The names of icons and other items on the toolbar are given below.
Undo Button
Undoes the previous operation.
Redo Button
Redoes the operation that was undone using the Undo Button.
Align Button
Aligns character strings, graphics, and parts.
Order Button
Changes the order of character strings, graphics, and parts if they are over-
lapped.
Pop-up Menus Description
Cut Cuts the selected parts.
Copy Copies the selected parts.
Paste Pastes the parts that were last cut or copied.
Functional Parts: Attribute Sets the attributes of a part.
Character String: Character Type Sets the language, font, character size, attributes (e.g., bold), and colors (character
and background colors).
Status ON Places a bit switch, function switch, or lamp on the screen in OFF status.
OFF Places a bit switch, function switch, or lamp on the screen in ON status.
Align Left Aligns the left sides of the selected graphics.
Right Aligns the right sides of the selected graphics.
Top Aligns the top edges of the selected graphics.
Bottom Aligns the bottom edges of the selected graphics.
Horizontal Center Aligns the horizontal centers of the selected graphics.
Vertical Center Aligns the vertical centers of the selected graphics.
Delete Deletes the selected items.
Order Bring Forefront Places the selected graphics on the top.
Bring Behind All Places the selected graphics on the bottom.
Bring Previous Moves the selected graphic up one layer.
Bring Next Moves the selected graphic back one layer.
Group Creates a group of character strings, graphics, or parts.
Ungroup Ungroups a group of parts.
Undo Button
Redo Button
Align Button
Order Button
Group Button
Ungroup Button
Display/Hide the Graphic Bar Button
Redraw Button
Enable/Disable Snap Button
Lan
g
ua
g
e Number Button
Parts State Button
Open a Parts Library Button
