NV-Designer Window Names and Menus Section 3-2
Parts are set at the foreground as a default.
Open a Parts Library Button
Opens a parts library.
Group Button
Creates a group of character strings, graphics, or parts.
Ungroup Button
Ungroups a group of parts.
Display/Hide the Graphic Bar Button
Displays and hides the graphic bar.
Redraw Button
Redraws the contents of the screen that is being edited.
Enable/Disable Snap Button
Enables/disables the snap function when positioning character strings, graph-
ics, or parts.
Parts State Button
Turns ON/OFF the selected switches and lamps or changes the message part
number.
Language Number Button
Changes the language number of the selected base screen.

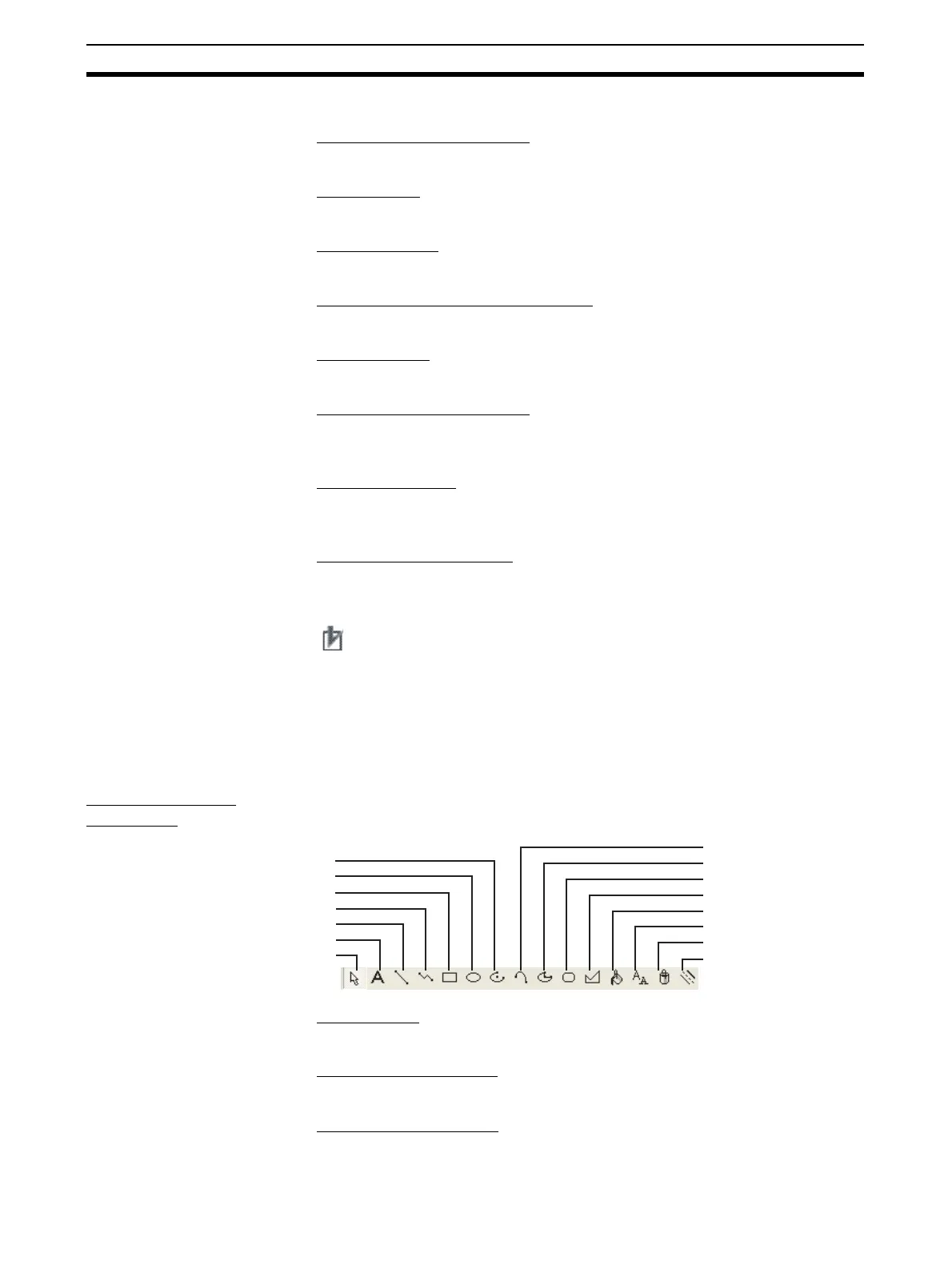

3-2-4 Graphic Bar Functions
Part Names and
Functions
The names of icons and other items on the graphic bar are given below.
Select Button
Used to select a character string, graphic, functional part, etc.
Character String Button
Creates a character string.
Continuous Line Button
Creates a straight line.
Precaution for Correct Operation
The Undo Button is effective only for operations such as drawing and editing
character strings, graphics, and parts, and some operations in editors activated
from the menu bar.
The Undo Button cannot be used for other operations.
Select Button
Character String Button
Continuous Line Button
Continuous Line Button
Rectangle Button
Circle/Oval Button
Arc/Elliptical Arc Button
Curve Button
Segment/Oval Segment Button
Rounded Rectangle Button
Polygon Button
Fill Button
Character Type Button
Color Button
Line Type Button
