3-4 Cable and Connector Specifications
3
Specifications
R88A-CAGBS
Cable Models
For 3,000-r/min Servomotors of 1 to 1.5 kW, 2,000-r/min Servomotors of 1 to 1.5 kW, and 1,000-r/min
Servomotors of 900 W

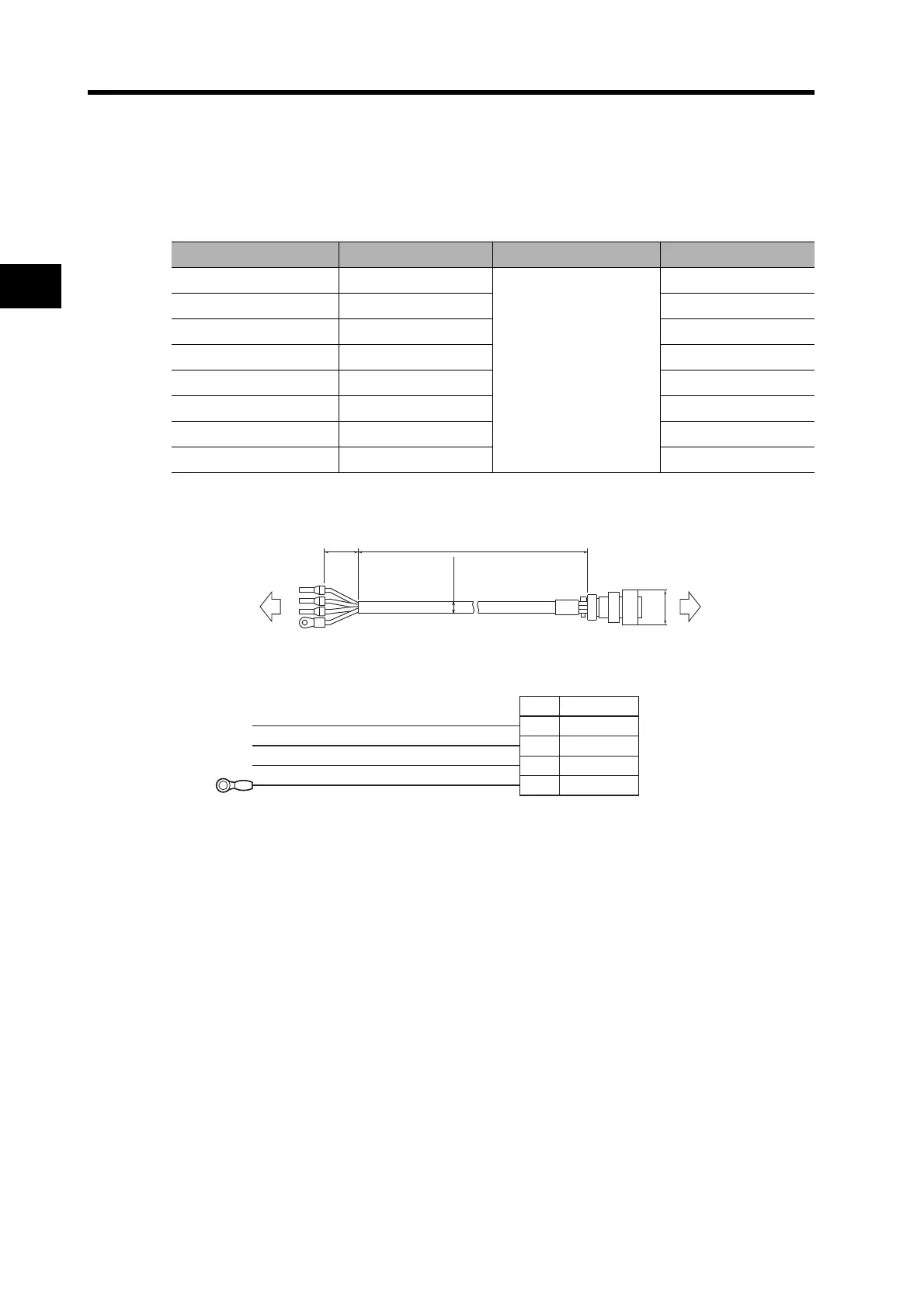

Connection Configuration and Dimensions
Wiring
Model Length (L) Outer diameter of sheath Weight
R88A-CAGB003S 3 m
10.4 dia.
Approx. 0.7 kg
R88A-CAGB005S 5 m Approx. 1.0 kg
R88A-CAGB010S 10 m Approx. 2.0 kg
R88A-CAGB015S 15 m Approx. 2.9 kg
R88A-CAGB020S 20 m Approx. 3.8 kg
R88A-CAGB030S 30 m Approx. 5.6 kg
R88A-CAGB040S 40 m Approx. 7.4 kg
R88A-CAGB050S 50 m Approx. 9.2 kg
(70)
L
Servo Drive Servomotor
R88D-GN@ R88M-G@
(10.4 dia.)
37.3 dia.
No.
A
B
C
D
M4 crimp terminals
Phase U
Phase V
Phase W
FG
Blue
Green/Yellow
Cable: AWG14×4C UL2463
Servo Drive
Red
White
Signal
Servomotor
Servomotor Connector
Straight plug:
N/MS3106B20-4S (Japan Aviation Electronics)
Cable clamp:
N/MS3057-12A (Japan Aviation Electronics)
