Omron OMNUC G Series User Manual

3-87

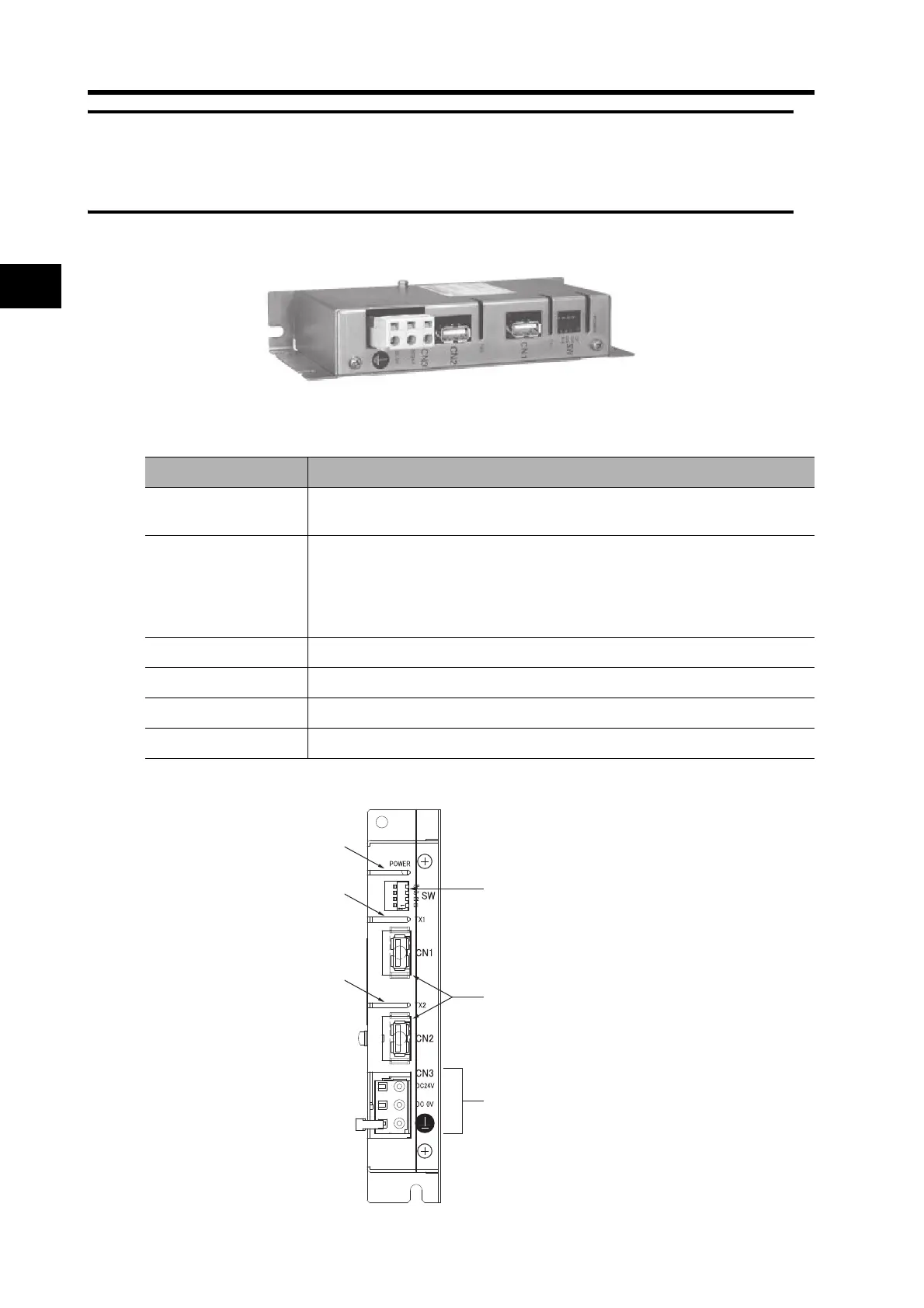

3-8 MECHATROLINK-II Repeater Specifications
3
Specifications
3-8 MECHATROLINK-II Repeater
Specifications
A MECHATROLINK-II Repeater is required to extend the MECHATROLINK-II connection distance.
 FNY-REP2000
Repeater Part Names
Item Specifications
Cable length
Between Controller and Repeater: 50 m max.
Between Repeater and Terminator: 50 m max.
Maximum number of
connectable nodes
Between Controller and Repeater: 14 over 50 m or 15 over 30 m
Between Repeater and terminating resistance: 15 over 50 m or 16 over 30 m
The total number of nodes on both sides of the Repeater cannot exceed the
maximum number of Units connectable to the Controller.
(For the CS1W/CJ1W-NCF71, the maximum number of nodes is 16.)
Indicators 3 LED indicators (Power, CN1 sending, CN2 communicating)
Power supply current 180 mA max.
External power supply 24 VDC 4.8 V, 100 mA
Weight
0.5 kg
Power indicator (POWER)
CN1 sending (TX1)
CN2 sending (TX2)
Setting switch (SW)
Leave all bits set to OFF.
MECHATROLINK-II communications
connectors (CN1 and CN2)
Control power supply terminals
(24 VDC and 0 VDC)
Protective ground terminal
