2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
2-2 External and Mounting Hole
Dimensions
Servo Drives
 Single-phase 100 VAC: R88D-GNA5L-ML2/-GN01L-ML2 (50 to 100 W)
Single-phase 200 VAC: R88D-GN01H-ML2/-GN02H-ML2 (50 to 200 W)
Wall Mounting

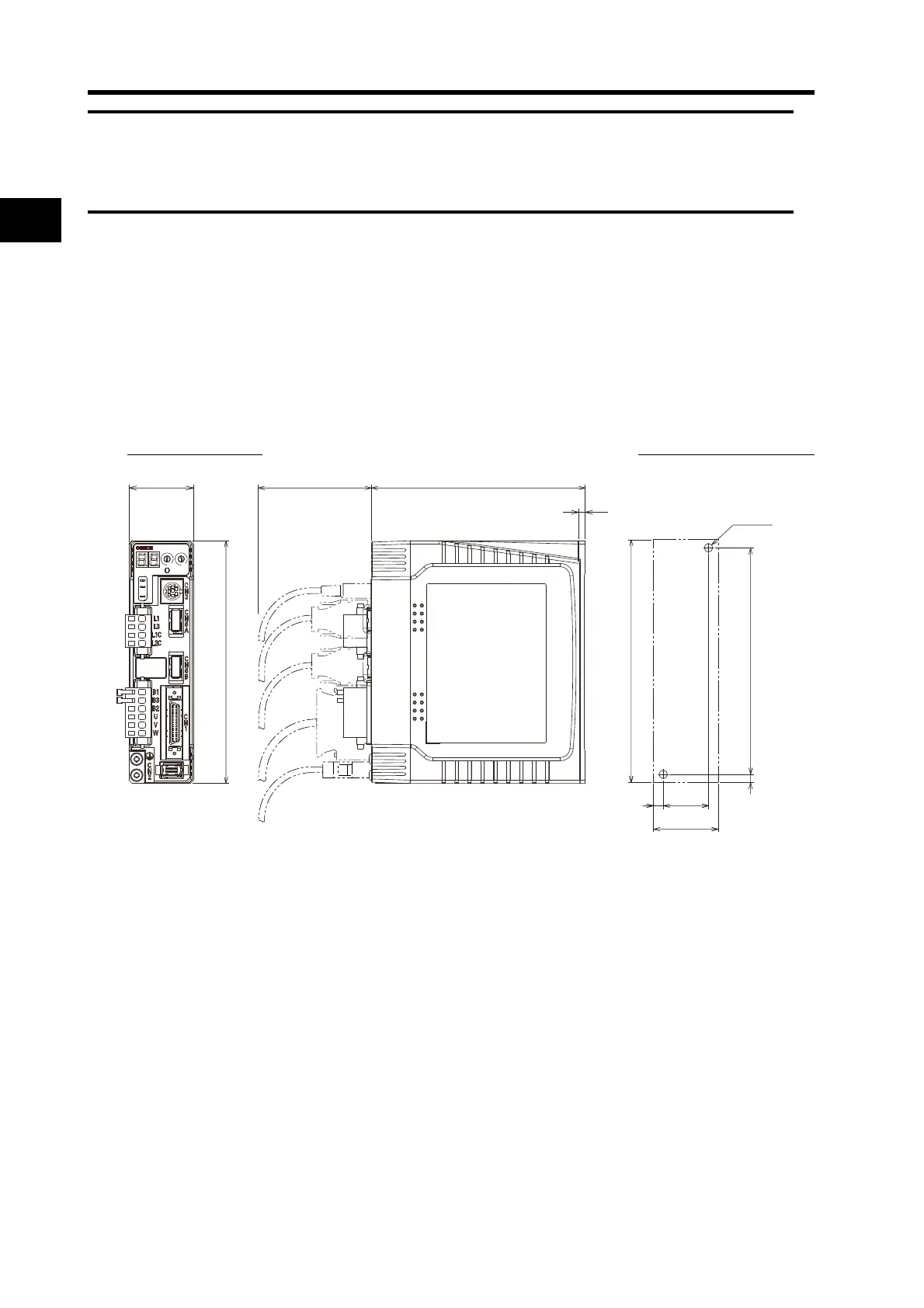

External Dimensions Mounting Hole Dimensions
G
IM
SP
COM
X10
3
2
1
0
ADR
AC SERVO DRIVER
X1
6
7
8
9
0
1
2
3
4
5
13270
4
150
40
Two, M4
286
40
140
5
150
