Omron OMNUC G Series User Manual

3-76
3-4 Cable and Connector Specifications
3
Specifications
MECHATROLINK-II Communications Cable Specifications
 MECHATROLINK Communications Cable (With Connectors and ferrite cores on
both ends) (FNY-W6003-)
Cable Models

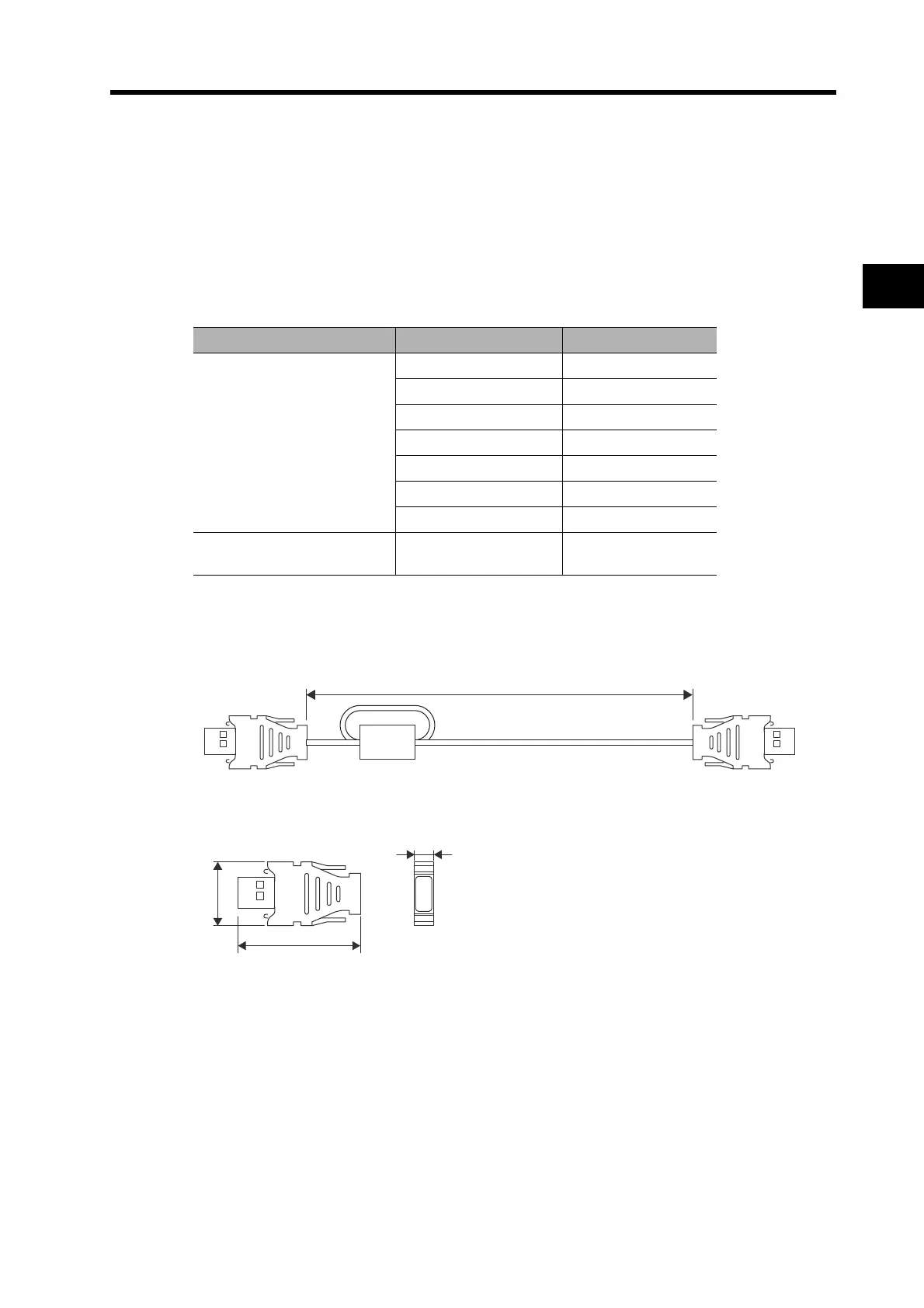

Connection Configuration and Dimensions
MECHATROLINK-II Communications Cable
MECHATROLINK-II termination resistor
Model Model Length (L)
MECHATROLINK-II cable
FNY-W6003-A5 0.5 m
FNY-W6003-01 1 m
FNY-W6003-03 3 m
FNY-W6003-05 5 m
FNY-W6003-10 10 m
FNY-W6003-20 20 m
FNY-W6003-30 30 m
MECHATROLINK-II
termination resistor
FNY-W6022 ---
L
with ferrite core
(8)
21
46
