Omron OMNUC G Series User Manual

6-17

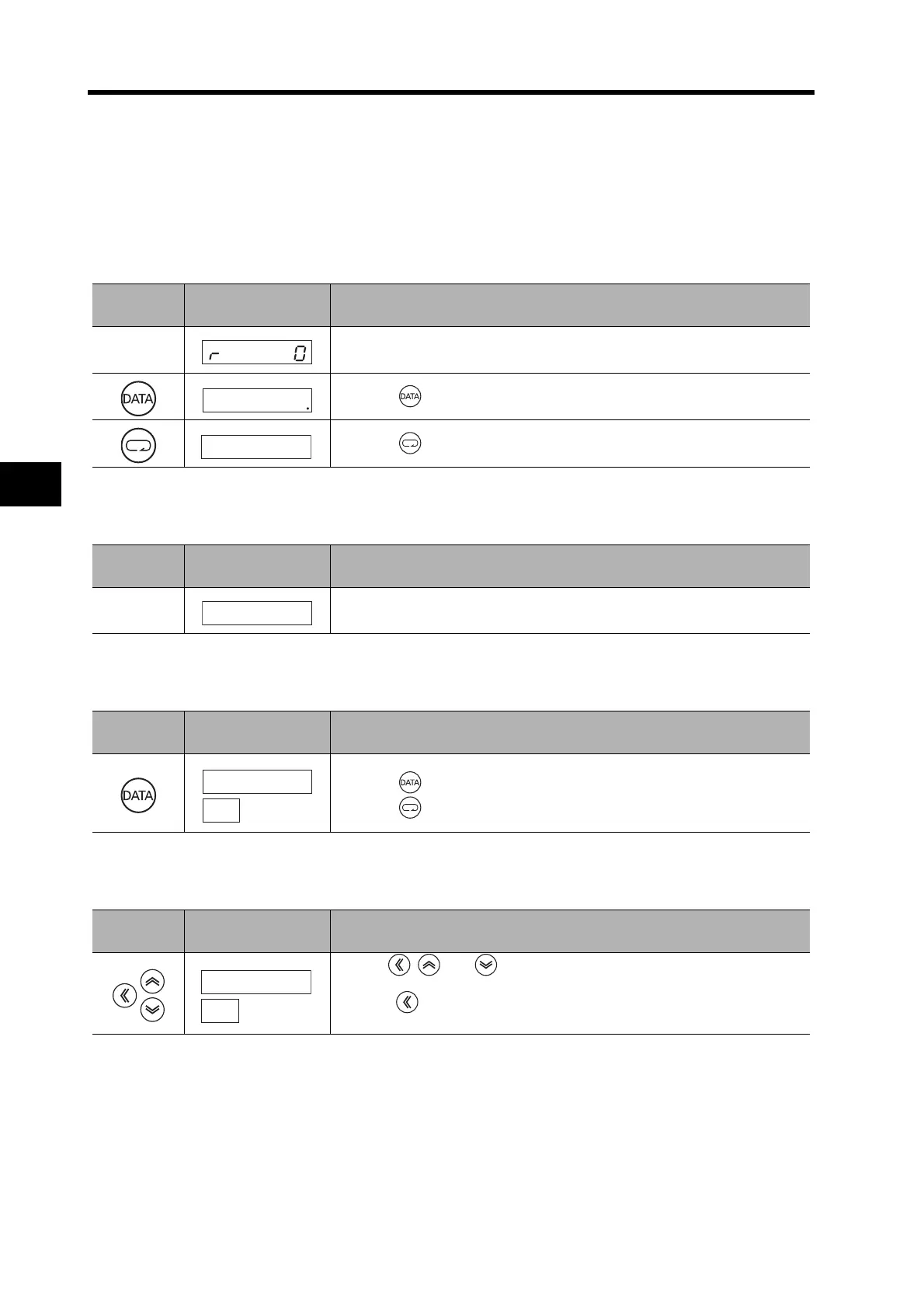

6-4 Setting the Mode
Operation
6
Parameter Setting Mode
 16-bit Positioning Parameters
1. Displaying Parameter Setting Mode
2. Selecting the Parameter Type
3. Switching to the Parameter Setting Display
4. Setting the Parameter Number
Key
operation
Display example Explanation
The item set for the Default Display (Pn001) is displayed.
Press the key to display Monitor Mode.
Press the key to display Parameter Setting Mode.
Key
operation
Display example Explanation
Confirm that 16-bit Parameter is selected.
Key
operation
Display example Explanation
Press the key to go to the Parameter Setting Display.
Press the key to return to the Parameter Type Selection Display.
Key
operation
Display example Explanation
Use the , , and keys to set the parameter number.
If the parameter number is large, the setting can be made more quickly by
using the key to change the digit that is being set. The decimal point will
flash for the digit that can be set.
Uknk_k5kpkd
1k6kbkiktkp
1k6kbkiktkp
pknk_krk0k0.k
1k6
pknk_k k0k4.
1k6
