3-14
3-1 Servo Drive Specifications
3
Specifications

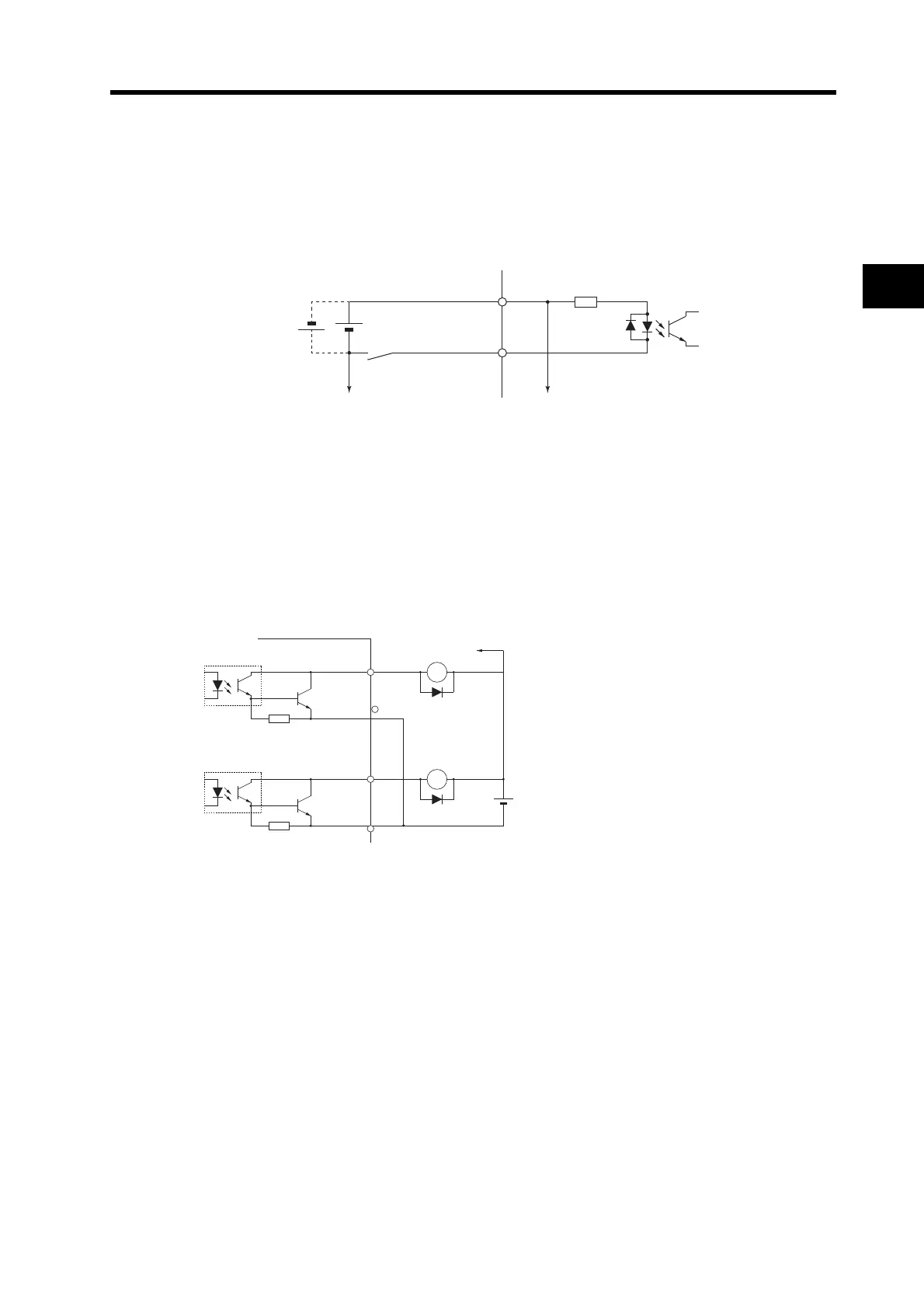

Control Input Circuits
Control Inputs
For the relay contact, use either a switch, or a transistor with an open-collector output.
Control Output Circuits
Control Outputs
1+24VIN
4.7
Signal Levels ON level: 10 V min.
OFF level: 3 V max.
External power supply:
12 VDC 5% to
24 VDC 5%
Power supply capacity:
50 mA min. (per Unit)
Photocoupler input
To other input circuit ground commons
To other input circuits
Servo Drive
+
X
Di
To other output
circuits
X
Di
+
External power supply
24 VDC ±1 V
Maximum operating voltage: 30 VDC
Maximum output current: 50 mA
Di: Diode for preventing surge voltage
(Use high-speed diodes.)
