Omron OMNUC G Series User Manual

3-72
3-4 Cable and Connector Specifications
3
Specifications

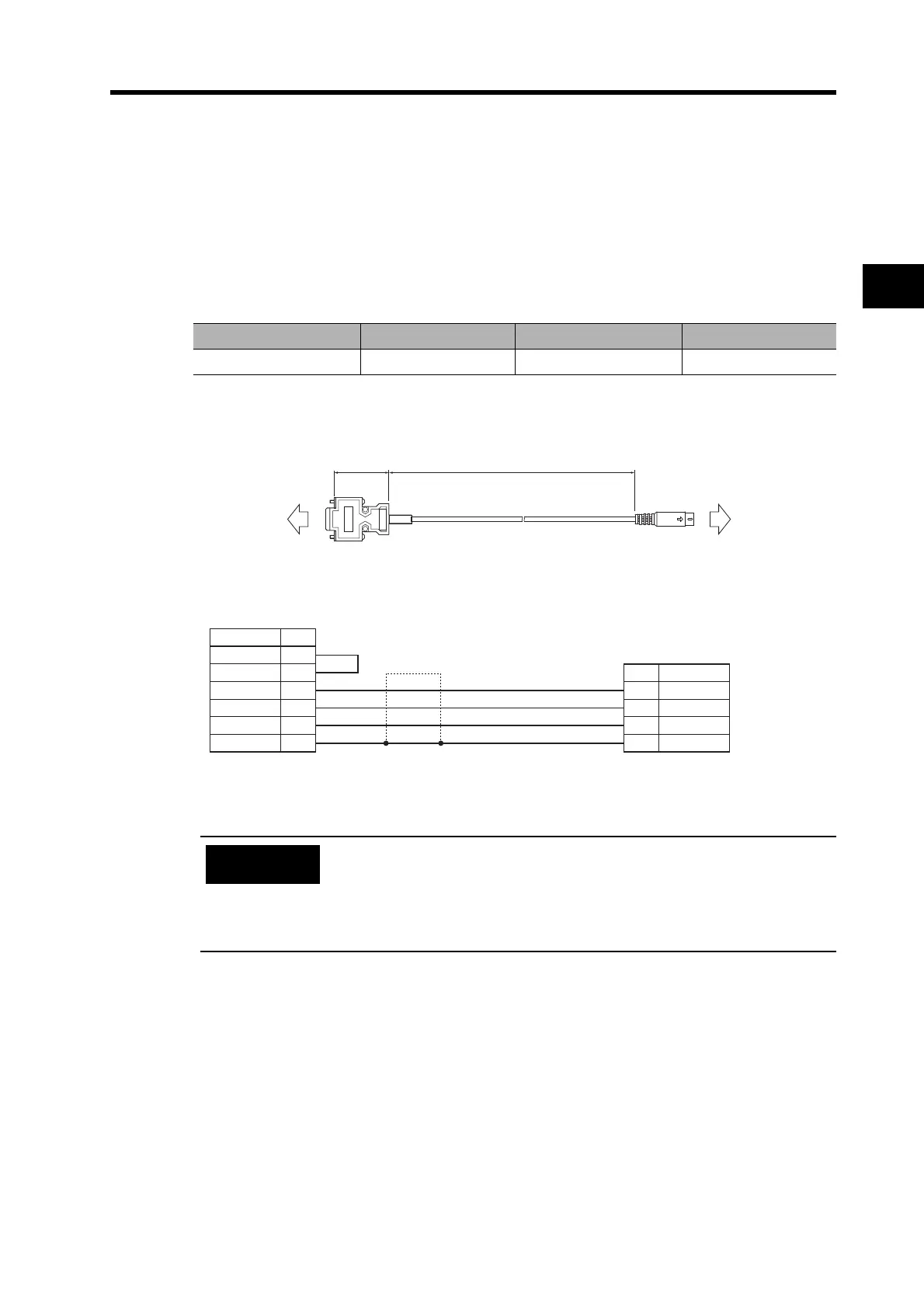

Communications Cable Specifications
 Computer Monitor Cable
Cable Models
Cables for RS-232 Communications
Connection Configuration and Dimensions
Wiring
Model Length (L) Outer diameter of sheath Weight
R88A-CCG002P2 2 m 5.2 dia. Approx. 0.12 kg
 Communications with the Host Device
After confirming the startup of the Servo Drive, initiate communications
with the host device.
Note that irregular signals may be received from the host interface during
startup. For this reason, take appropriate initialization measures such as
clearing the receive buffer.
Personal computer
Servo Drive
R88D-GN@
2000
38
No.
Personal computer
RTS 7
CTS 8
RXD 2
GND 5
TXD 3
FG Shell
Cable: AWG28  3C UL2576
No.
3
4
5
Shell
TXD
GND
RXD
FG
PC Connector
17JE-13090-02 (D8A) (DDK Ltd.)
Servo Drive
Signal
Signal
Precautions
for Correct Use
