3-73
3-4 Cable and Connector Specifications
3
Specifications
Connector Specifications
Control I/O Connector (R88A-CNU01C)
This connector connects to the control I/O connector (CN1) on the Servo Drive.
Use this connector when preparing a control cable yourself.

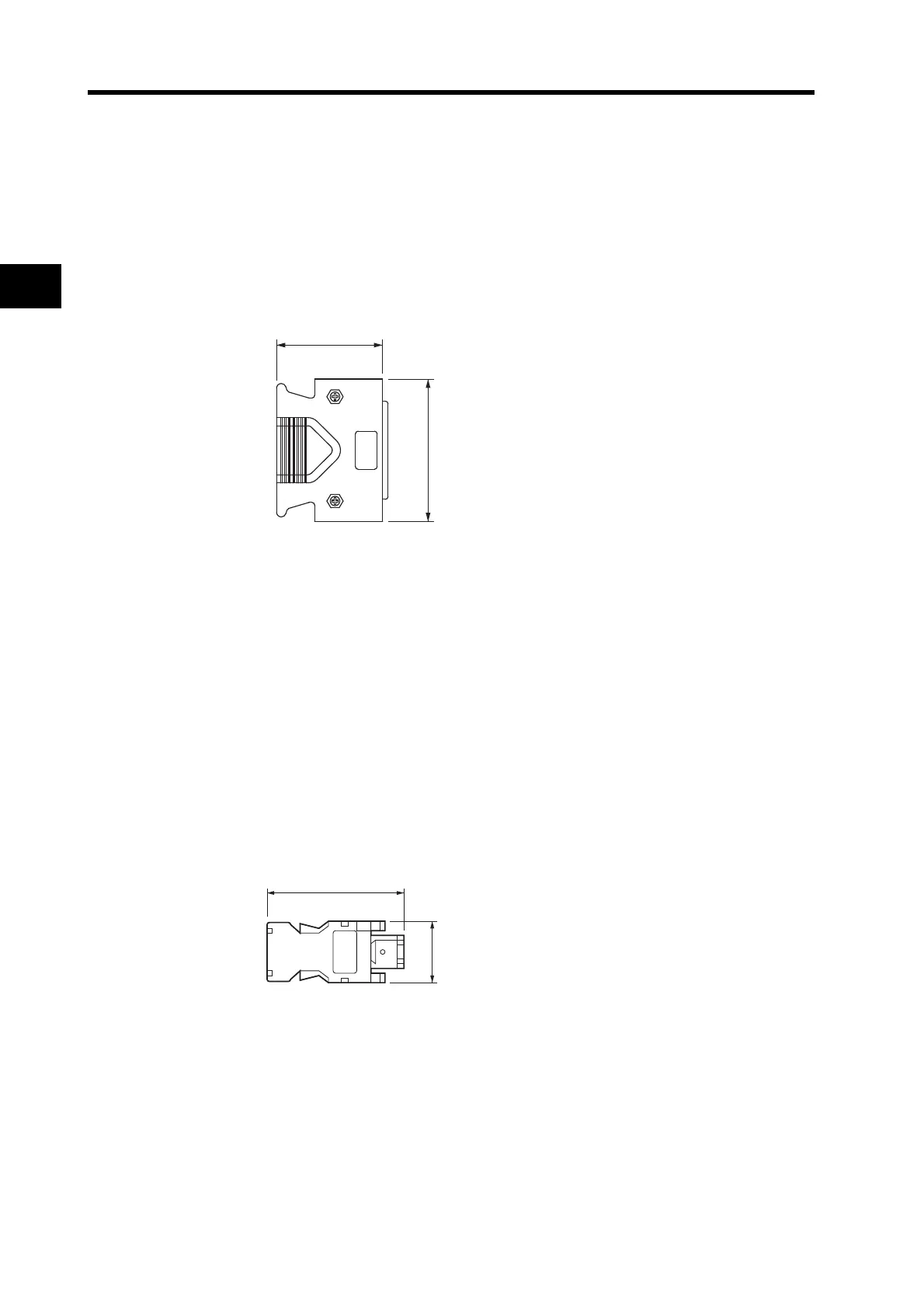

Dimensions
Encoder Connectors
These connectors are used for encoder cables.
Use them when preparing an encoder cable yourself.
Dimensions
R88A-CNW01R (for Servo Drive’s CN2 Connector)
This connector is a soldering type.
Use the following cable.
Applicable wire: AWG16 max.
Insulating cover outer diameter: 2.1 mm dia. max.
Outer diameter of sheath: 6.7 dia. 0.5 mm
43.6
39
t=18
Connector plug:
10136-3000PE (Sumitomo 3M)
Connector case:
10336-52A0-008 (Sumitomo 3M)
43.5
18.8
Connector plug:
55100-0670 (Molex Japan Co.)
t = 12
