Omron OMNUC G Series User Manual

3-55

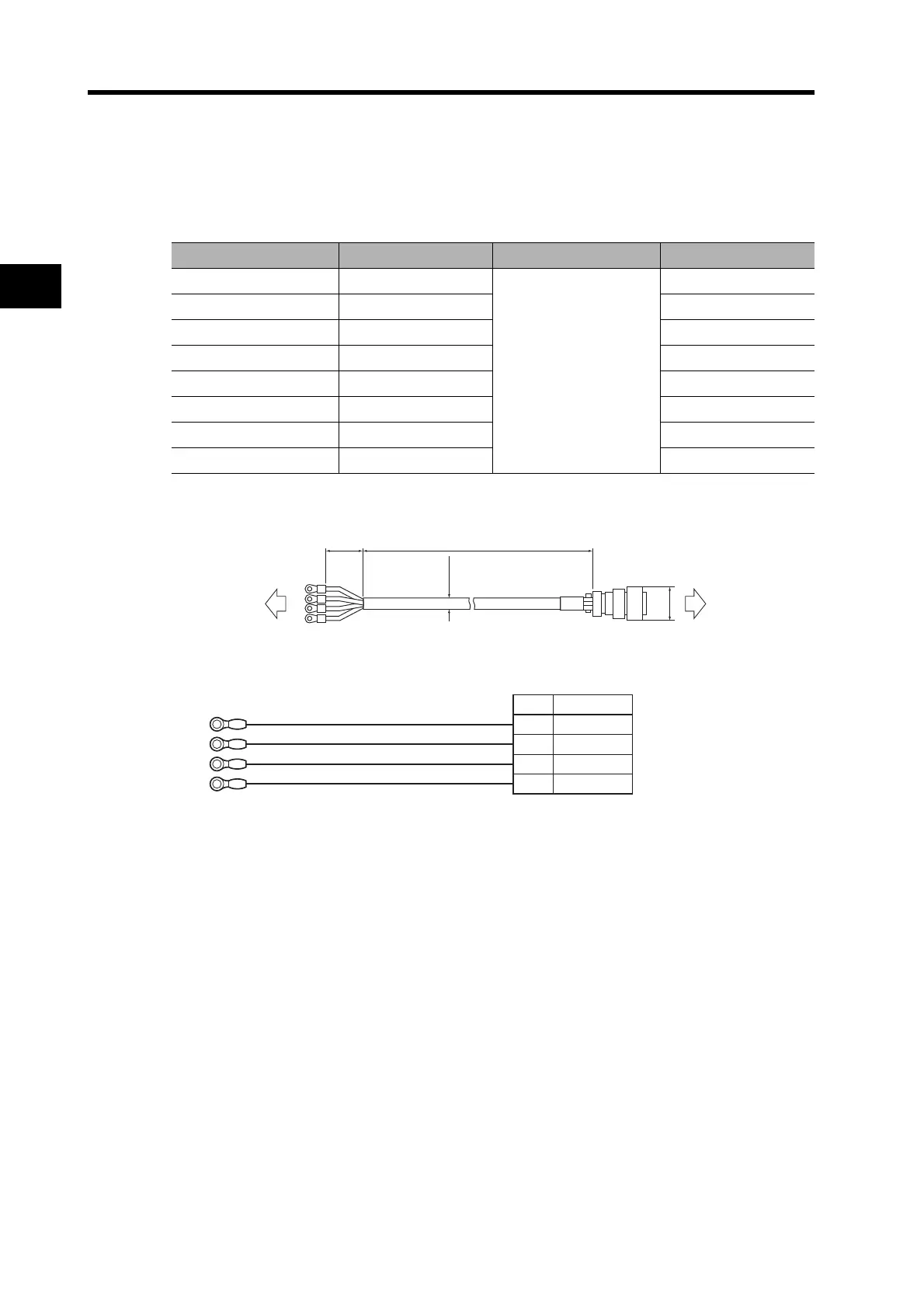

3-4 Cable and Connector Specifications
3
Specifications
R88A-CAGDS
Cable Models
For 3,000-r/min Servomotors of 3 to 5 kW, 2,000-r/min Servomotors of 3 to 5 kW, and 1,000-r/min
Servomotors of 2 to 4.5 kW
Connection Configuration and Dimensions
Wiring
Model Length (L) Outer diameter of sheath Weight
R88A-CAGD003S 3 m
14.7 dia.
Approx. 1.3 kg
R88A-CAGD005S 5 m Approx. 2.1 kg
R88A-CAGD010S 10 m Approx. 4.0 kg
R88A-CAGD015S 15 m Approx. 6.0 kg
R88A-CAGD020S 20 m Approx. 8.0 kg
R88A-CAGD030S 30 m Approx. 11.9 kg
R88A-CAGD040S 40 m Approx. 15.8 kg
R88A-CAGD050S 50 m Approx. 19.7 kg
(70)
L
Servo Drive Servomotor
R88D-GN@ R88M-G@
(14.7 dia.)
40.5 dia.
No.
A
B
C
D
M5 crimp terminals
Phase U
Phase V
Phase W
FG
Blue
Green/Yellow
Cable: AWG10×4C UL2463
Servo Drive
Red
White
Signal
Servomotor
Servomotor Connector
Straight plug:
N/MS3106B22-22S (Japan Aviation Electronics)
Cable clamp:
N/MS3057-12A (Japan Aviation Electronics)
