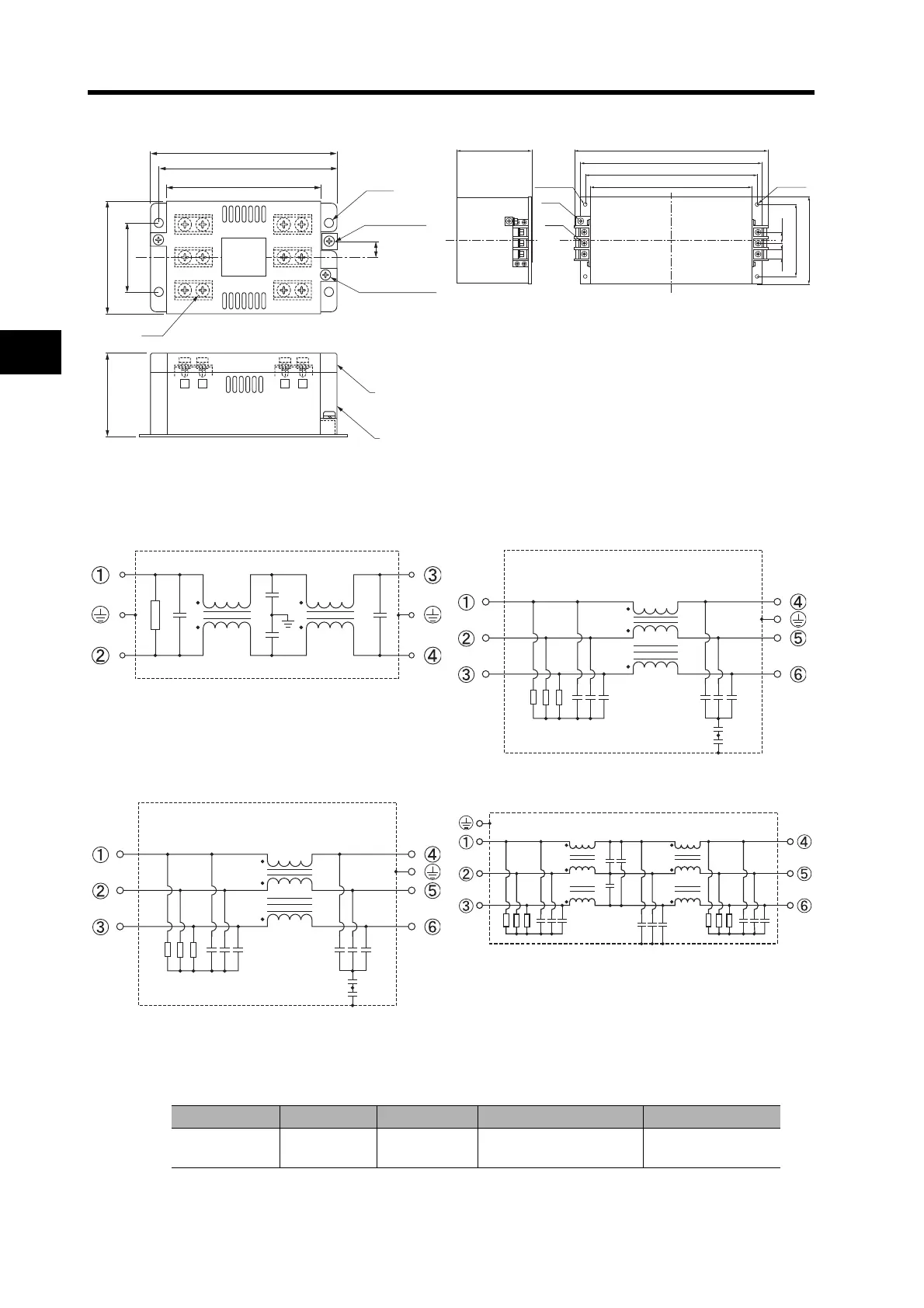

4-3 Wiring Conforming to EMC Directives
System Design
4
3SUP-HU30-ER-6 3SUP-HL50-ER-6B
Circuit Diagrams
SUP-EK5-ER-6 3SUP-HQ10-ER-6
3SUP-HU30-ER-6 3SUP-HL50-ER-6B
Noise Filter for the Brake Power Supply
Use the following noise filter for the brake power supply.
Note Noise can also be reduced by using 1.5 turns with the ZCAT3035-1330 (TDK) Radio Noise
Filter.
Model Rated current Rated voltage Leakage current Manufacturer
SUP-EK5-ER-6 5 A 250 V
1.0 mA
(at 250 Vrms, 60 Hz)
Okaya Electric
Industries Co., Ltd.
105
115
5.5
43
70
52
10
95
M4
M3
M4
Ground terminal
Cover mounting
screw
Cover
Noise Filter
120
90
±1.0
18
13
286
±3.0
240
150
270
255
±1.0
M6
M6
Two,
5.5 × 7
dia.
Two,
5.5 dia.
CxR
Cy
Cy
Cx
LL
