Omron OMNUC G Series User Manual

5-24
5-12 Sequence Input Signals
Operating Functions
5

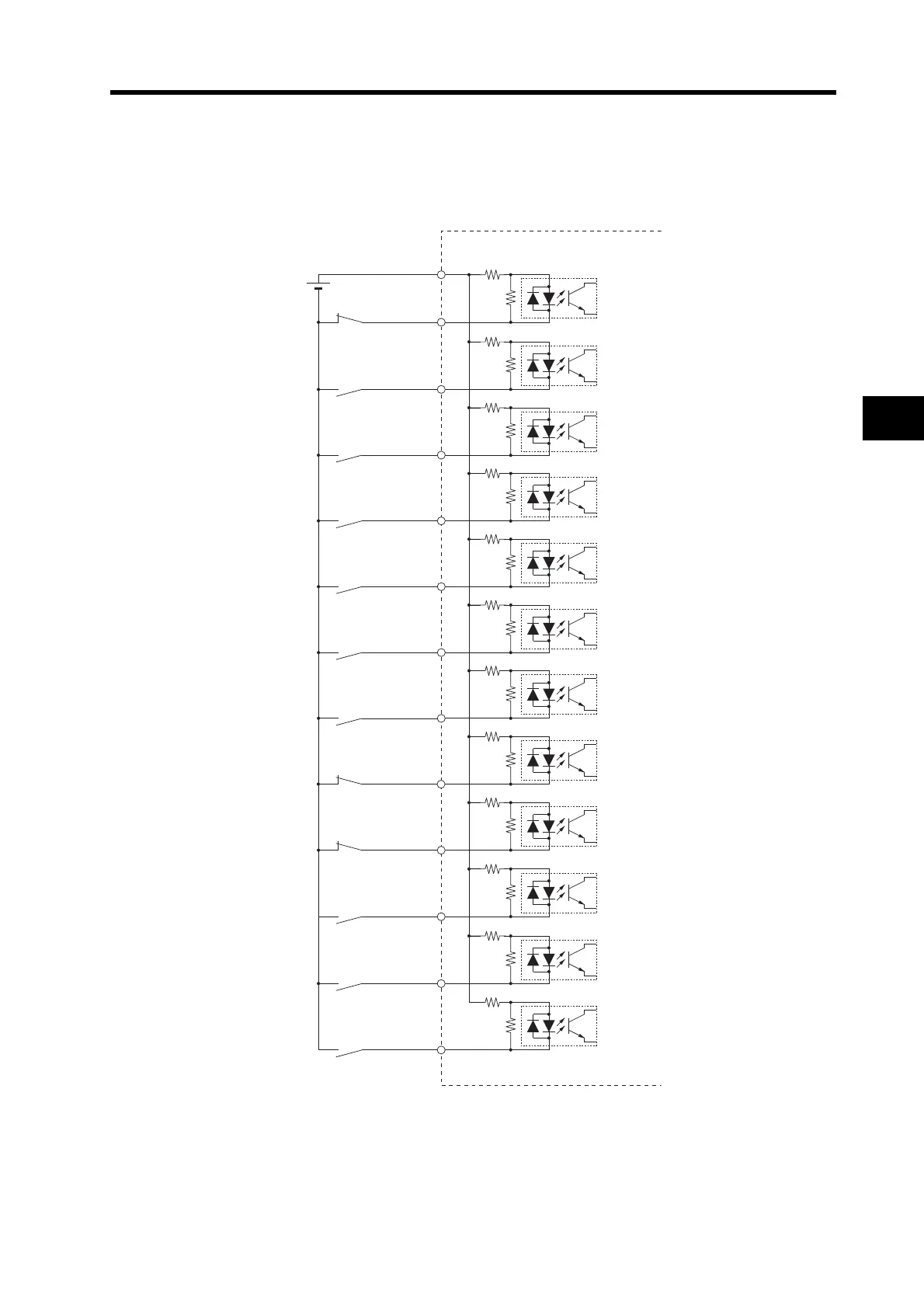

 CN1 Control Input Signal Connection Diagram
Note Inputs for pins 19 and 20 are determined by parameter settings.
The diagram shows the default configuration.
Emergency Stop
8NCL
7PCL
6IN1
5EXT1
4
EXT2
3
EXT3
2STOP
1
+24VIN
Reverse Torque
Limit Input
Forward Torque
Limit Input
General-purpose
Input 1
External Latch 1
External Latch 2
External Latch 3
12 to 24 VDC
19POT
Forward Drive
Prohibit Input
20NOT
Reverse Drive
Prohibit Input
21DEC
Origin Proximity
22IN0
General-purpose
Input 0
23IN2
General-purpose
Input 2
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
4.7kΩ
1kΩ
OMNUC G-Series
Servo Drive
