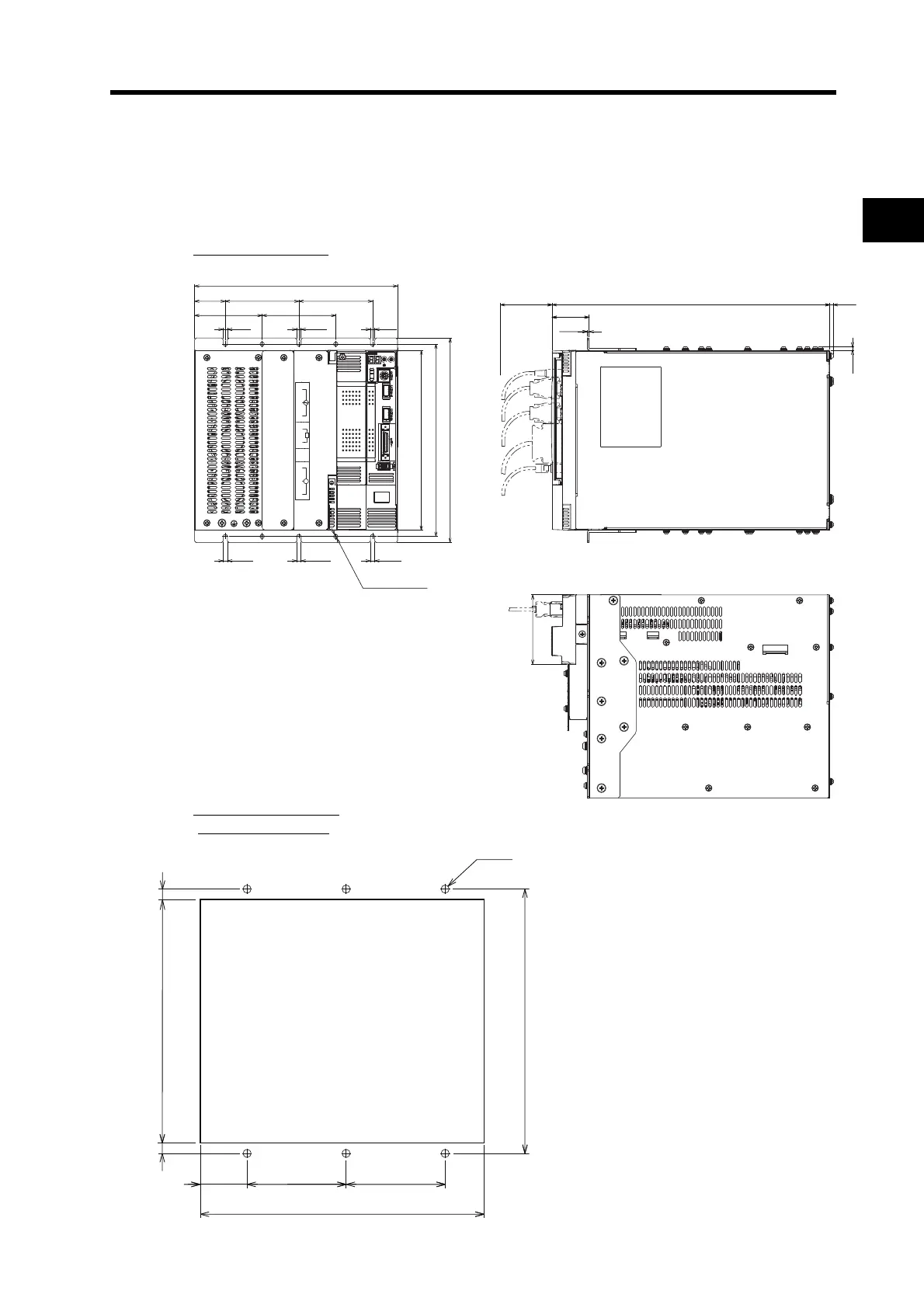

2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
Three-phase 200 VAC: R88D-GN75H-ML2 (7.5 kW)
Front Panel Mounting (Using Mounting Brackets)
External Dimensions
Mounting Dimensions
(Reference Values)
5.2 5.2 5.2
Four, 5.2 dia.
5.2 5.2 5.2
248
339.3
45.1
70 (4)
(2.3)
(4)
250
220
235
85
90
9082.5
9037.5
M
W
V
U
B2
B2
B1
B1
L3
L3
L2
L2
L1
L1
0
G
IM
SP
COM
X10
3
2
1
ADR
AC SERVO DRIVER
X1
6
7
8
9
0
1
2
3
4
5
Six, M4
Square hole
(250)*
(226)*
4.5 4.5
38.5
235
9090
Note The dimensions of the square
hole are reference values.
