Omron OMNUC G Series

2-61
2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
Decelerators for 3,000-r/min Flat Servomotors
Note1. The standard shaft type is a shaft with key and tap.
Note2. The diameter of the motor shaft insertion hole is the same as the shaft diameter of the corresponding
Servomotor.
Note3. Applicable for the servomotors with key, if the key is removed.
Note4. The dimensional drawings in this document are for showing main dimensions the details of the product
shape.

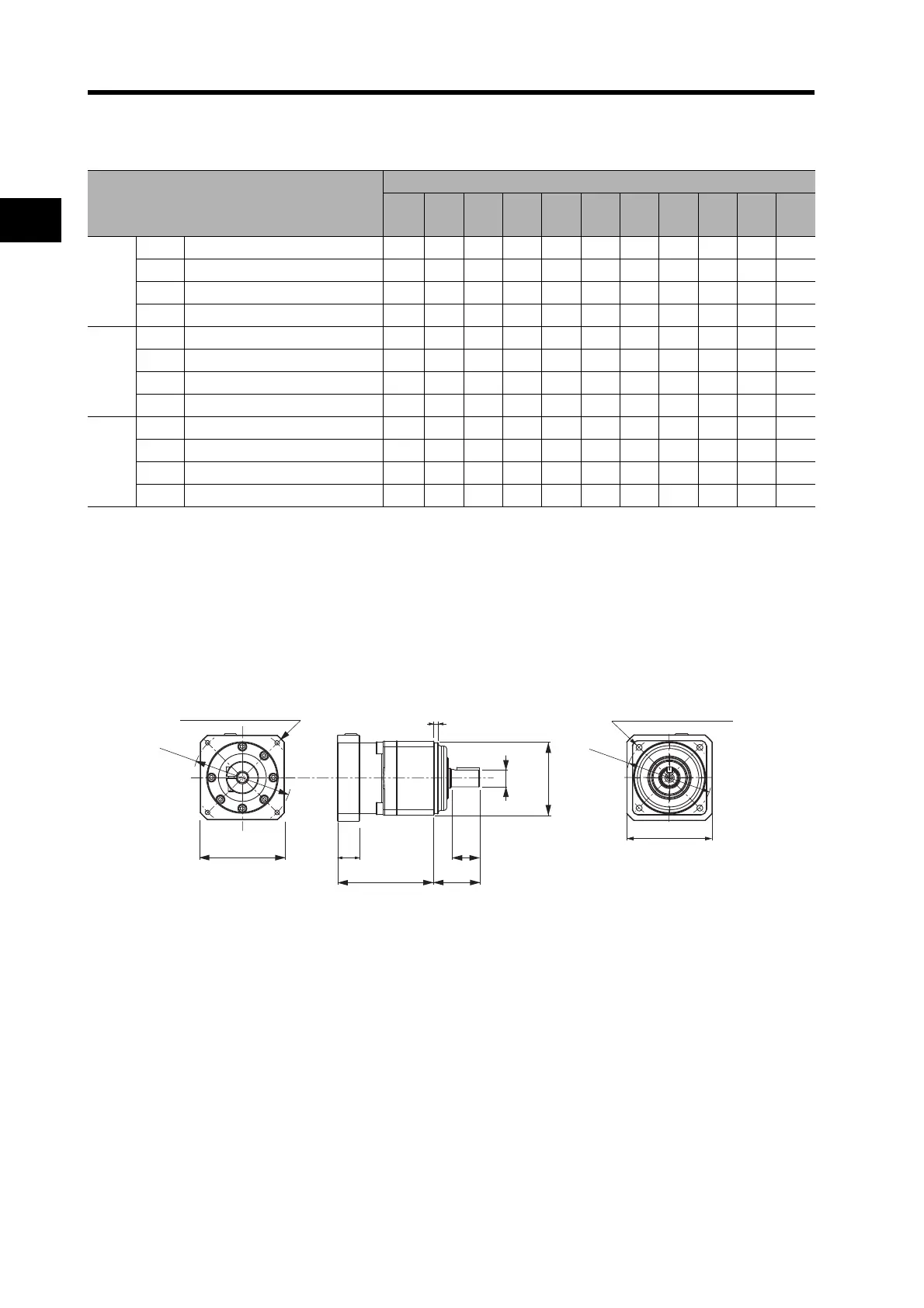

Outline Drawings
Model
Dimensions (mm)
LM LR C1 C2 D1 D2 D3 F G S T
100 W
1/5 R88G-VRXF05B100PCJ 67.5 32 60 52 70 60 50 3 15.5 12 20
1/9 R88G-VRXF09B100PCJ 67.5 32 60 52 70 60 50 3 15.5 12 20
1/15 R88G-VRXF15B100PCJ 83.5 32 60 52 70 60 50 3 15.5 12 20
1/25 R88G-VRXF25B100PCJ 83.5 32 60 52 70 60 50 3 15.5 12 20
200 W
1/5 R88G-VRXF05B200PCJ 77.5 32 80 52 90 60 50 3 21.5 12 20
1/9 R88G-VRXF09C200PCJ 94.5 50 8078 90 90 70 3 21.5 19 30
1/15 R88G-VRXF15C200PCJ 105.0 50 8078 90 90 70 3 21.5 19 30
1/25 R88G-VRXF25C200PCJ 105.0 50 8078 90 90 70 3 21.5 19 30
400 W
1/5 R88G-VRXF05C400PCJ 94.5 50 8078 90 90 70 3 21.5 19 30
1/9 R88G-VRXF09C400PCJ 94.5 50 8078 90 90 70 3 21.5 19 30
1/15 R88G-VRXF15C400PCJ 105.0 50 8078 90 90 70 3 21.5 19 30
1/25 R88G-VRXF25C400PCJ 105.0 50 8078 90 90 70 3 21.5 19 30
F
G T
LRLM
4-Z1 (Available depth M)
4-Z2 (Available depth L)
C1×C1
Sh6 dia.
D1 dia.
D2 dia.
C2×C2
D3h7 dia.
