Install a Storage Backplane

Servicing the Storage Backplanes 103

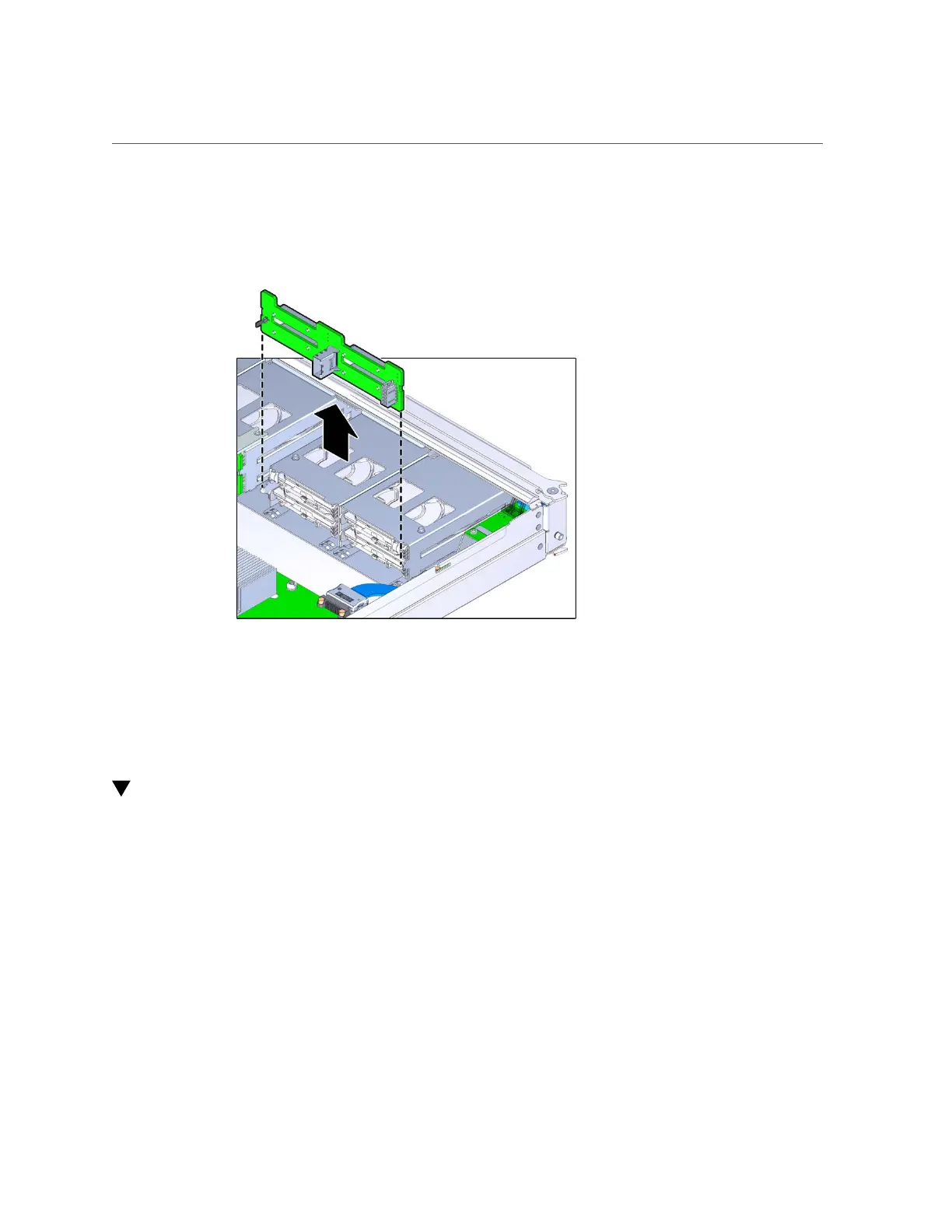

Push the top edge of the storage backplane slightly toward the rear of the main

module, then lift the storage backplane up and remove it from the main module.

Related Information

■

“Install a Storage Backplane” on page 103

■

“Verify the Storage Backplane” on page 107

Install a Storage Backplane

Position the storage backplane in the main module.
