Rear I/O Module Port Locations
Identifying Components 21
Rear I/O Module Port Locations
The rear I/O module is located on the rear panel above the AC power connectors. The rear I/O
module provides access to all of the internal PCIe ports for the server and the video and USB
ports for input devices.

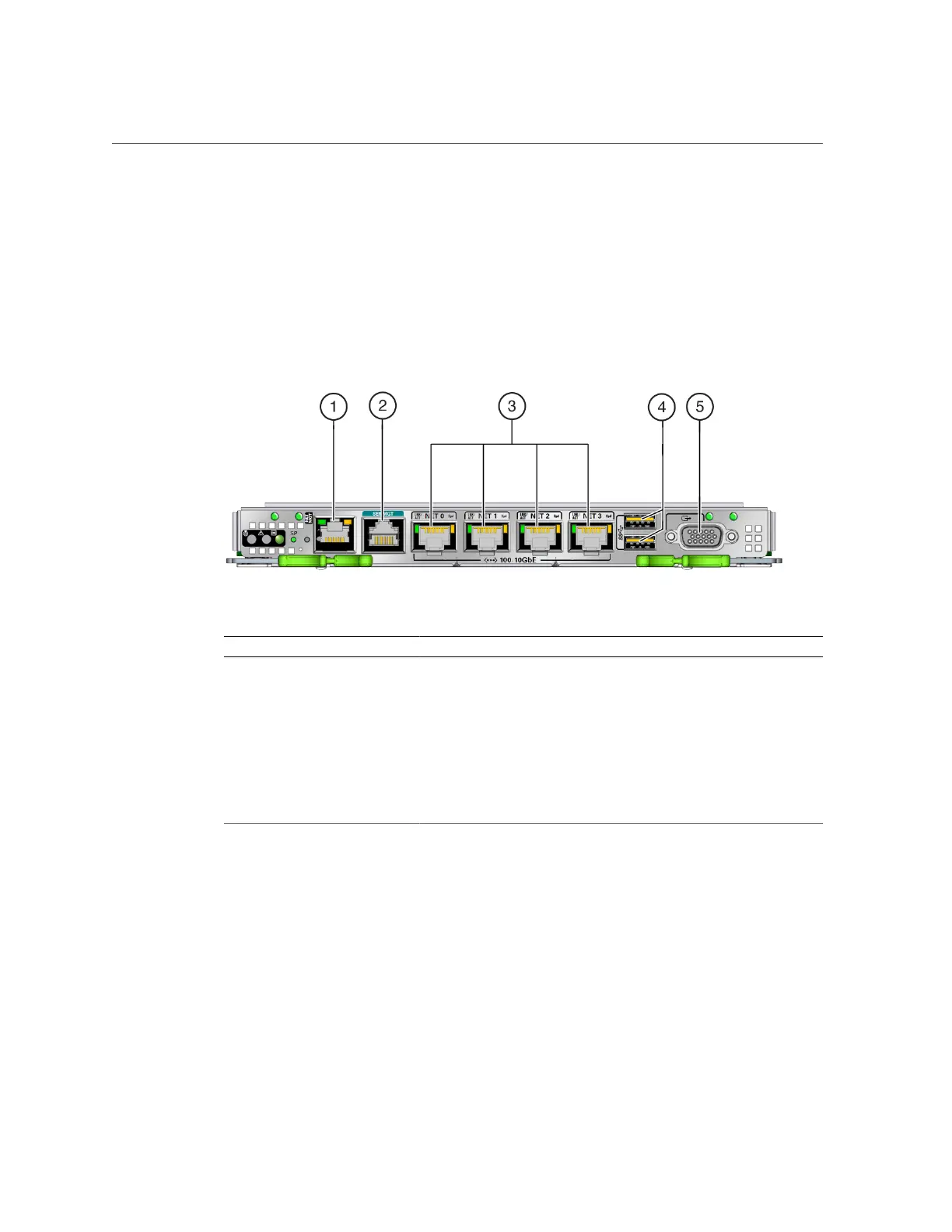

No. Port Label Links
1 Network management NET MGT This Ethernet port enables you to connect the server to your
local network so that you can manage the server from a
remote location.
2 Serial management SER MGT This serial port enables you to connect directly to the SP.
3 Ethernet network
NETx Where x is the number of the port. You can use these
Ethernet ports to connect the server to local or wide area
networks.
4 USB These ports provide access for input devices.
5 Video This port provides access to the console output on the SP.
