Rear Panel Components (Service)
Identifying Components 15
■
“Chassis Subassembly Components” on page 22

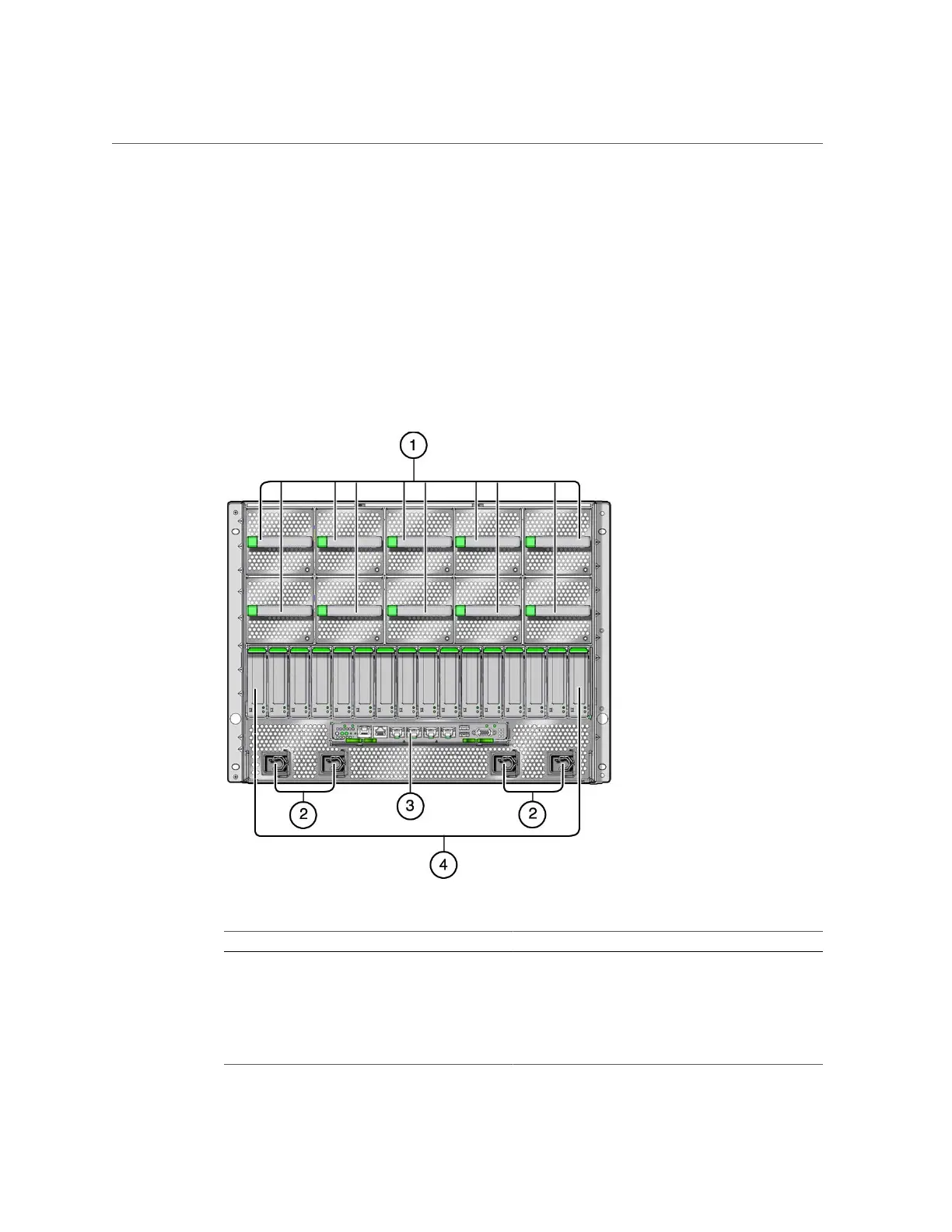

Rear Panel Components (Service)
After you install the server into the rack, you must access these components from the rear of the
server. These components are not part of the rear chassis subassembly. You must remove these
components to access the rear chassis subassembly.
No. Description Links
1 Fan modules (10) “Servicing Fan Modules”
“Fan Module Locations” on page 20
2 AC power connectors (0 to 3, right to left) “Servicing the Rear Chassis Subassembly”
3 Rear I/O module “Servicing the Rear I/O Module”
4 PCIe carriers (1 to 16, left to right) “Servicing PCIe Cards”
