Remove the Battery

124 SPARC T5-8 Server Service Manual • November 2015

Take the necessary ESD precautions.

See “Prevent ESD Damage” on page 57.

Remove the main module.

See “Remove the Main Module” on page 91.

Locate the system battery in the main module.

See “Main Module Internal Component Locations” on page 17.

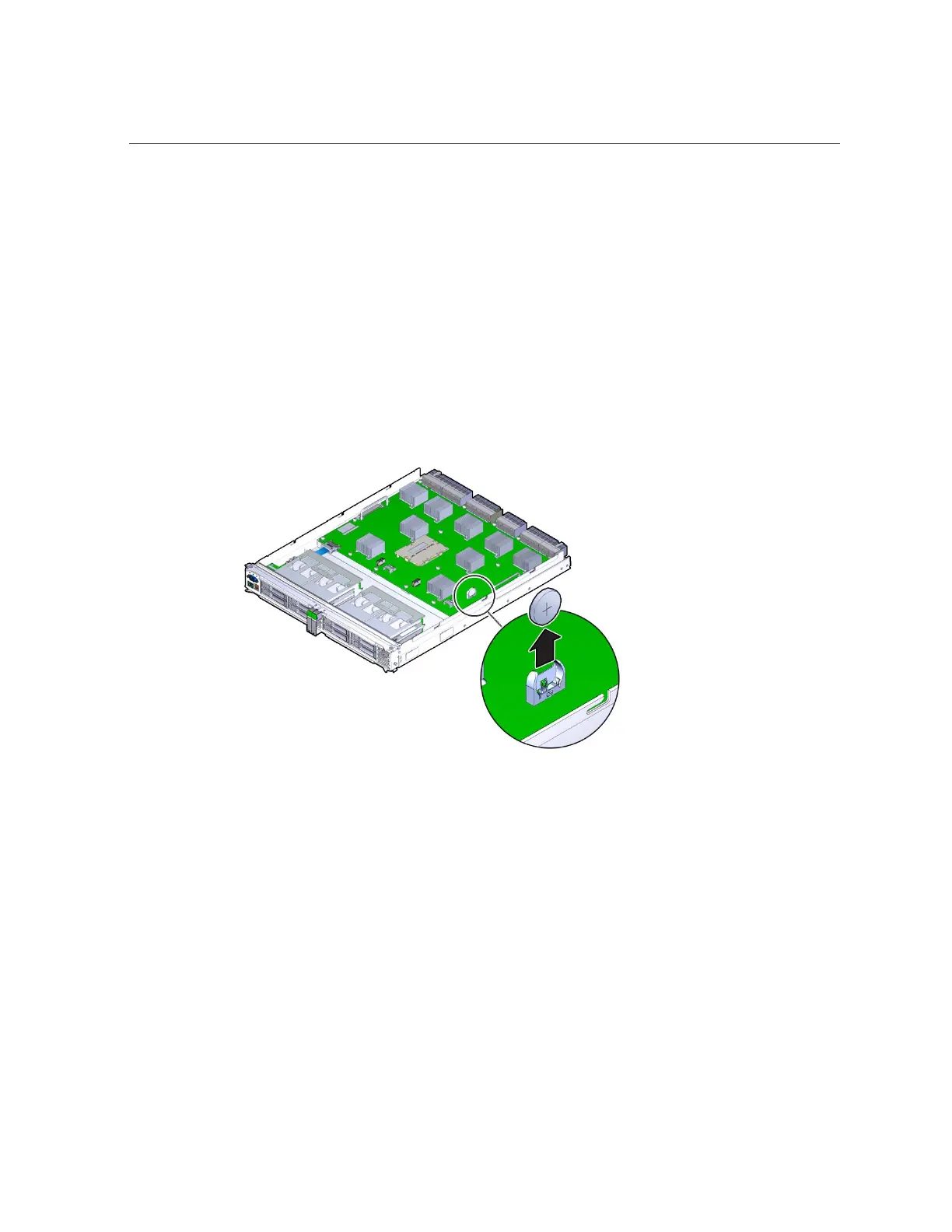

Push the top edge of the battery against the spring and lift it out of the carrier.

Related Information

■

“Install the Battery” on page 125

■

“Verify the Battery” on page 126
