Remove a Power Supply

136 SPARC T5-8 Server Service Manual • November 2015

4.

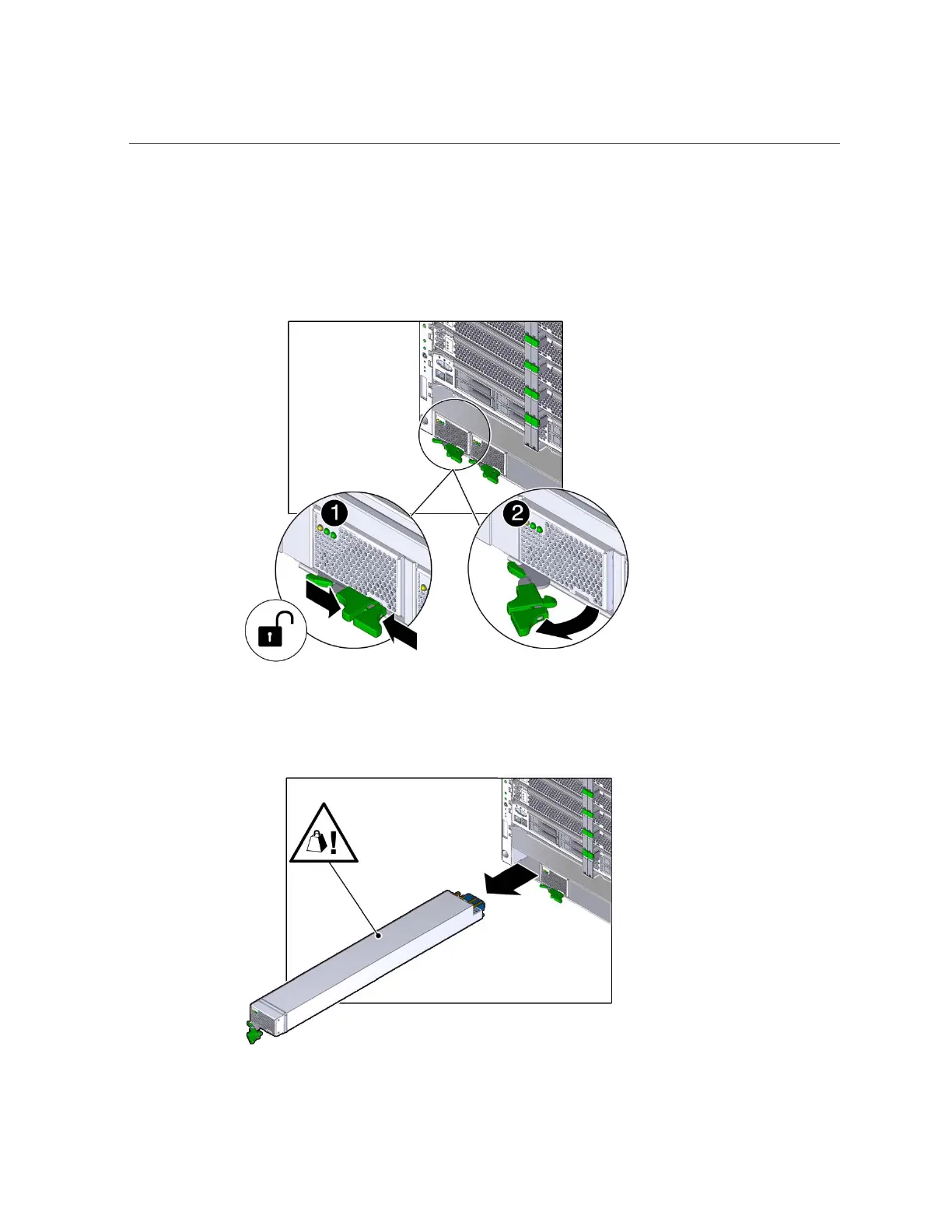

At the front of the server, squeeze the release latches together on the power

supply to be removed, then pull the extraction lever toward you to disengage the

power supply.

5.

Pull the power supply out of the server.
