Remove a DIMM or DIMM Filler Panel
Servicing DIMMs 77
Caution - Do not leave DIMM slots empty. All of the DIMM slots must have a DIMM.
1.
Take the necessary ESD precautions.
See “Prevent ESD Damage” on page 57.
2.
Remove the PM with the faulty DIMM.
See “Remove a Processor Module or Processor Filler Module” on page 63.
3.
Locate the DIMMs that need to be replaced.
See “Determine Which DIMM Is Faulty (FMA)” on page 73 or “Determine Which DIMM
Is Faulty (LEDs)” on page 75.
4.

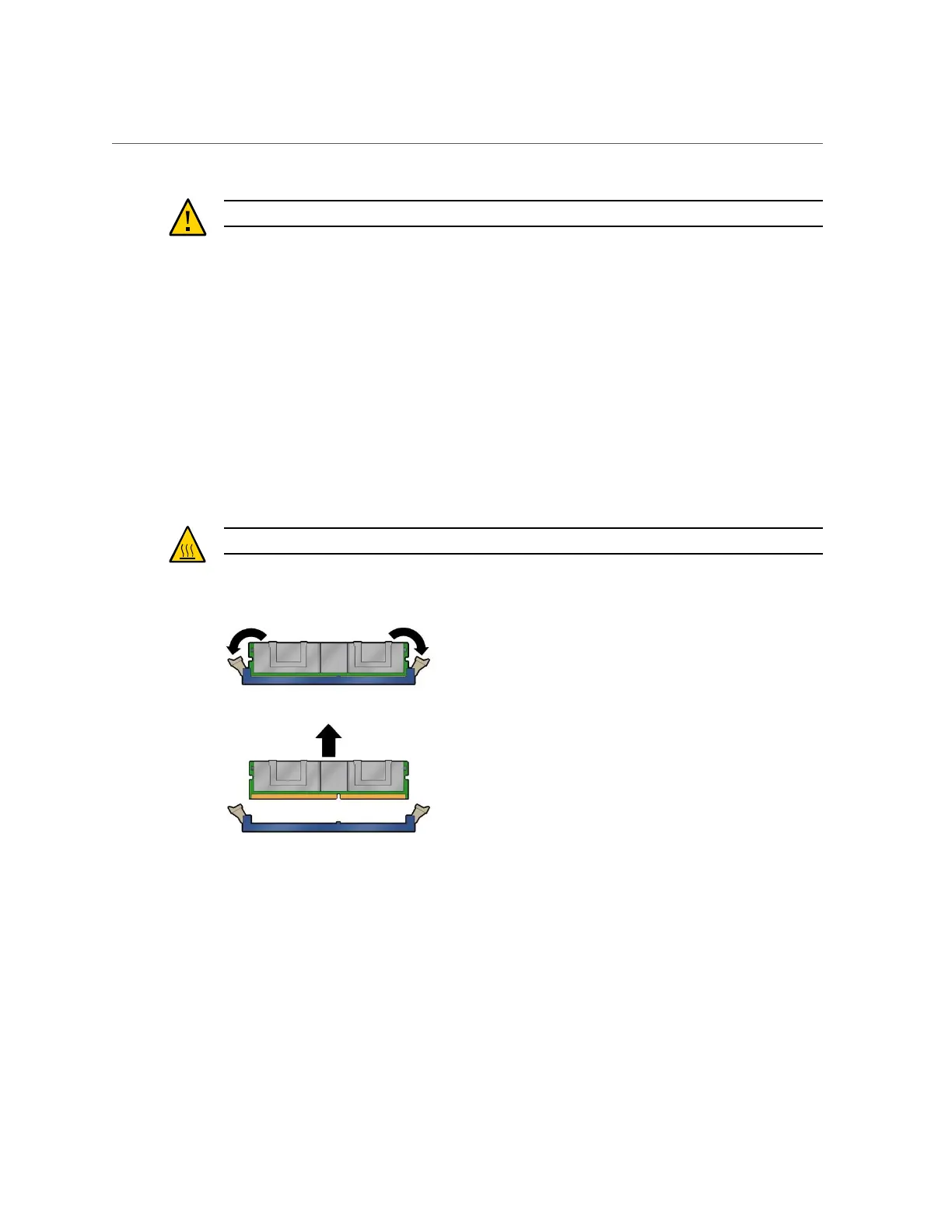

Push down on the ejector tabs on each side of the DIMM until the DIMM is
released.
Caution - DIMMs and heat sinks on the motherboard might be hot.
5.
Grasp the top corners of the faulty DIMM, and lift it out of its slot.
6.
Place the DIMM on an antistatic mat.
7.
Repeat Step 4 through Step 6 for any other DIMMs that you intend to remove.
8.
Determine your next step.
■
If you are replacing a faulty DIMM, see “Install a DIMM” on page 78.
