InfiniBand cards, then the onboard 10GBase-T (Copper) ports are used for the
interconnect.
Attaching Supplied Cables for Oracle Database Appliance
If you are using Oracle Database Appliance with a single storage shelf, attach the
interconnect cables.
Topics:
• Attaching Cables for Oracle Database Appliance X6-2-HA
Use the diagram in this topic to understand how to attach cable connections
between ports on Oracle Database Appliance X6-2-HA.
• Cabling Oracle Database Appliance to Connect to Fiber Public Networks
(Optional)
You can configure Oracle Database Appliance X6-2-HA to use 10GbE SFP+
(fiber) connections for the public network if you ordered the configuration that
contains 10GbE SFP+ (fiber) cards instead of InfiniBand cards.
Attaching Cables for Oracle Database Appliance X6-2-HA
Use the diagram in this topic to understand how to attach cable connections between
ports on Oracle Database Appliance X6-2-HA.
Single Shelf
The back panel of each node contains three PCIe generation 3 terminal slots, with two
sockets in each slot. The PCIe slots are labeled X PCIe3, where X is the PCIe slot
number.

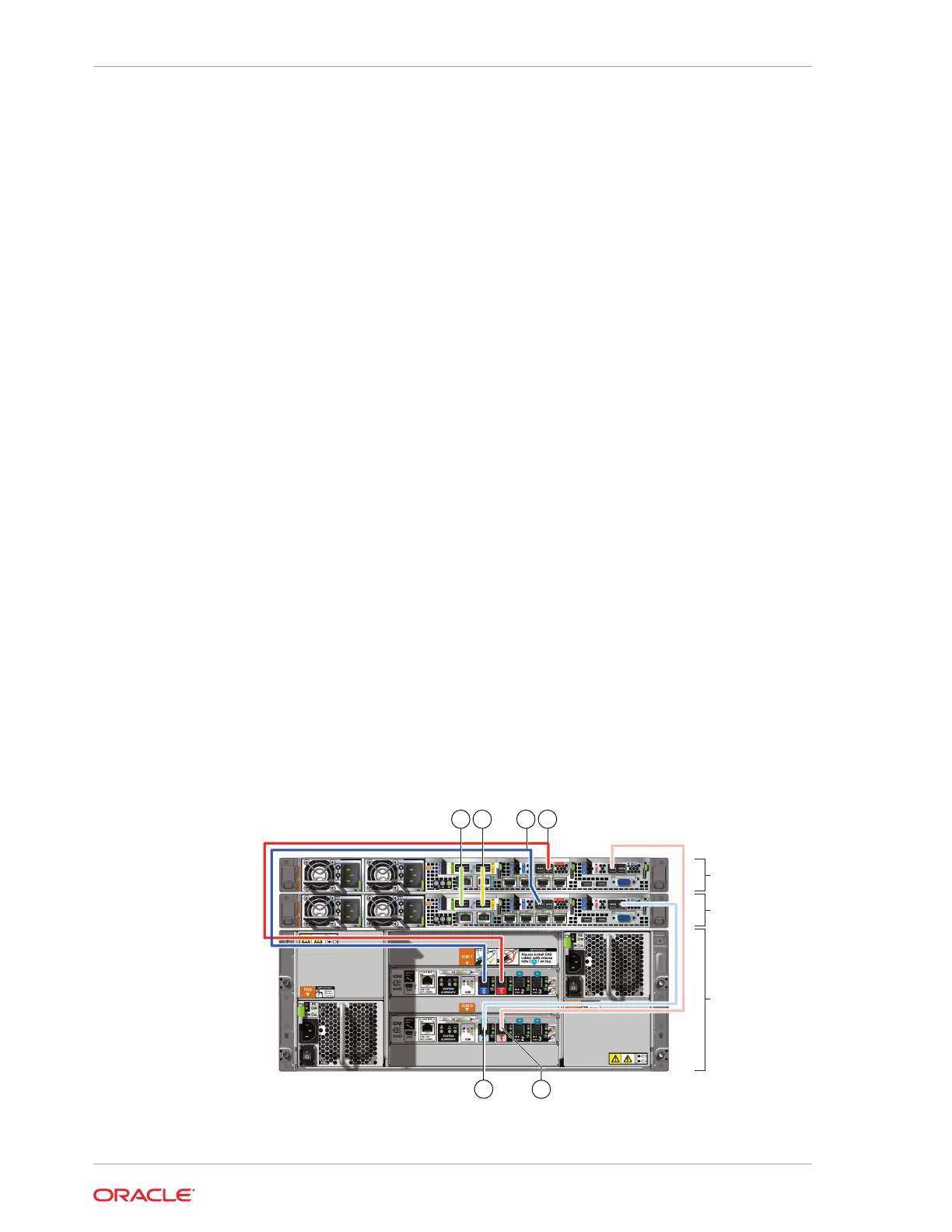

The following figure illustrates the cable connections between ports on Oracle
Database Appliance X6-2-HA in a single storage shelf. The cables are color-coded.
Match the colors of the labels at the ends of each cable with the colored line shown in
the following illustration. Also match the cable colors to the background colors of the
socket identification labels.
Node 1
Node 0
Storage
Shelf
21 53
4
6
Chapter 3
Attaching Supplied Cables for Oracle Database Appliance
3-2
