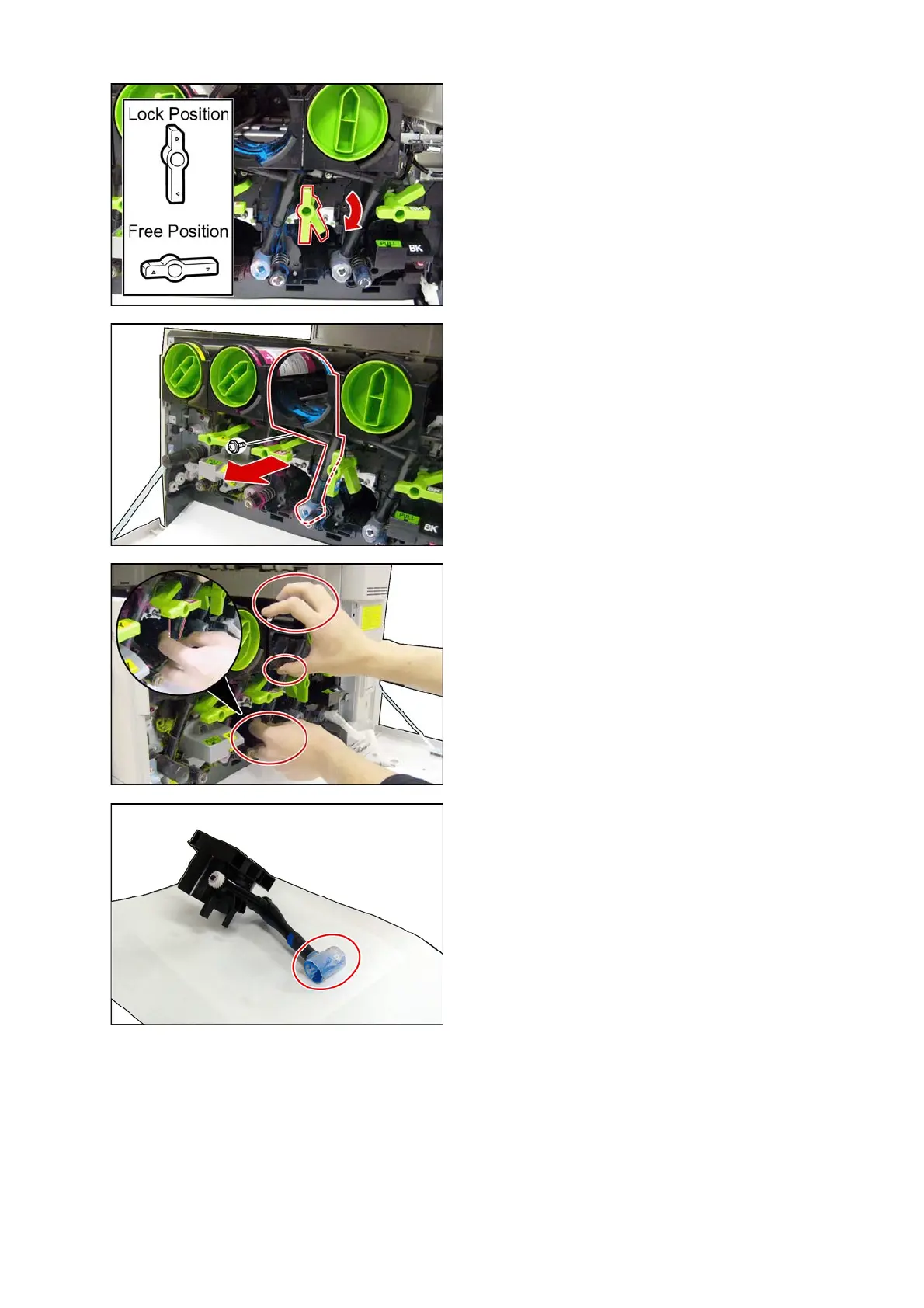

(14) Lock the Drum Unit by turning the Drum Release
Knob clockwise.
Note:
This step eases the removal of the Hopper Unit in
the next step.
(15) Remove 1 Screw (Y13).
(16) Remove the Hopper Unit as illustrated.
Note:
Pull the bottom portion out by clasping with the left
forefinger.
<Cleaning the Supply Cylinder>
(17) Clean the Supply Cylinder with a Vacuum
cleaner.
To Next Page
