148
DP-C405/C305/C265
FEB 2008Ver. 1.1

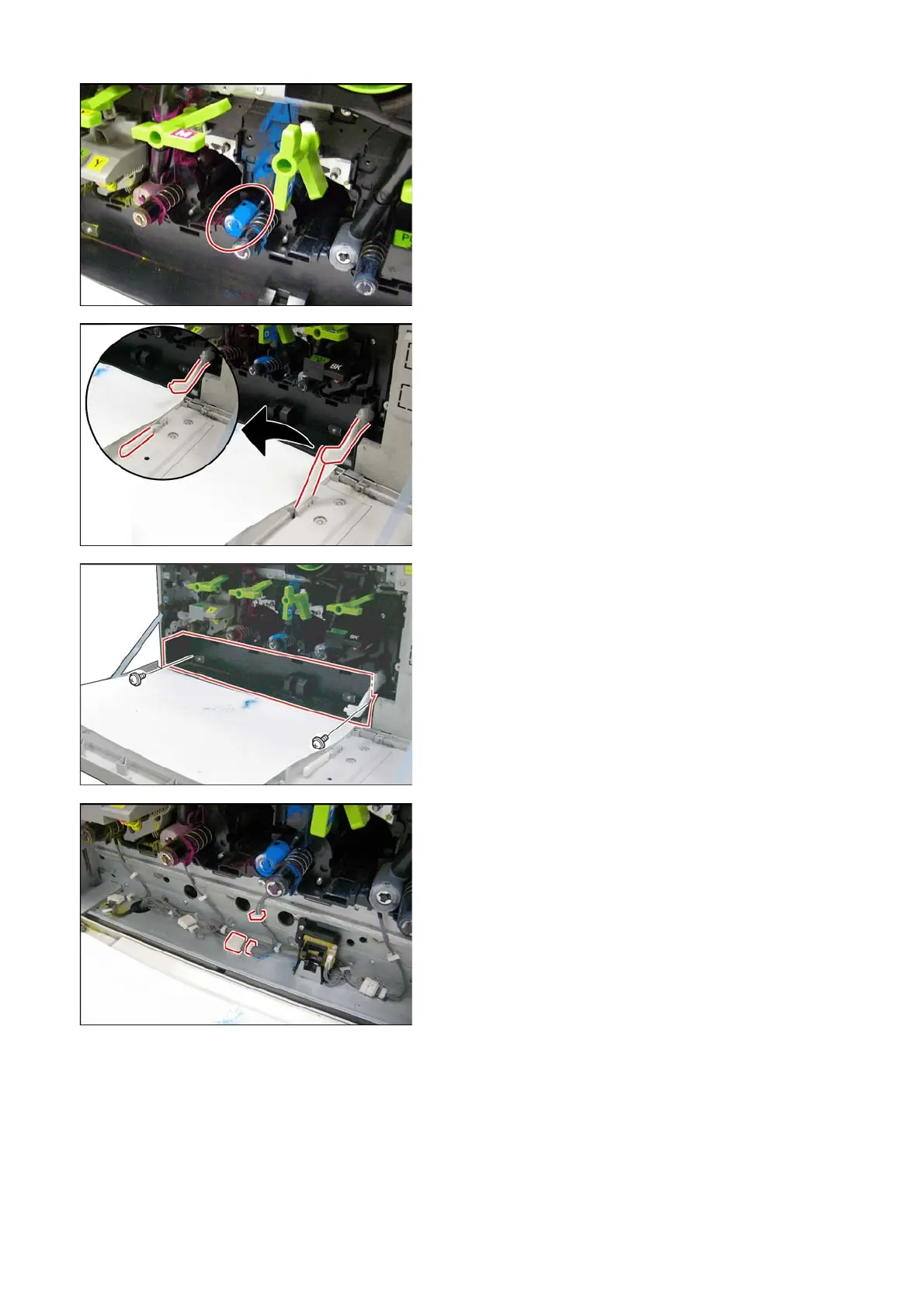

(18) Clean the Toner Entrance with a Vacuum
cleaner.
(19) Release the Lever Arm.
(20) Remove 2 Screws (Y1).
(21) Remove the WTC Lower Cover (4401).
(22) Release 2 Harness Clamps.
(23) Disconnect the Developer Harness.
To Next Page
