6. Take the outer guide (non-operator side), position it 1/4-inch (12.7 mm) from the top seam of the
envelope and use the operator setup tool to tighten the Allen screws.
Item Description
1 Non-operator Side Guide (outer)
2 Top Seam of Envelope
3 1/8-inch Gap
4 Operator Side Guide (inner)

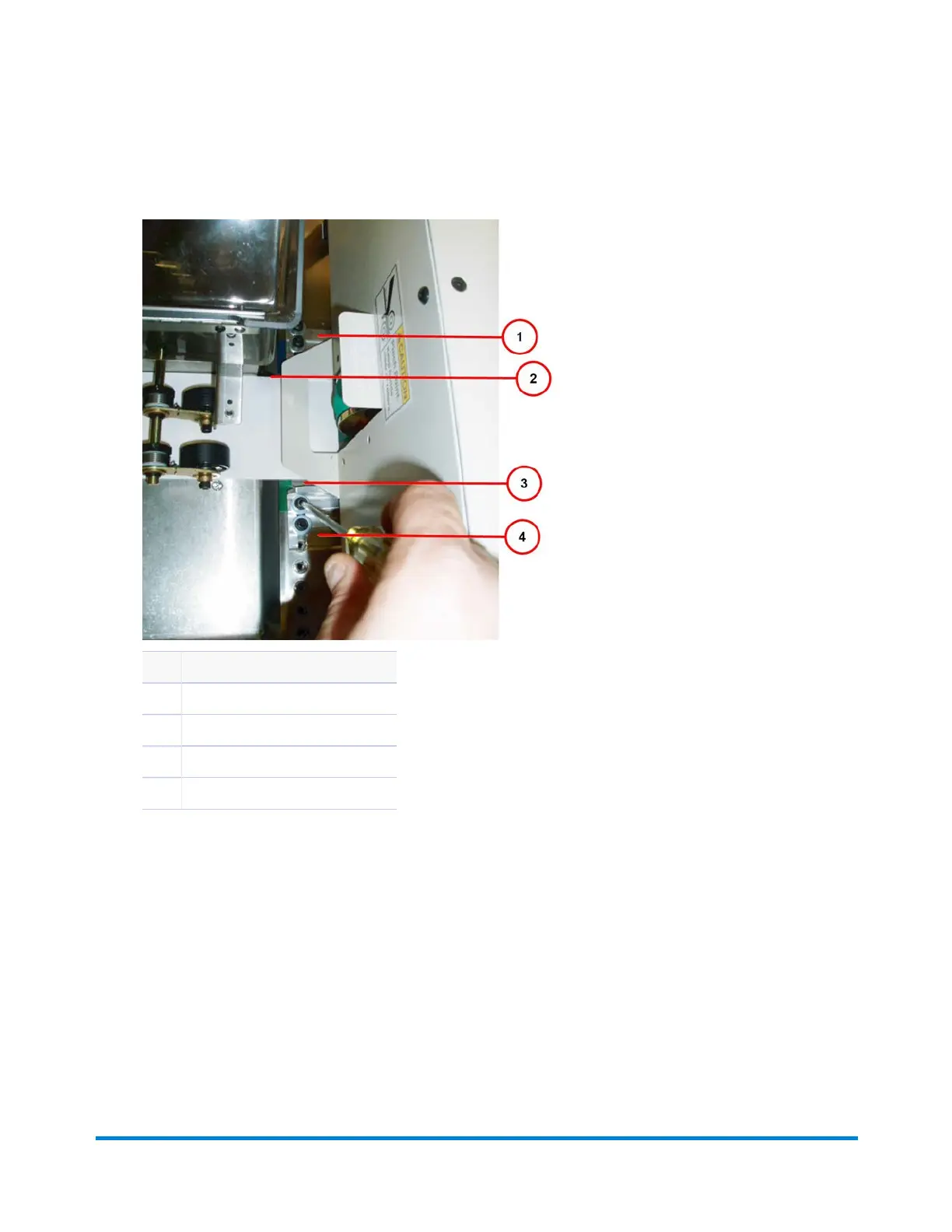

Positioning of the Inner and Outer Guides
7. Take the inner guide (operator side) and position it 1/4-inch (6.3 mm) away from the bottom seam
of the envelope and use the operator setup tool to tighten the cap head screws.
Operator Adjustments
