Setting Up the RAT (Right Angle Transfer)
The RAT changes the direction of the envelope 90 degrees to be transported downstream to the output.
Adjusting the Roller Tension
This is the only operator adjustment in the RAT area.
1. Open the engine and sealer top covers.
2. Locate the adjustable roller locking screw for the two exit rollers.
Item Description
1 Tensioner
2 Locking Screw

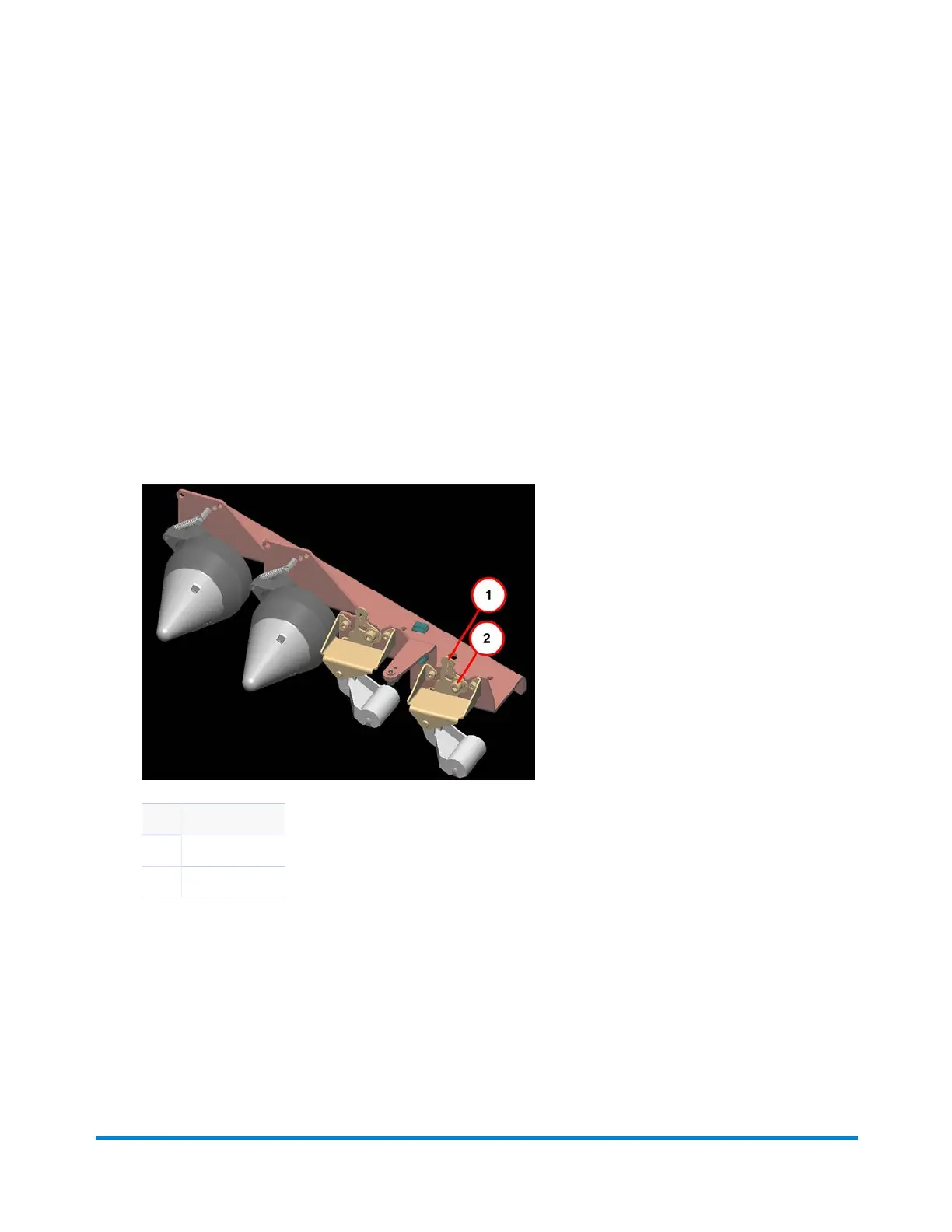

RAT Roller Tension and Locking Screw
3. Using a 3/16" setup tool, loosen the locking screw.
4. With the locking screw loose, adjust the tension of the roller. (The left side is lighter, press to the
right is more pressure.)
5. Tighten the locking screw.
Operator Adjustments
