Setting the Suction Cup Position
1. Jog the feeder so the arm is in the horizontal position.
2. Loosen the suction cup arm locking screw.
3. Using the scale on the suction cup arm, move the arm to get the suction cups in the proper
position.

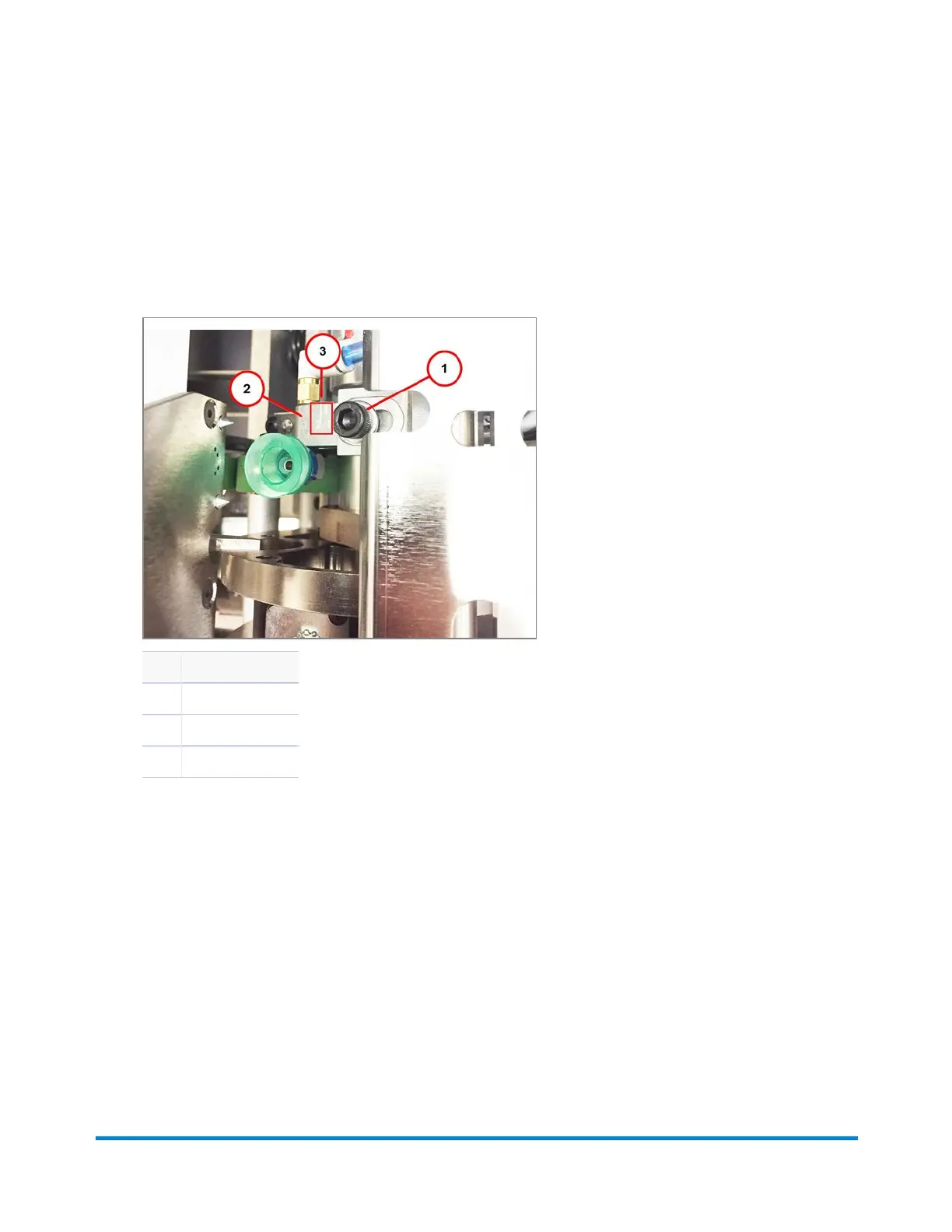

Item Description
1 Locking Screw
2 Suction Cup Arm
3 Scale
Position Suction Cup
Operator Adjustments
