Enclosure Specifications
Measurements Minimum Maximum
Length (Depth) 3.0" (76 mm) 9.0" (229 mm)
Width 5.5" (140 mm) 12.0" (305 mm)
Total Enclosure Thickness
- Max Speed
.0038" (0.81 mm) .375" (10 mm)
l Enclosure dimensions should not vary more than +/- .03125" (1 mm).
l Enclosure curl or twist should not exceed .125” (3 mm) when enclosure is placed on a flat surface.
Contact the Engineering Group in Danbury if an application falls outside the specifications

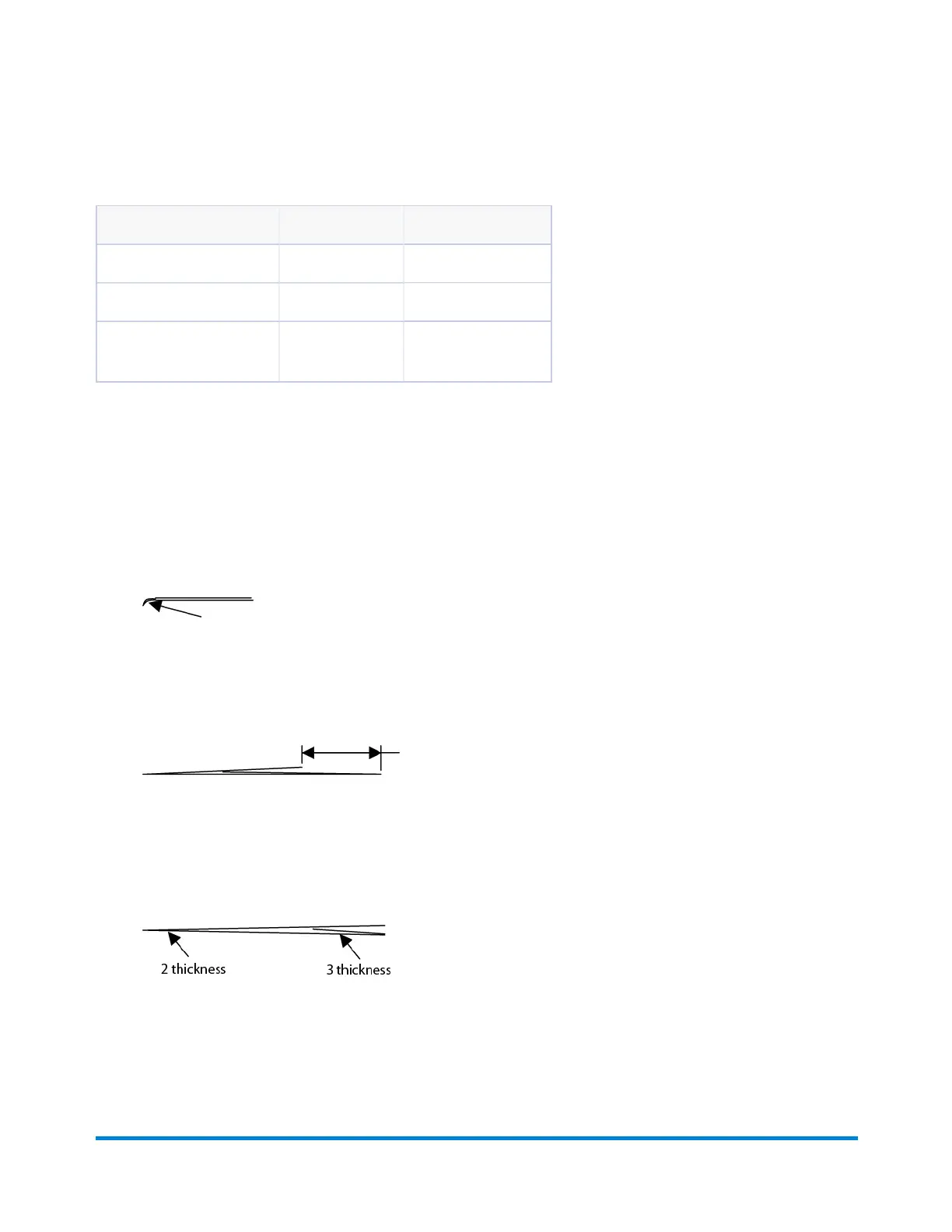

Folded Enclosures Specifications
l Folds should be sharply creased, flat, and free of edge curl
Curl at Fold
l Folds must not result in the free ends being greater than .25" (6 mm) from a fold
Free Ends at 1/4-inch (6 mm) Maximum
l Short folds that result in either the leading or trailing edge being one and one half times as thick or
thicker than the opposite edge are not allowed (see diagram).
Specifications
