4. Place the thickest collation (or largest number of panels) under the tongue.

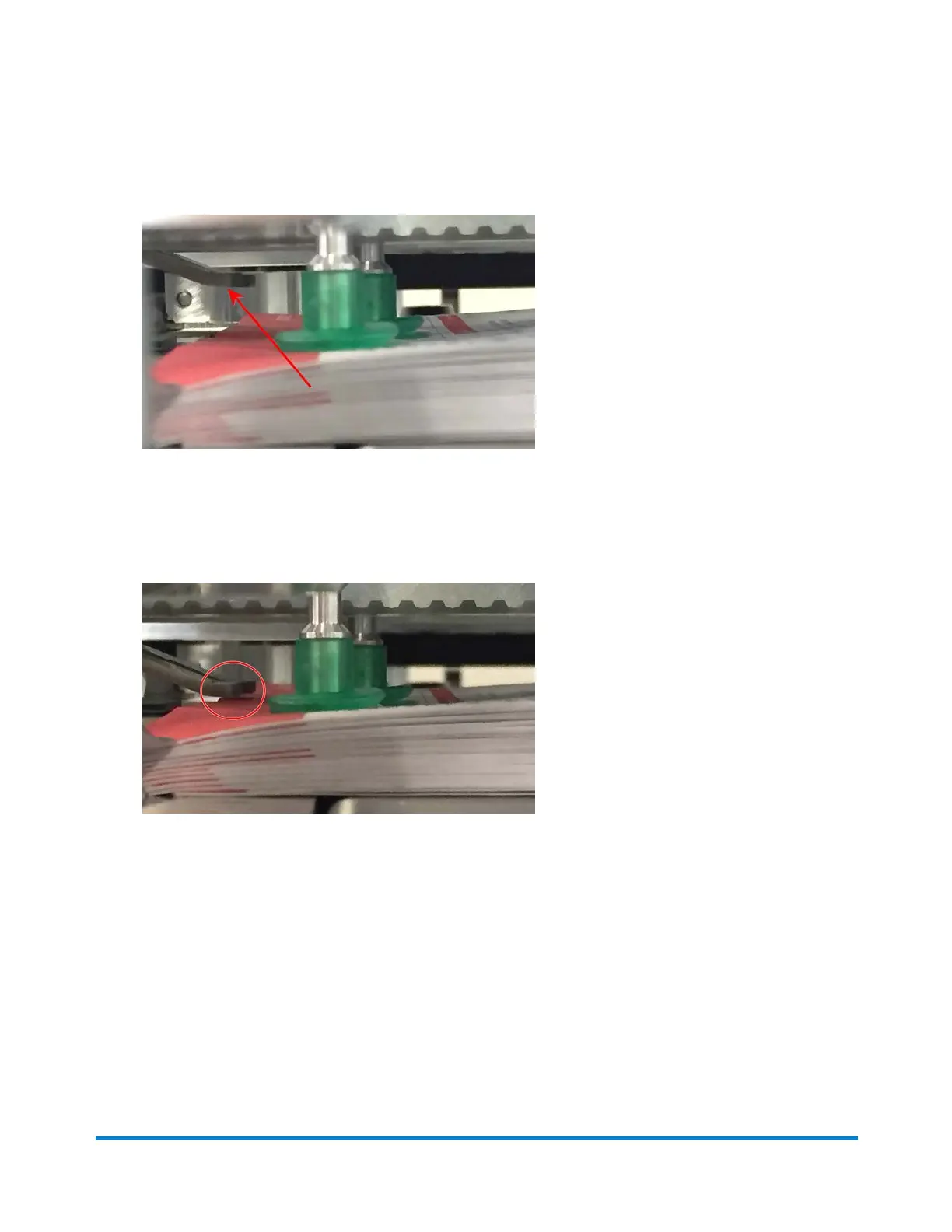

Tongue to Collation Location
5. Close the upper engine and with the collation under the tongue, adjust the tongue (up or down) so
there is a no drag, to about a 1 to 2 mm gap.
Small Gap (1 to 2 mm) between Tongue and Collation
6. Remove all material from under the tongue and insert area.
7. Lower the upper engine.
8. Close the engine cover.
Operator Adjustments
Pitney Bowes Epic v3.1 (ZVE0) Operator Guide May, 2018 Page 64 of 328
