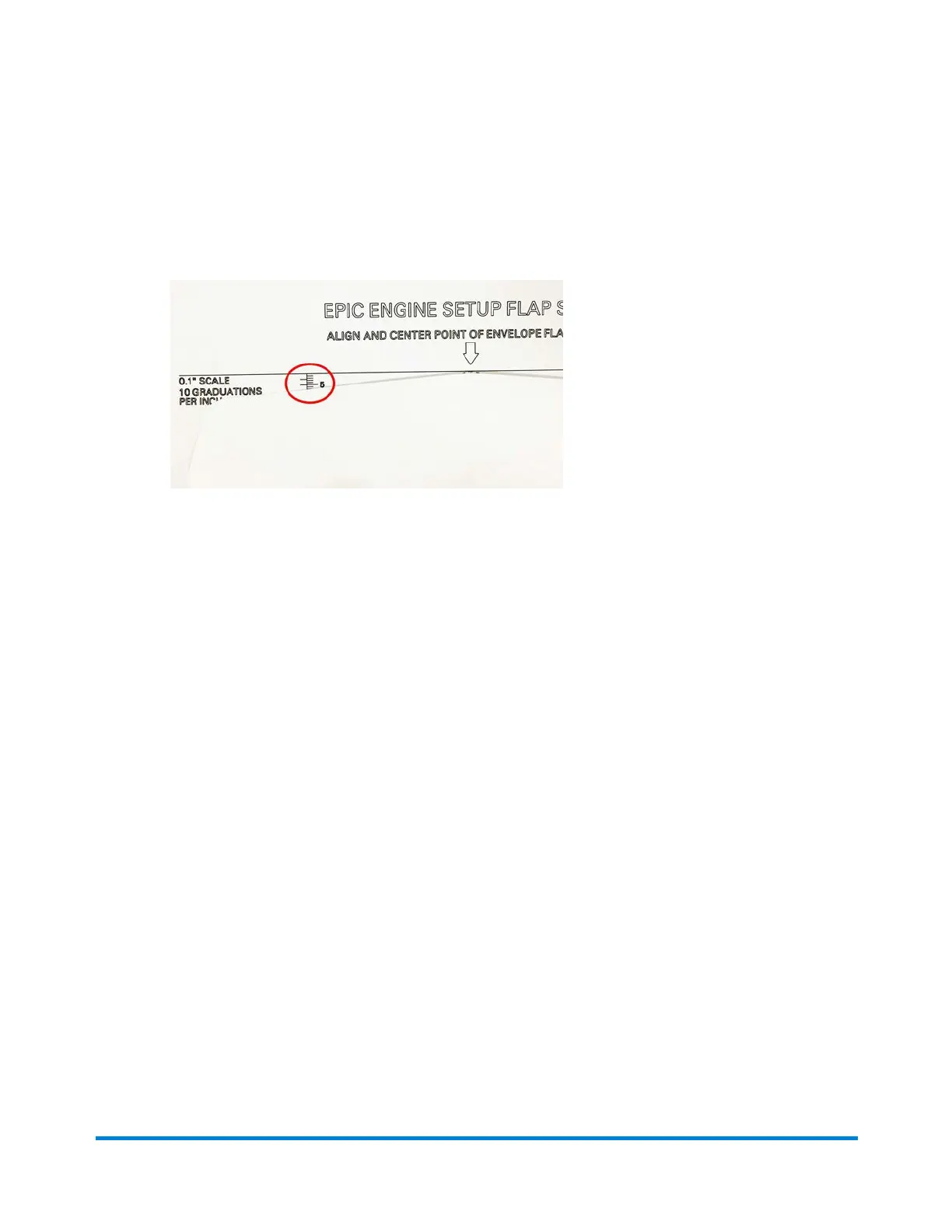

6. Hold the envelope in position (shown above) and locate the flap delta scale to either the right or left
of the center. Record the measurement seen where the flap crosses this scale.
l Left side of the scale is in inches and should be recorded as .1, .2, .3, .4, .5, .6, .7, etc.
l Right side of the scale is in millimeters.
In this Example - Flap Delta is .7 inches
7. Enter the value of the Flap Delta (measured in step #6) in the Engine Setup screen.
Operator Adjustments
