User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
Setup steps

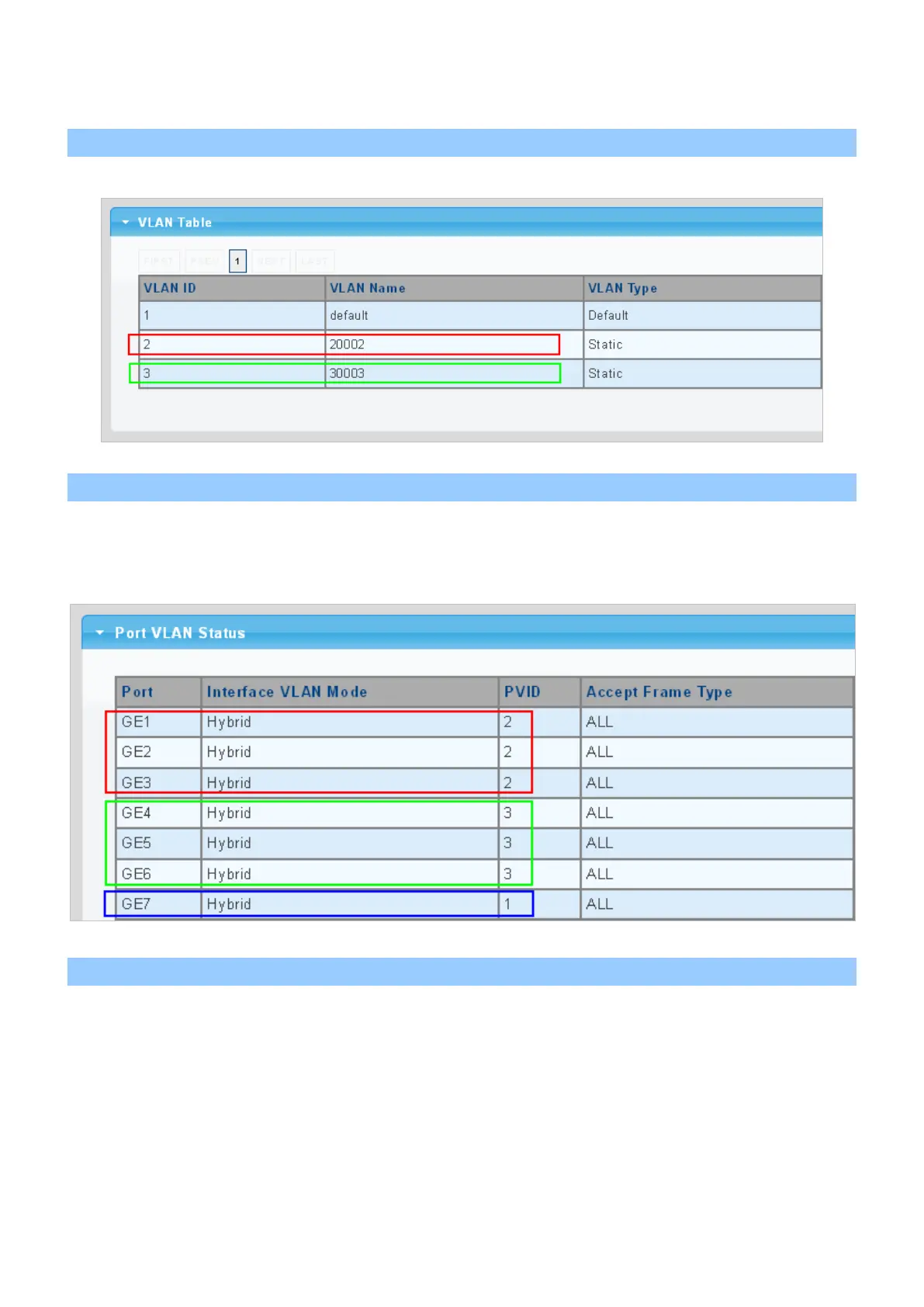

1. Create VLAN Group 2 and 3
Add VLAN group 2 and group 3
2. Assign VLAN mode and PVID for each port:
Port-1,Port-2 and Port-3 : VLAN Mode = Hybrid, PVID=2
Port-4,Port-5 and Port-6 : VLAN Mode = Hybrid, PVID=3
Port-7 : VLAN Mode = Hybrid, PVID=1
3. Assign Tagged/Untagged for each port:
VLAN ID = 1:
Port-1~6 = Untagged,
Port -7 = Excluded.
To Next Page
