• Ingress Committed
Information Rate
(CIR)
Allow input a number as ingress committed information rate.
• Ingress Committed
Burst Size (CBS)
Allow input a number as ingress committed burst size.
• Exceed Action
Choose “Forward” or “Drop” when the exceed action situation appears.
Button
: Click to add policy class maps profile entry.

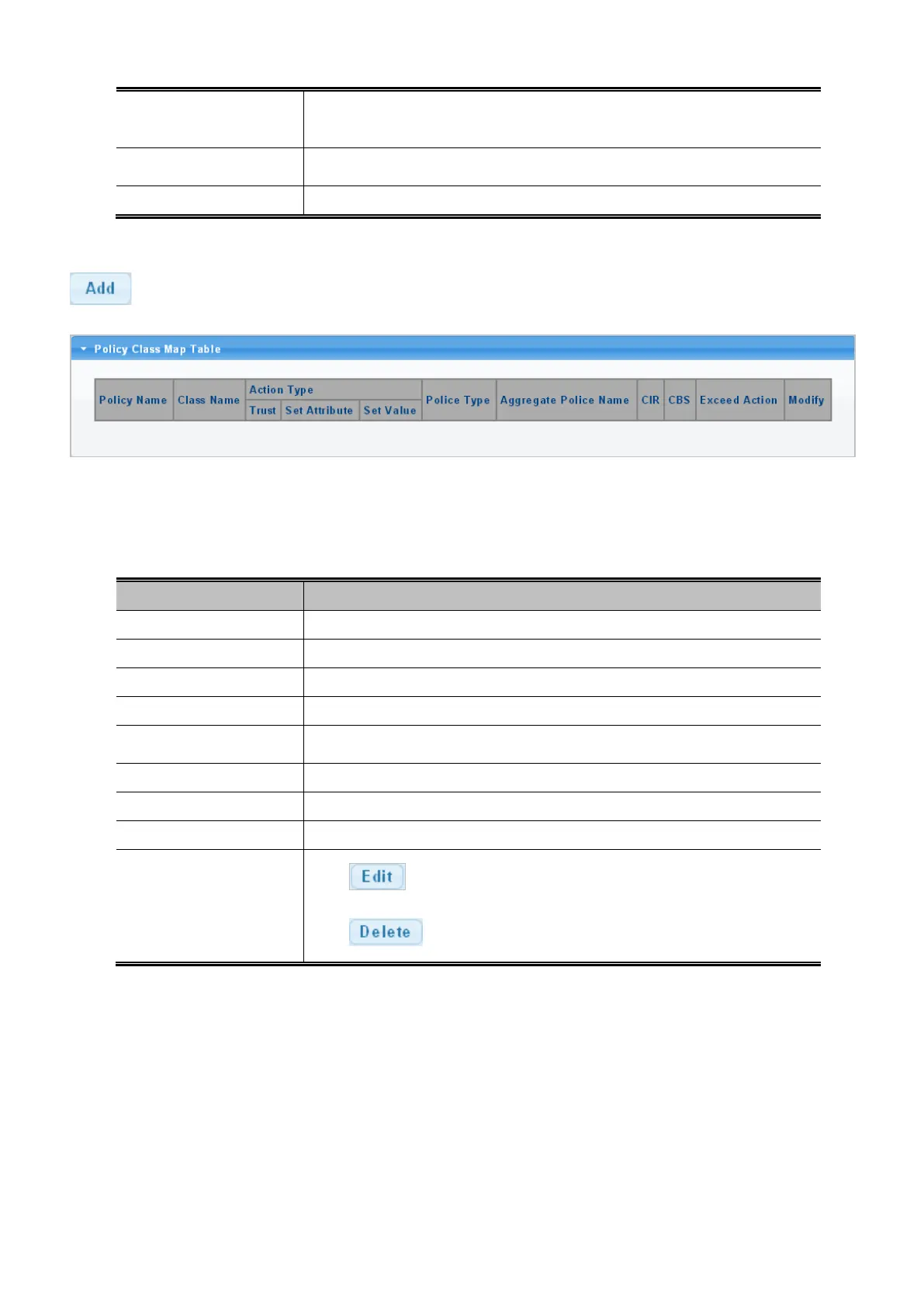

Figure 4-8-26: QoS Policy Class Map Table Page Screenshot
The page includes the following fields:
Object Description
• Policy Name
Display the current policy name information.
• Class Name
Disaply the current class name information.
• Action Type
Disaply current “Trust”, “Set Attribute” and “Set Value” information.
• Police Type
Display current policy type information.
• Aggregate Police
Name
Display current Aggregate Police Name information.
• CIR
Display current CIR information.
• CBS
Display current CBS information.
• Exceed Action
Display current exceed action information.
• Modify
Click to edit parameter.
Click to delete the policy class maps profile entry.
