Button
: Click to add MAC-Based ACE setting.

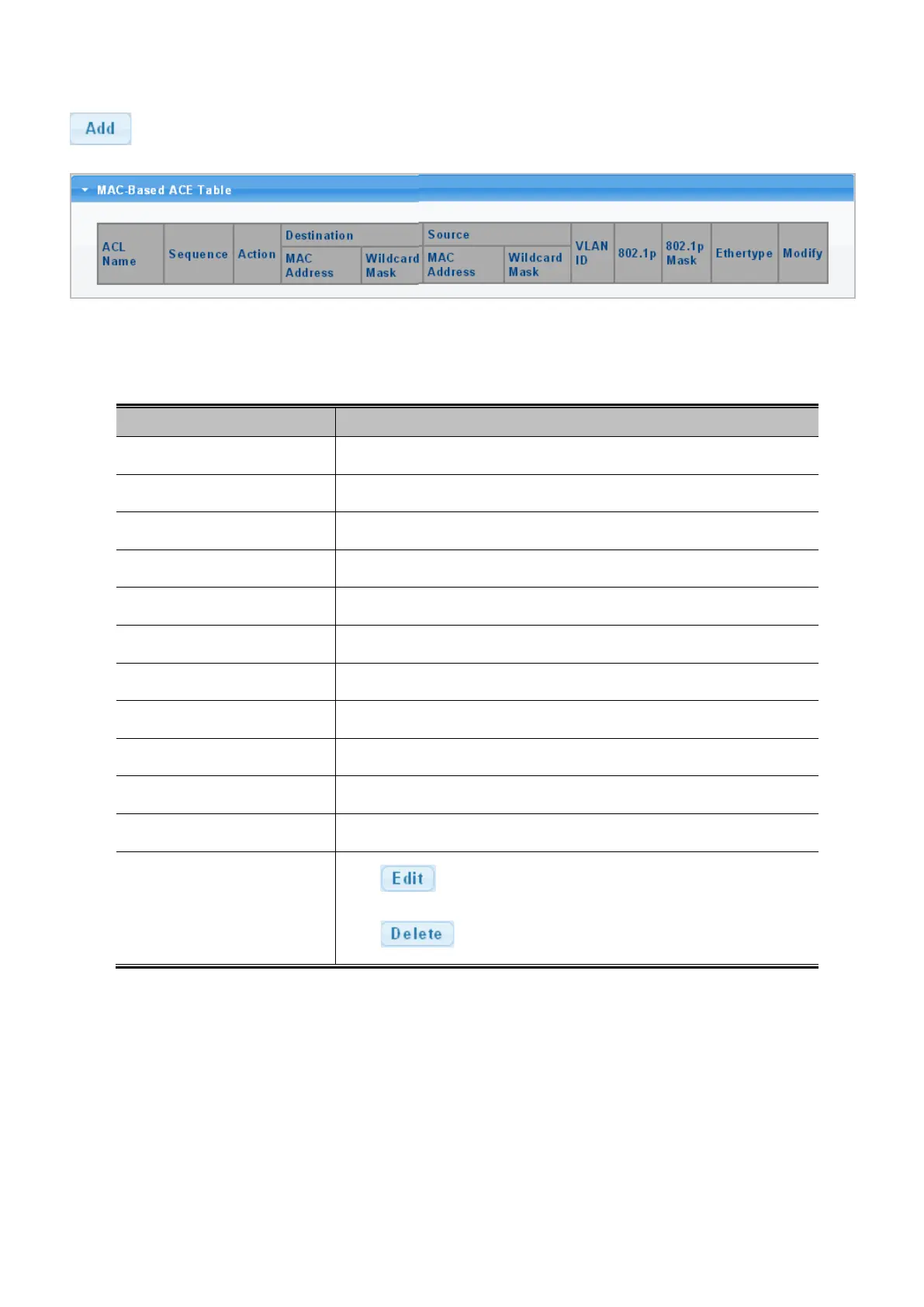

Figure 4-10-4: MAC-Based ACE Table Page Screenshot
The page includes the following fields:
Object Description
• ACL Name
Display the current ACL name.
• Sequence
Display the current sequence.
• Action
Display the current action.
• Destination MAC Address
Display the current destination MAC address.
• Destination Wildcard Mask
Display the current destination wildcard mask.
• Source MAC Address
Display the current source MAC address.
• Source Wildcard Mask
Display the current source wildcard mask.
• VLAN ID
Display the current VLAN ID.
• 802.1p
Display the current 802.1p value.
• 802.1p Mask
Display the current 802.1p mask value.
• Ethertype
Display the current Ethernet type.
• Modify
Click
to edit MAC-Based ACE parameter.
Click to delete MAC-Based ACE entry.
