LED Indication

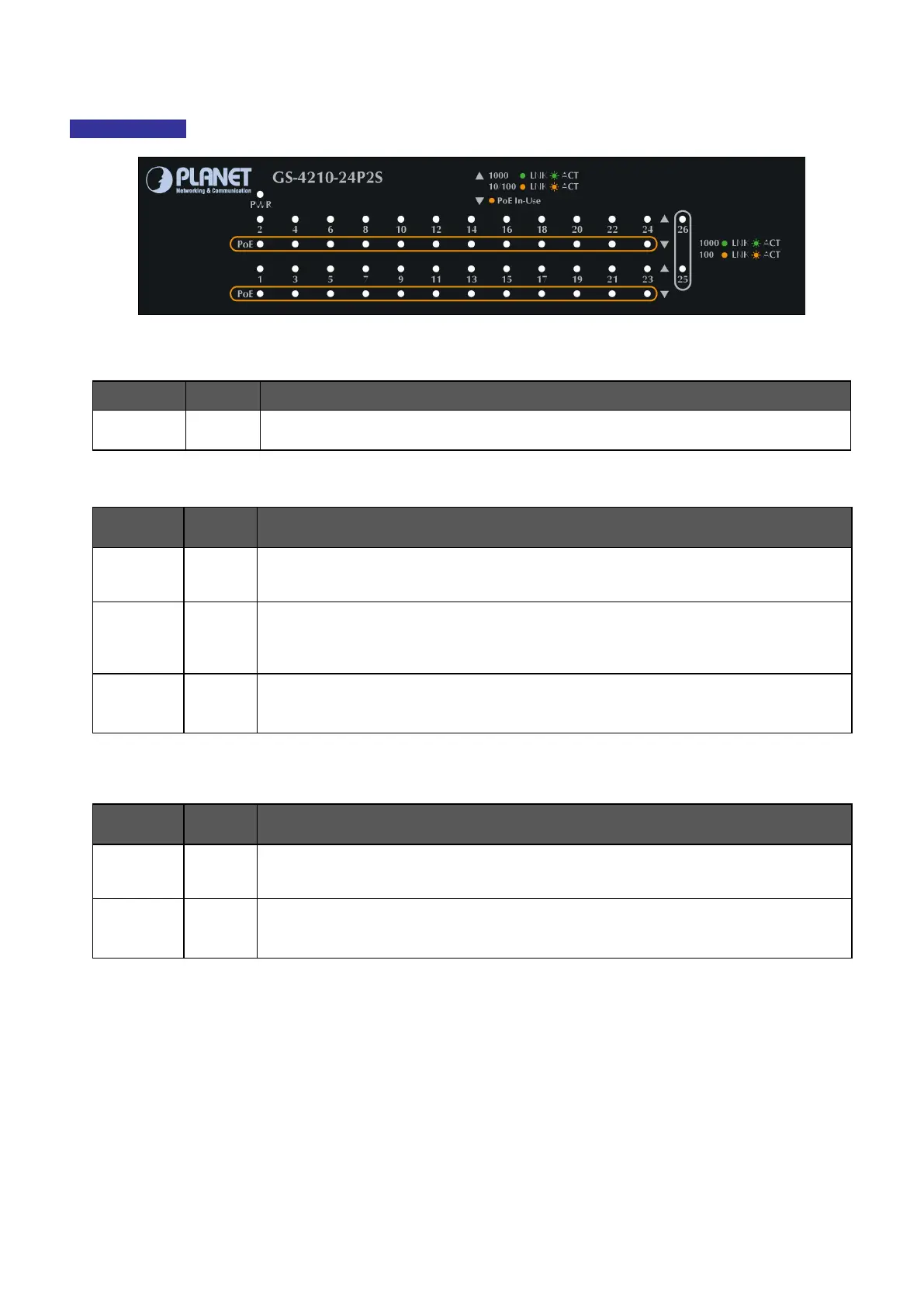

Figure 2-1-10: GS-4210-24P2S LED Panel
■ System
LED Color Function
PWR Green
Lights
to indicate that the Switch has power.
■ 10/100/1000BASE-T Interfaces
LED
Color Function
1000
LNK/ACT
Green
Lights:
To indicate the link through that port is successfully established at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
10/ 100
LNK/ACT
Orange
Lights:
Blinks:
To indicate the link through that port is successfully established at 10Mbps or
100Mbps.
To indicate that the switch is actively sending or receiving data over that port.
PoE-in-Use Orange
Lights: To indicate the port is providing 52V DC in-line power.
Off: To indicate the connected device is not a PoE Powered Device (PD)
■ 100/1000BASE-X SFP Interfaces
LED
Color Function
1000
LNK/ACT
Green
Lights:
To i ndicate the link through that port is successfully established at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
100
LNK/ACT
Orange
Lights: To indicate the link through that port is successfully established at 100Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
