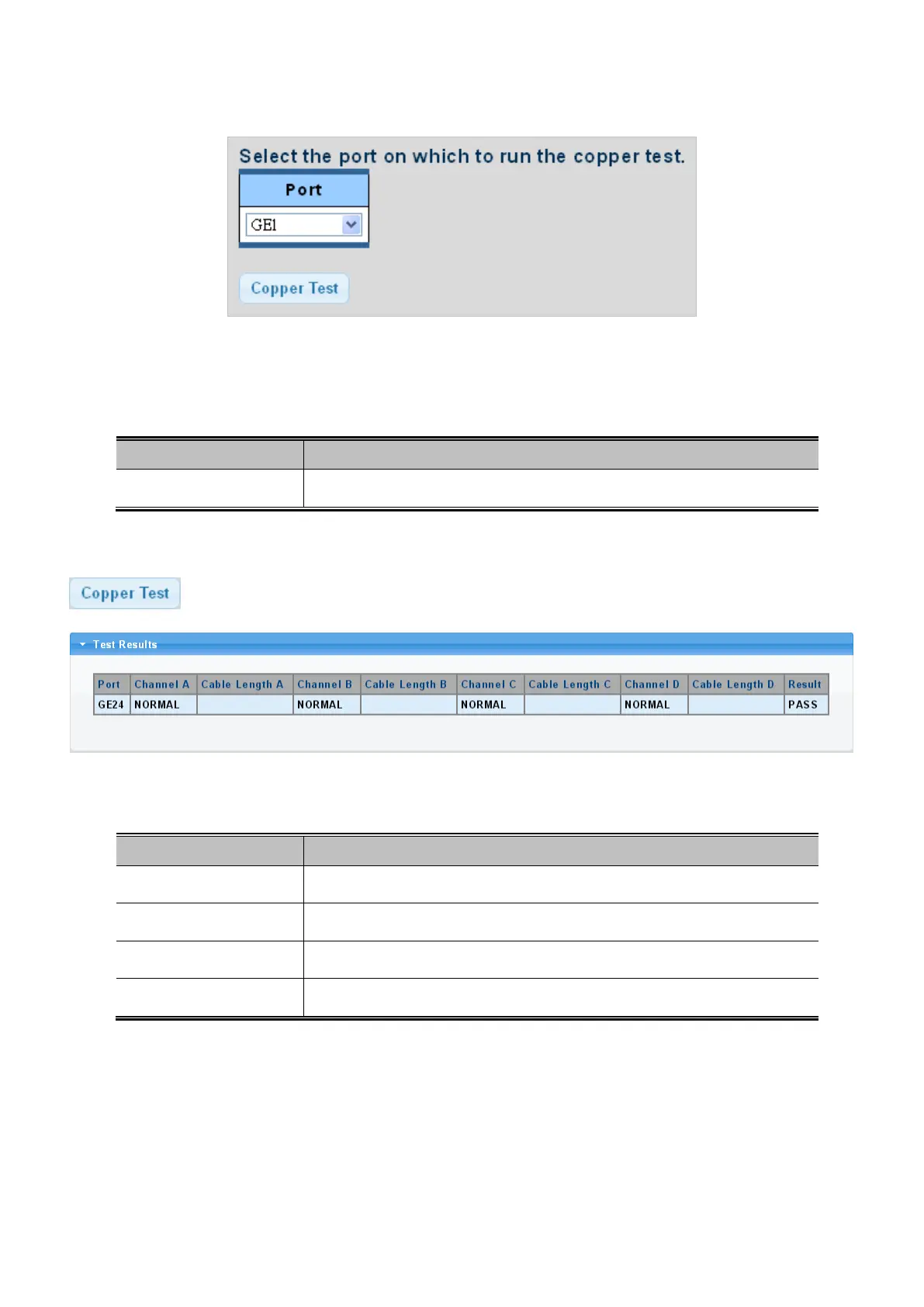

The Copper test and test result screens in Figure 4-13-1 and Figure 4-13-2 appear.
Figure 4-13-1: Copper Test Page Screenshot
The page includes the following fields:
Object Description
• Port
Select port for this drop down list
Button
: Click to run the diagnostics
Figure 4-13-2: Test Results Page Screenshot
The page includes the following fields:
Object Description
• Port
The port where you are requesting Cable Diagnostics.
• Channel A~D
Display the current channel status.
• Cable Length A~D
Display the current cable length.
• Result
Display the test result.
