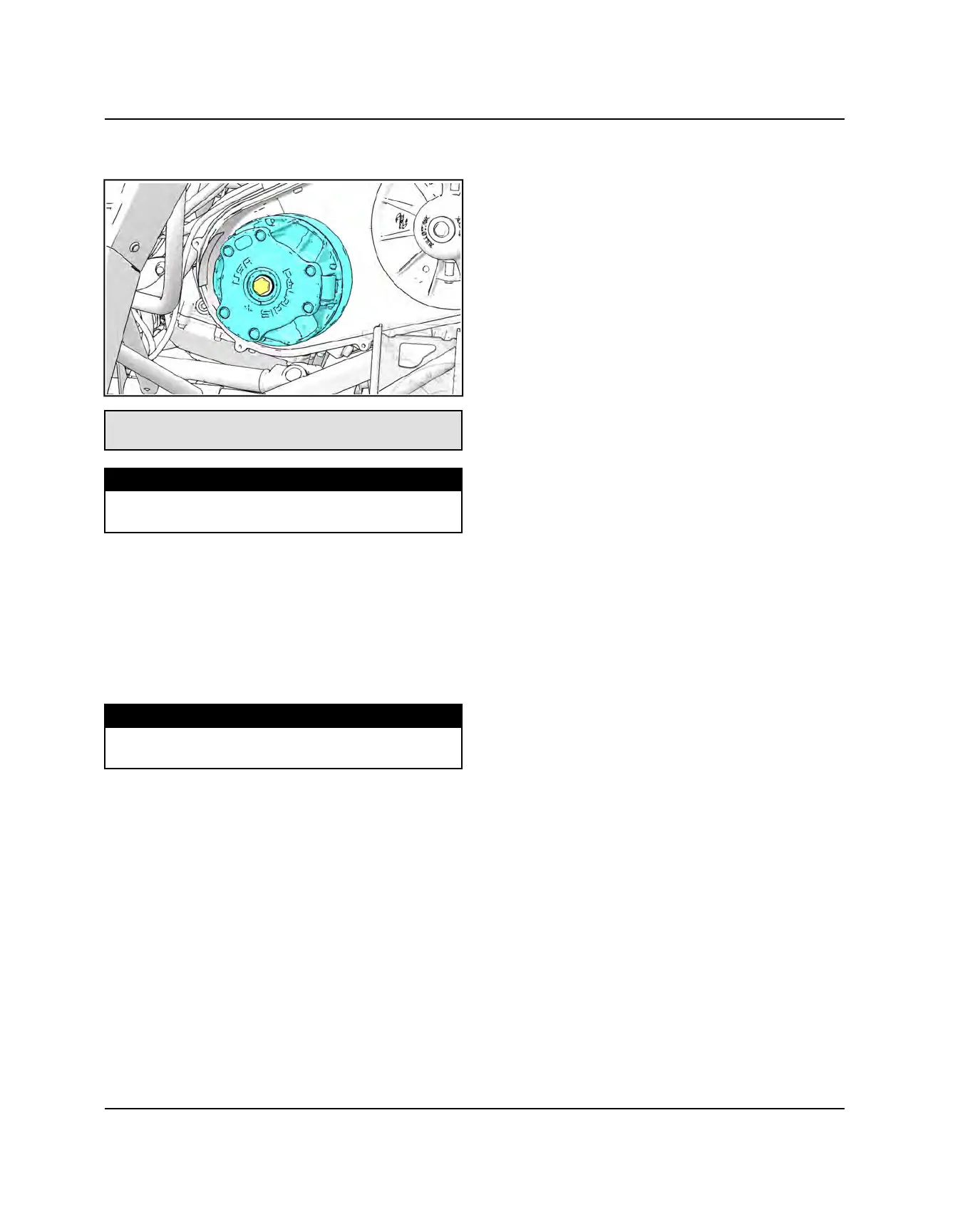

14.Install the Drive Clutch Holding Tool and torque the
retaining bolt to specification.
Drive Clutch Holding Tool:
9314177–A
TORQUE
Drive Clutch Retaining Bolt:
96 lb-ft (130 Nm)
15.Install the drive belt noting direction of belt rotation,
refer to “Drive Belt Installation” page 6.12
procedure. If a new belt is installed, install so
numbers can be easily read.
16.Install a new outer clutch cover seal with the colored
stripe facing the inner clutch cover.
17.Reinstall outer clutch cover and secure with screws.
Torque screws to specification.
TORQUE
Outer Clutch Cover Screws:
4.5 lb-ft (6 Nm)
18.Install inlet and outlet ducts and tighten hose clamps.
19.Install the left rear wheel. Refer to “Wheel
Installation” page procedure.
PVT SYSTEM
