7.24
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

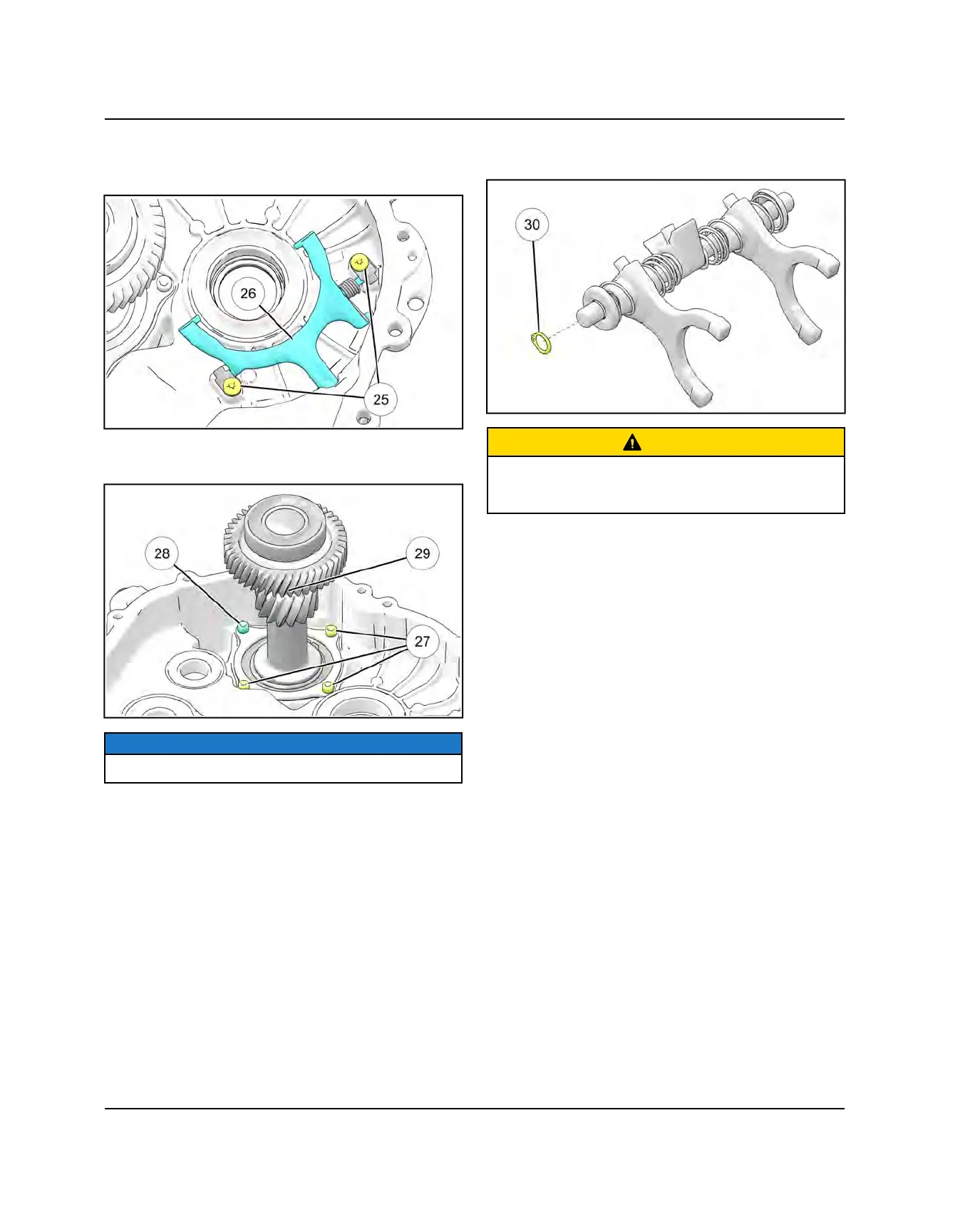

20.Remove two screws
2%
and retaining plates, then lift
shift fork
2^
and torsion spring out of transmission
housing.
21.Remove the screws
2&
that secure the pinion shaft
assembly.
NOTICE
Note the longer screw
2*
that locks the snorkel tube.
22.Lift the pinion shaft assembly
2(
straight up to remove
it from the housing.
23.Inspect all gear and shaft assemblies for damage.
24.Check the bearings for damage and that they are
easy to turn. Replace any questionable bearings.
25.To disassemble the shift shaft rail remove the snap
ring
3)
from the end of the shift rail on either side.
CAUTION
Use caution when disassembling the shift rail. The
compressed springs on the shift rail may pop off
causing eye or face injury.
26.Remove all seals from the gearcase halves and clean
the cases in preparation for assembly.
TRANSMISSION
