9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.11
ASSEMBLY VIEWS - STEERING / SUSPENSION GENERAL XP / GENERAL XP 4

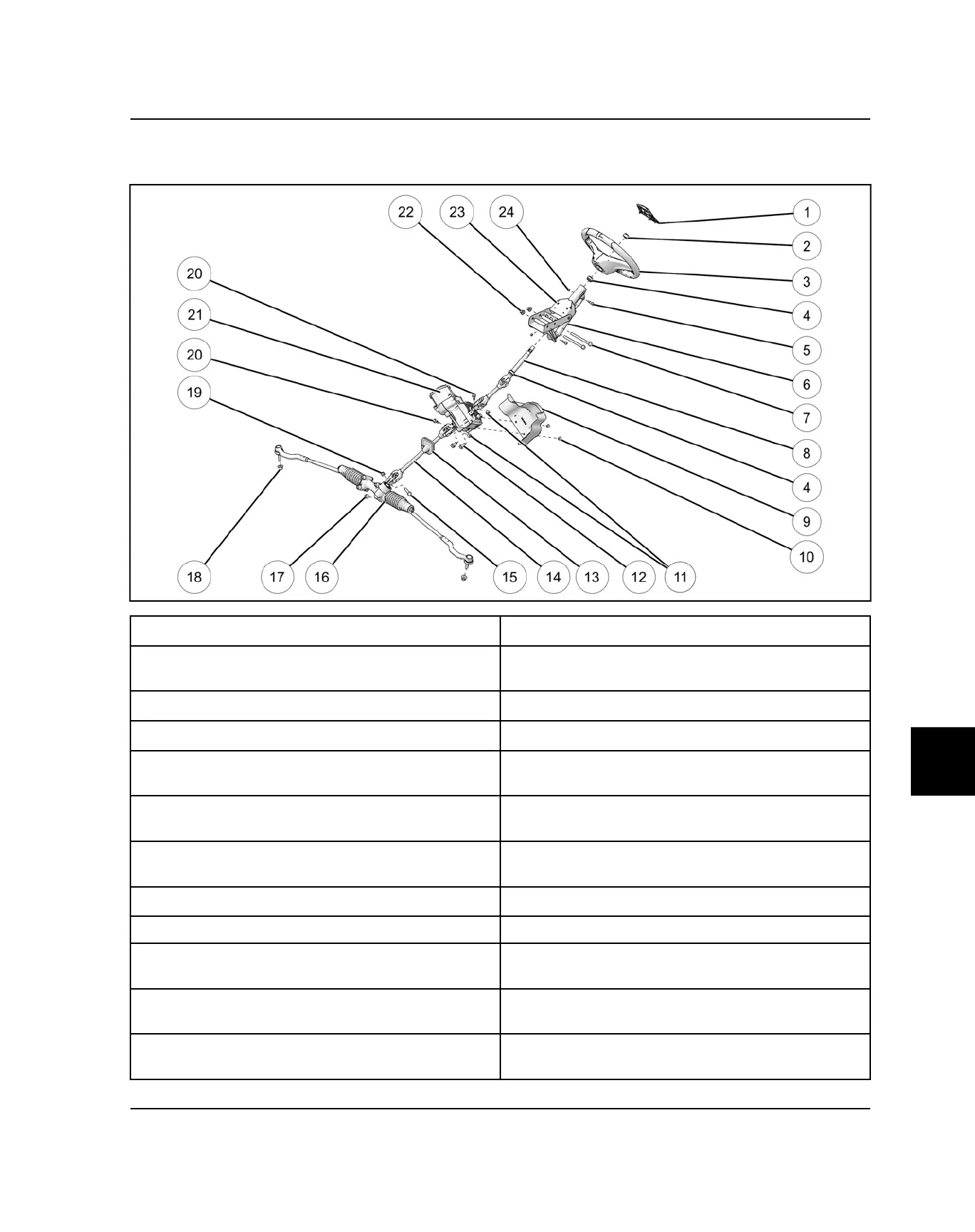

STEERING ASSEMBLY VIEW
q
Steering Wheel Cap
f
Steering Grommet
w
Steering Wheel Nut
65 lb-ft (88 Nm)
g
Steering Shaft, Lower
e
Steering Wheel
h
Lower Steering Shaft Pinch Bolt
r
Steering Bushing
j
Steering Rack
t
Tilt Steering Shock Mounting Fasteners
k
Steering Rack Fasteners
16 lb-ft (20 Nm)
y
Tilt Steering Shock
l
Nut
30 lb-ft (41 Nm) + 90°
u
Steering Tilt Assembly Fasteners
1(
Nut
48 lb-ft (65 Nm)
i
Steering Shaft, Upper
2)
Steering Shaft to Power Steering Pinch Bolt
o
EPS Cover
2!
EPS Unit
a
EPS Cover Fasteners
42 lb-in (5 Nm)
2@
Nut
40 lb-ft (54 Nm)
s
Nut
30 lb-ft (41 Nm)
2#
Tilt Steering Asm.
d
Power Steering Unit Fasteners
30 lb-ft (41 Nm)
2$
Nut
7 lb-ft (10 Nm)
STEERING / SUSPENSION
