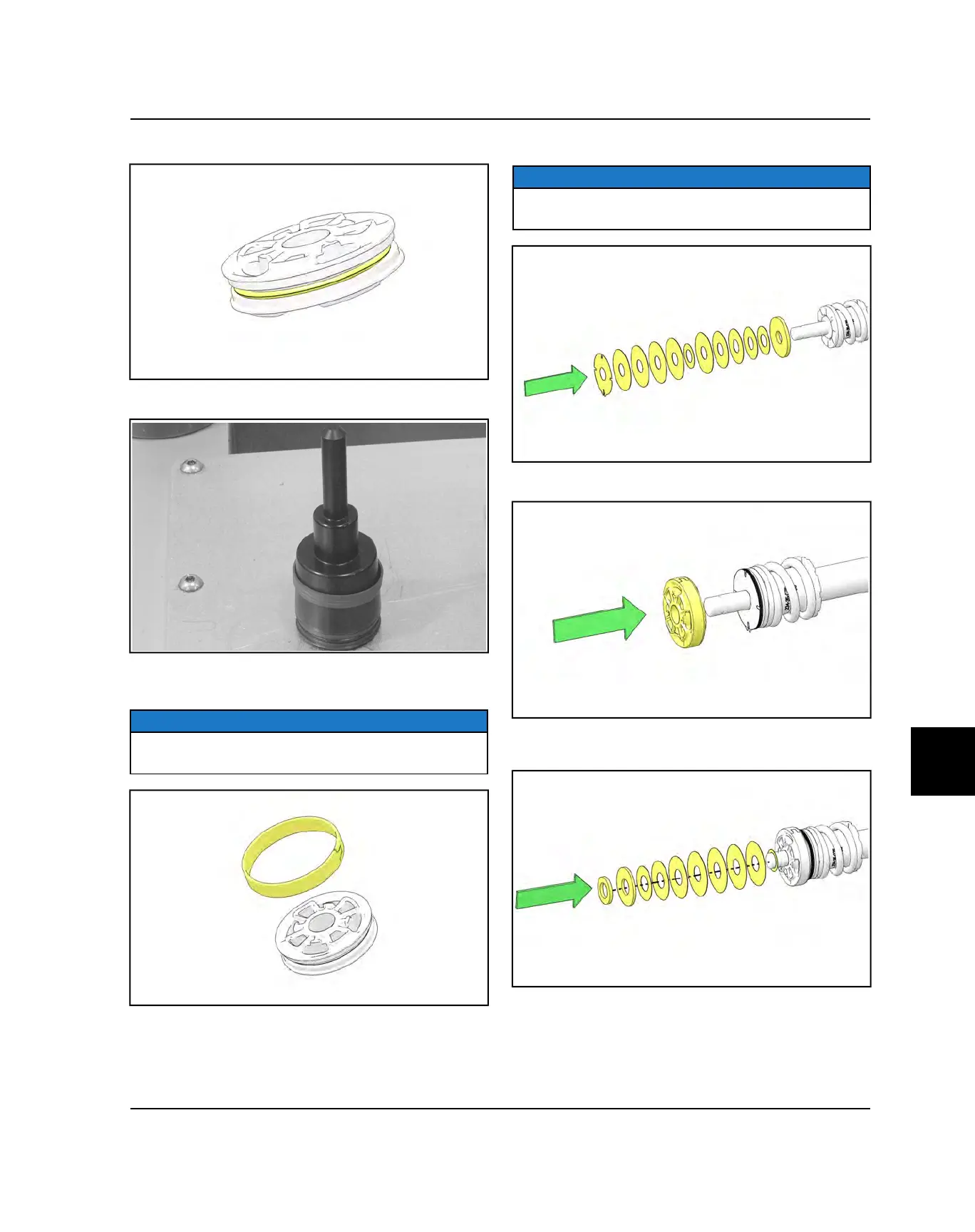

10.Install piston O-ring.
11. Install piston bearing on installation tool.
12.Place installation tool assembly on top of the piston
and push down to install bearing.
NOTICE
Bearing will be fully seated around piston when done
correctly.
13.Install compression side valve stack.
NOTICE
When installing bleed shim, ensure the tab is lined up
with compression port.
14.Install piston onto shock shaft.
15.Install rebound valve stack with required top out
washer.
