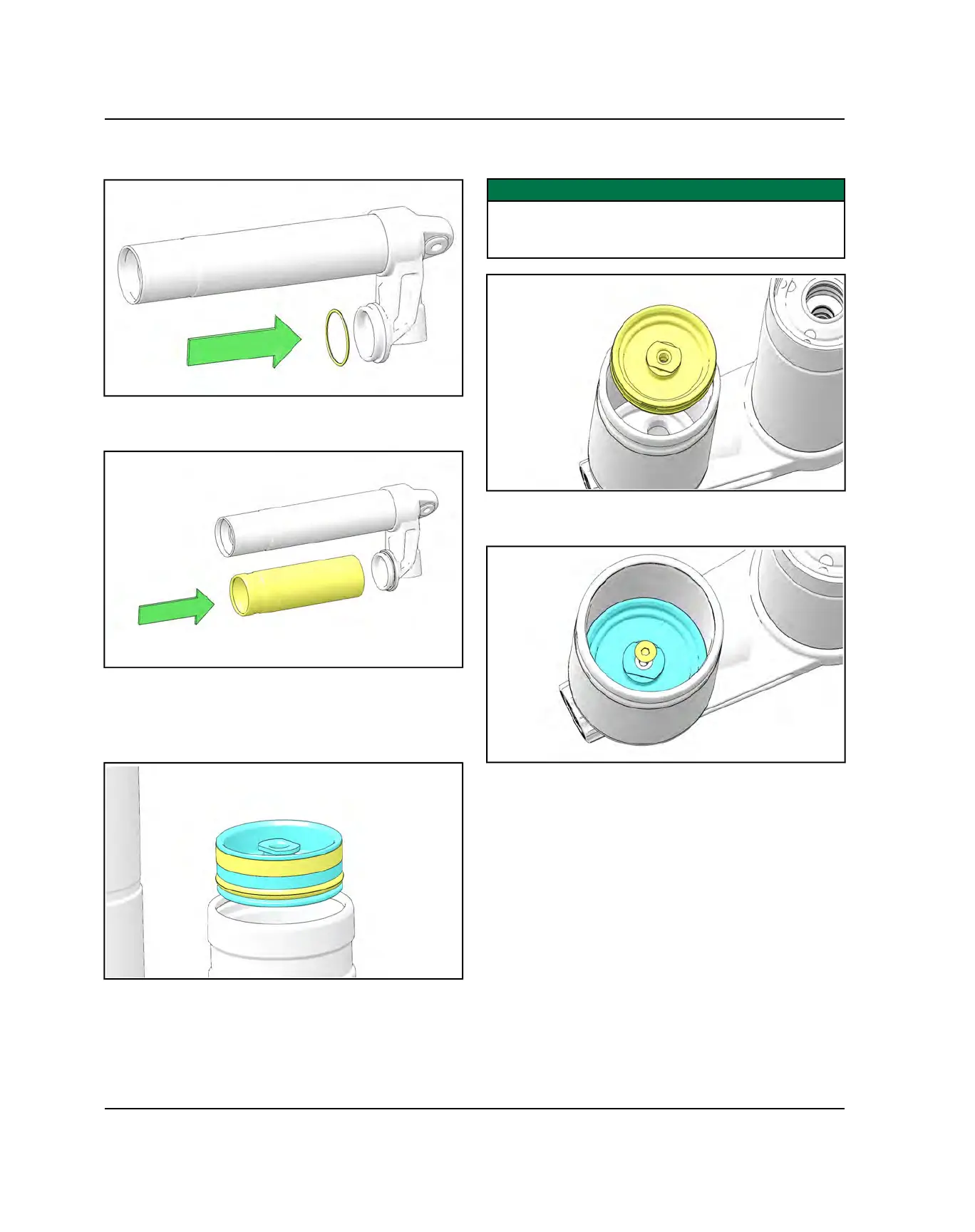

28.Install reservoir O-ring. Apply thin layer of shock oil to
O-ring.
29.Thread down reservoir with strap wrench and torque
to specification.
30.Ensure LSC or DSC high and low speed adjusters
are fully open and then fill the reservoir with oil.
31.Install IFP bearing and O-ring on the IFP and apply a
thin layer of shock oil to bearing and O-ring.
32.Install IFP assembly without bleed screw using the
IFP installation tool.
IMPORTANT
Push IFP into reservoir about 1.500″ with hand on top
of tool. If you do not place hand on top of tool, you will
be wearing oil.
33.Ensure oil is 0.250″ above IFP and install bleed screw
with O-ring.
34.Fill shock body with oil about 0.750″ from top, or
about 1.250″ from top on cup shocks.
35.Quickly pass a propane torch over oil to eliminate any
micro air bubbles.
