9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.77

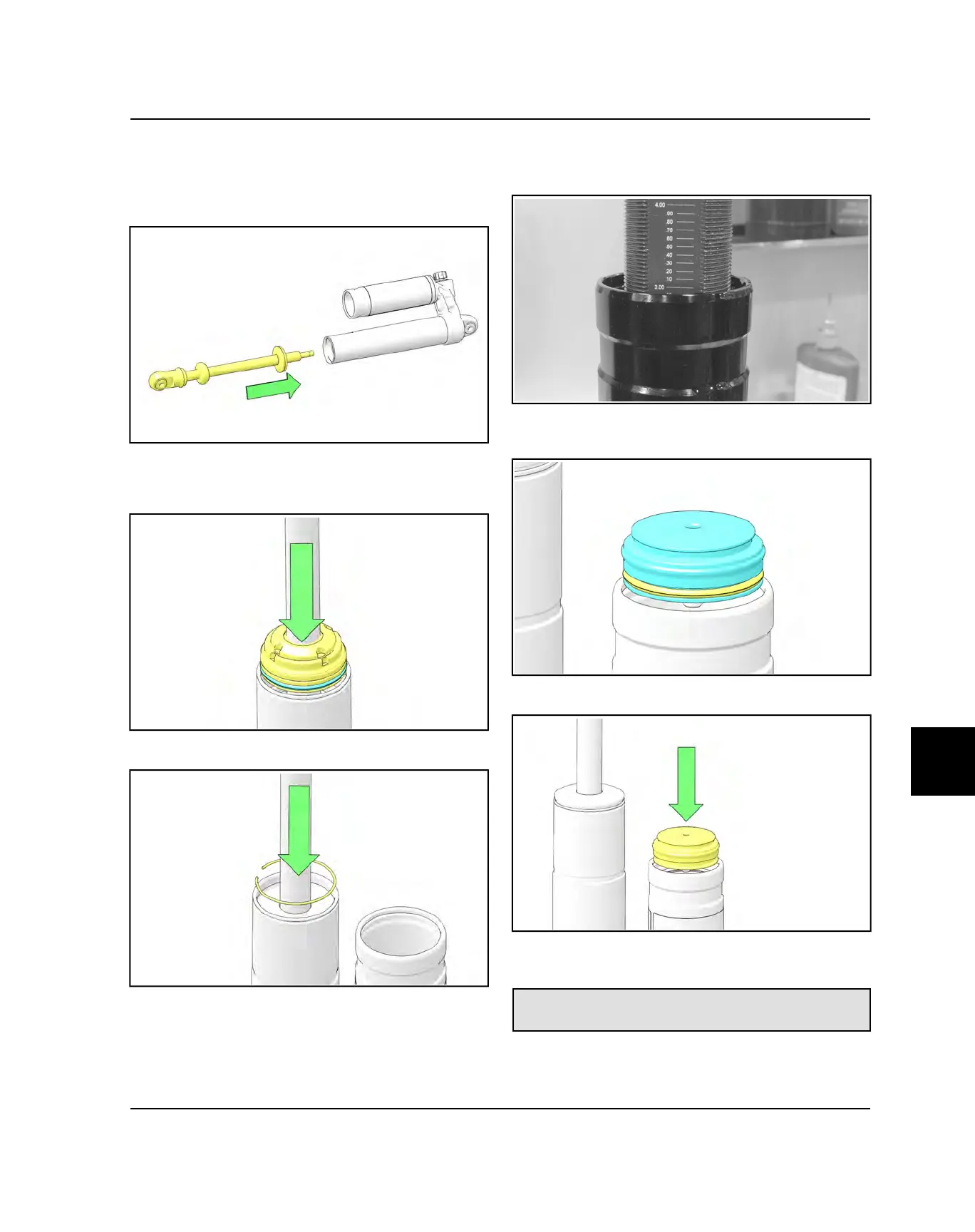

36.Install the shock shaft assembly so the piston
assembly is just below the retaining ring groove in the
body. Slowly compress the bearing assembly to
release any air that may be trapped below the
bearing assembly.
37.Apply a thin layer of shock oil to the bearing
assembly’s external O-ring. Push bearing assembly
in with your finger tips.
38.Install retaining ring.
39.Use IFP tool to push down on IFP and fully extend the
shock shaft assembly.
40.Remove bleed screw and set IFP to the appropriate
height. While holding the IFP, install bleed screw with
O-ring using a 9/16″ open end wrench.
41.Install reservoir cap O-ring on cap and apply a thin
layer of shock oil to side and O-ring.
42.Install reservoir cap and retaining ring.
43.With shock shaft fully extended, charge reservoir to
the appropriate nitrogen pressure.
Shock Charge Pressure:
100 PSI (690 kPa)
STEERING / SUSPENSION
